Pos: 32.75 /Überschriften/Überschriften 3/A-E/B/Bei Ausführung Zinkenarm klappbar @ 77\mod_1310050676669_78.docx @ 667550 @ 3 @ 1
9.9.2

For design with collapsible tine arm

Pos: 32.76 /BA/Bedienung /Schwader/Zinken / Zinkenarme/Zinkenarme in Transportstellung schwenken TC 680_760 und TS-Maschinen @ 365\mod_1441010465265_78.docx @ 2685765 @ @ 1
2

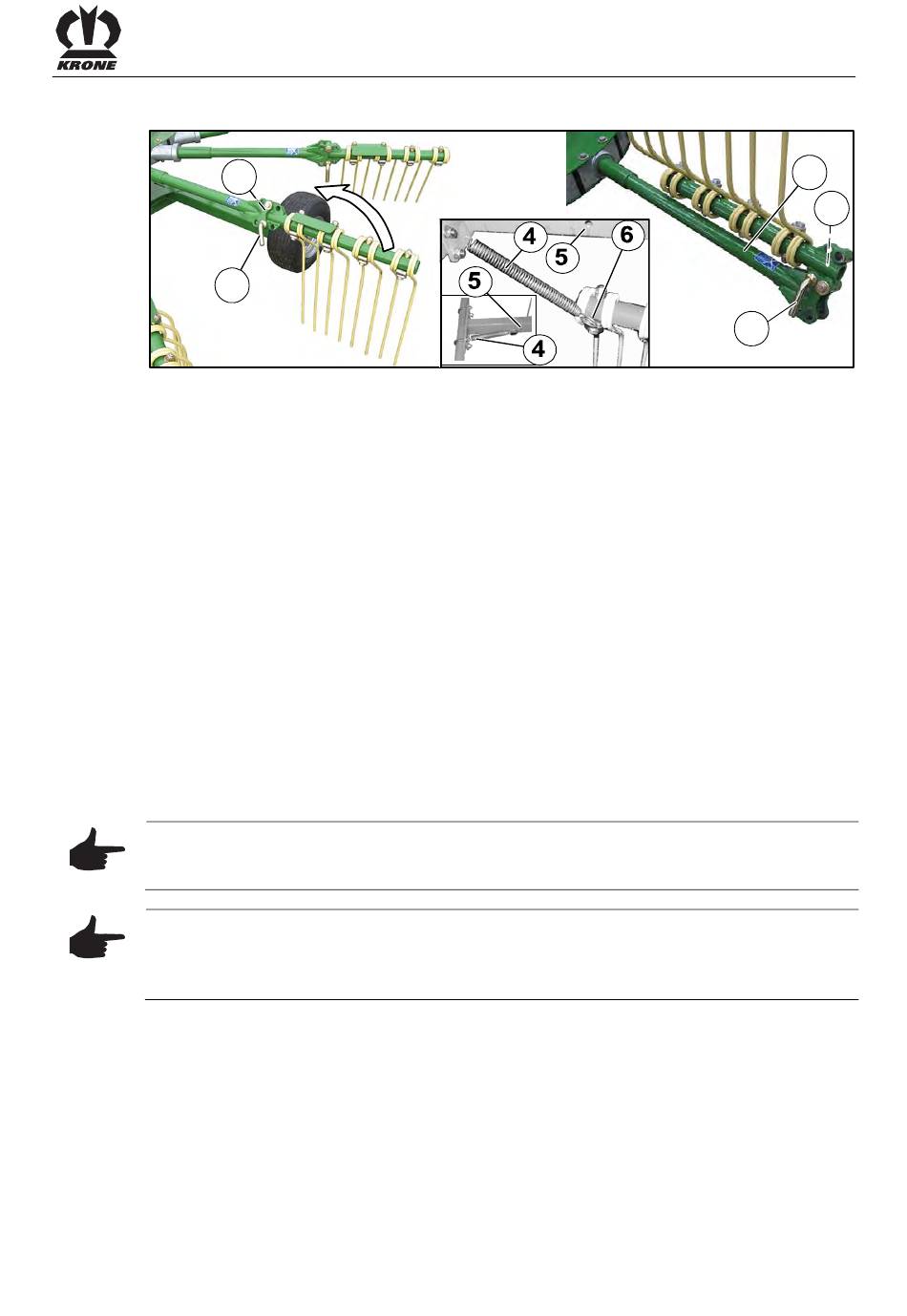

Fig. 46
At first:
Turn the left rotor far enough so that the folding tine arms are extended outwardly.
Pull linch pin (1).
Pull out bolt (2).
Swivel tine arms (3) to transport position; when turning the rotor, ensure that the swivelling
tine arms do not collide with the guard.
Insert bolt (2) and secure with linch pin (1).
To prevent the rotors from turning, unhook the tension spring (4) from the fastening hole (5)
and hook it on the tine (6) (rotor locking device, if necessary).
Then:
Turn the right rotor far enough in the working direction until the folding tine arms are
extended outwardly, as well.
Pull linch pin (1).
Pull out bolts (2).
Swivel tine arms (3) to transport position; when turning the rotor, ensure that the swivelling
tine arms do not collide with the guard.
Insert bolt (2) and secure with linch pin (1).
To prevent the rotors from turning, unhook the tension spring (4) from the fastening hole (5)
and hook it on the tine (6) (rotor locking device, if necessary).
Note
Check whether the folding tine arms (3) of both rotors are extended outwards. If necessary,
move the rotors to the correct position.
Note
Swivel the right folding tine arms on the machine side in sequence from the front backwards
and the left folding tine arms on the machine side in sequence from the back forwards to the
transport position.
Pos: 32.77 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
1
Operation
3
1
2
SW9070080
77
