11.2

Fixing the Trailing Guide Wheels

Pos: 36.9 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Festsetzen der nachlaufenden Tasträder_Bild @ 305\mod_1415610205927_78.docx @ 2370211 @ @ 1

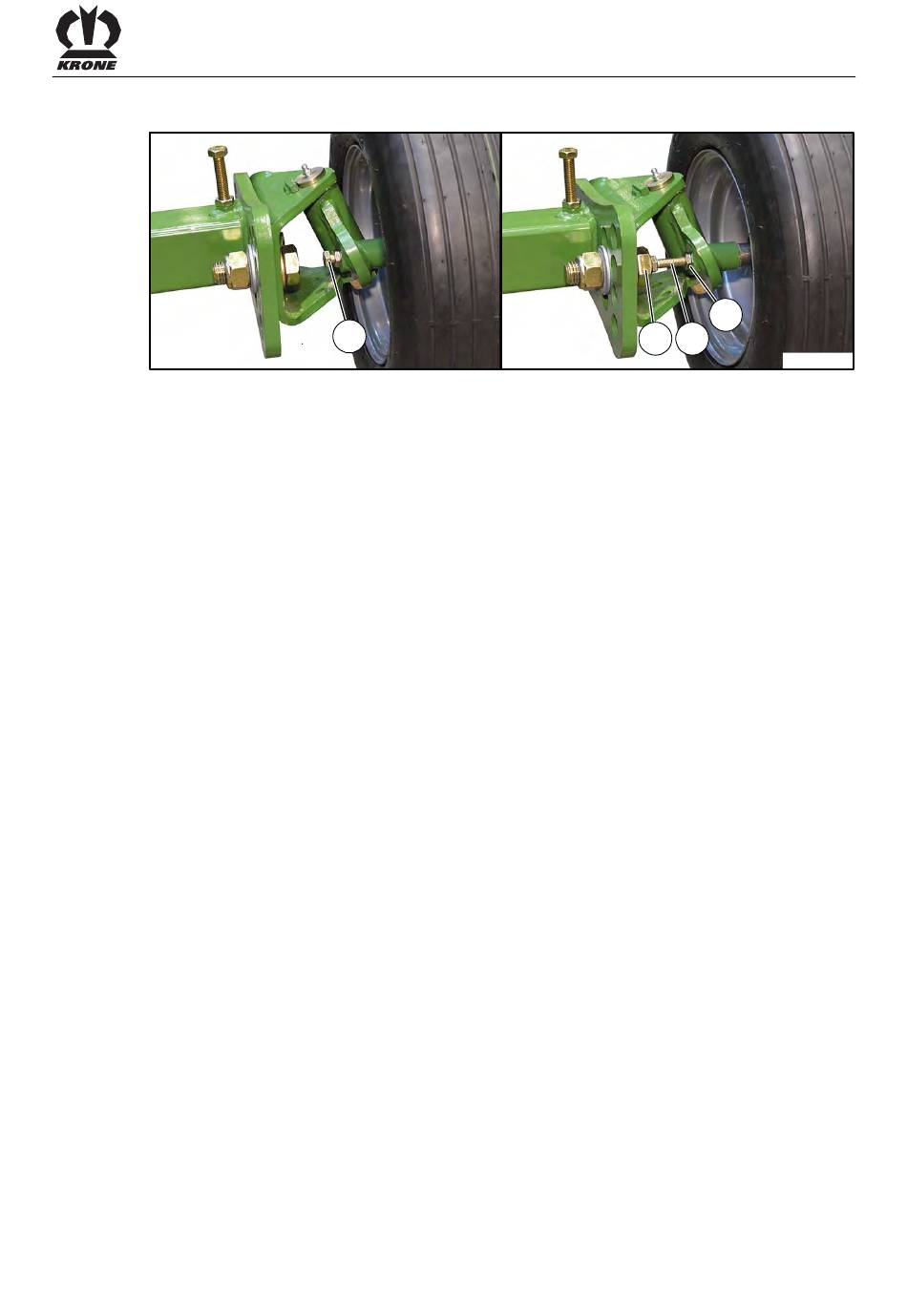

Fig. 62
Pos: 36.10 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Festsetzen der nachlaufenden Tasträder_Text @ 305\mod_1415605983523_78.docx @ 2370181 @ @ 1
In order to prevent the machine from drifting off when driving on the slope, fix the trailing guide
wheels.
To do this:
• Loosen counter nut (5).
• Press guide wheel to the outside until the stop is reached and hold it.
• Unscrew the screw (4) until it rests against the screw (3).
• Tighten counter nut (5).
Pos: 36.11 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
4
Settings
5
3 4
SW700095
95
