11.6

Setting of tines

Pos: 36.29 /Überschriften/Zwischenüberschriften/A-E/Bei Ausführung "Zusatzkreisel" @ 504\mod_1498545699491_78.docx @ 3472908 @ @ 1
For version with "additional rotor"
Pos: 36.30 /BA/Einstellungen/Wender/Zinkeneinstellung_Text @ 279\mod_1405414881295_78.docx @ 2151495 @ @ 1

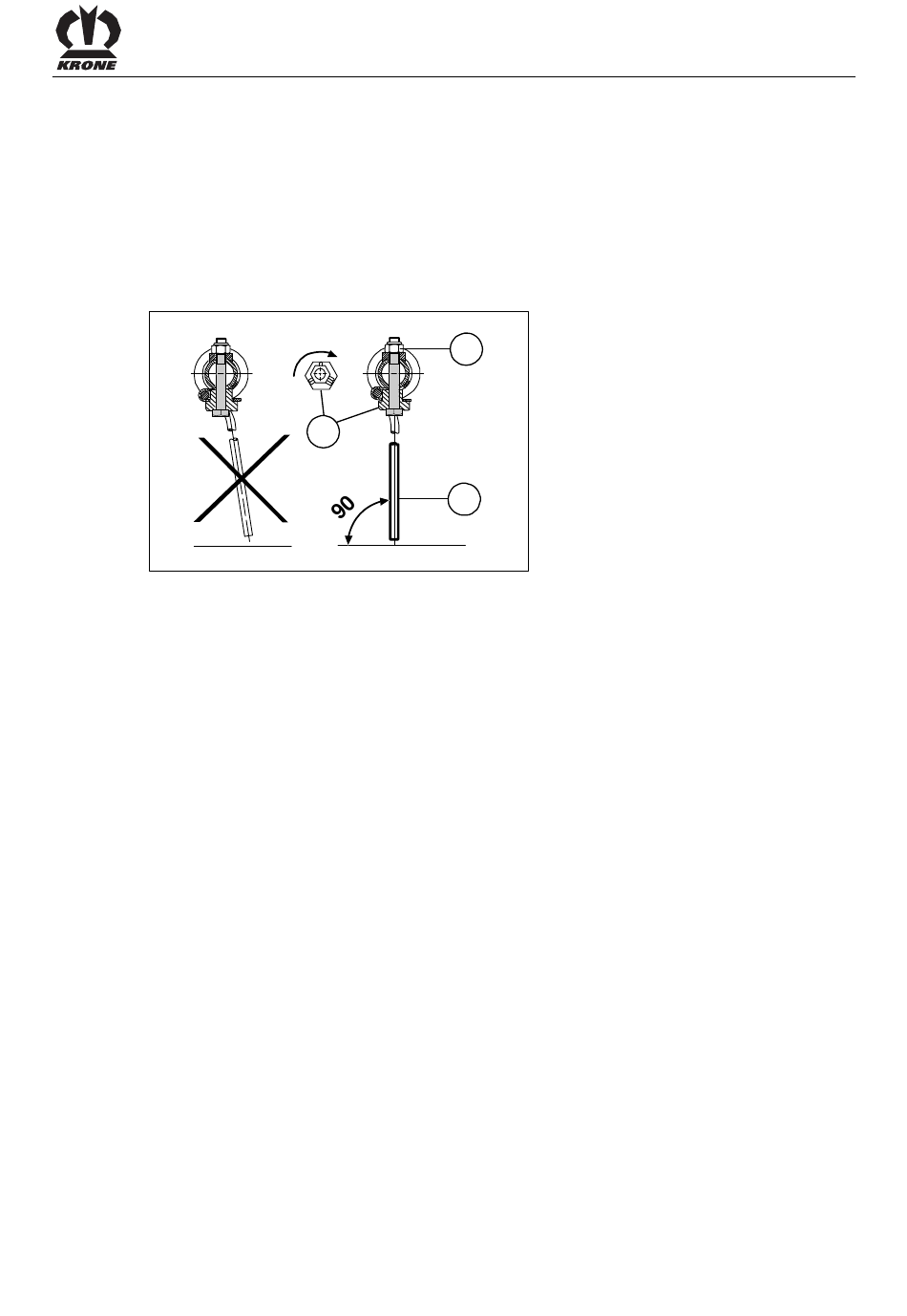

The tines (3) must be aligned vertically to the surface. The setting of the tines can be changed
by turning the eccentrics.
For setting:
• Unscrew fastening screw (1)
• Turn eccentrics (2) one level further
• Tighten the fastening screw to 95 Nm
Pos: 36.31 /BA/Einstellungen/Wender/Zinkeneinstellung_Bild @ 279\mod_1405414876433_78.docx @ 2151465 @ @ 1
Fig. 66
Pos: 37 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
1
2
3
KW-1-058
