Move The Hoop Guards To Transport Position - Krone Swadro TC 680 Original Operating Instructions

Pos: 32.64 /Überschriften/Überschriften 2/P-T/SSchutzbügel in Transportstellung bringen @ 2\mod_1202975248858_78.docx @ 63516 @ 2 @ 1
9.8

Move the hoop guards to transport position.

Pos: 32.65 /BA/Sicherheit/7. Gefahrenhinweise alt/WARNUNG - Quetschgefahr @ 2\mod_1202971999343_78.docx @ 63374 @ @ 1
Warning - Crush hazard!
Effect: Injury to hands
Do not hold onto hoop guards to swivel within range of the rotating points.

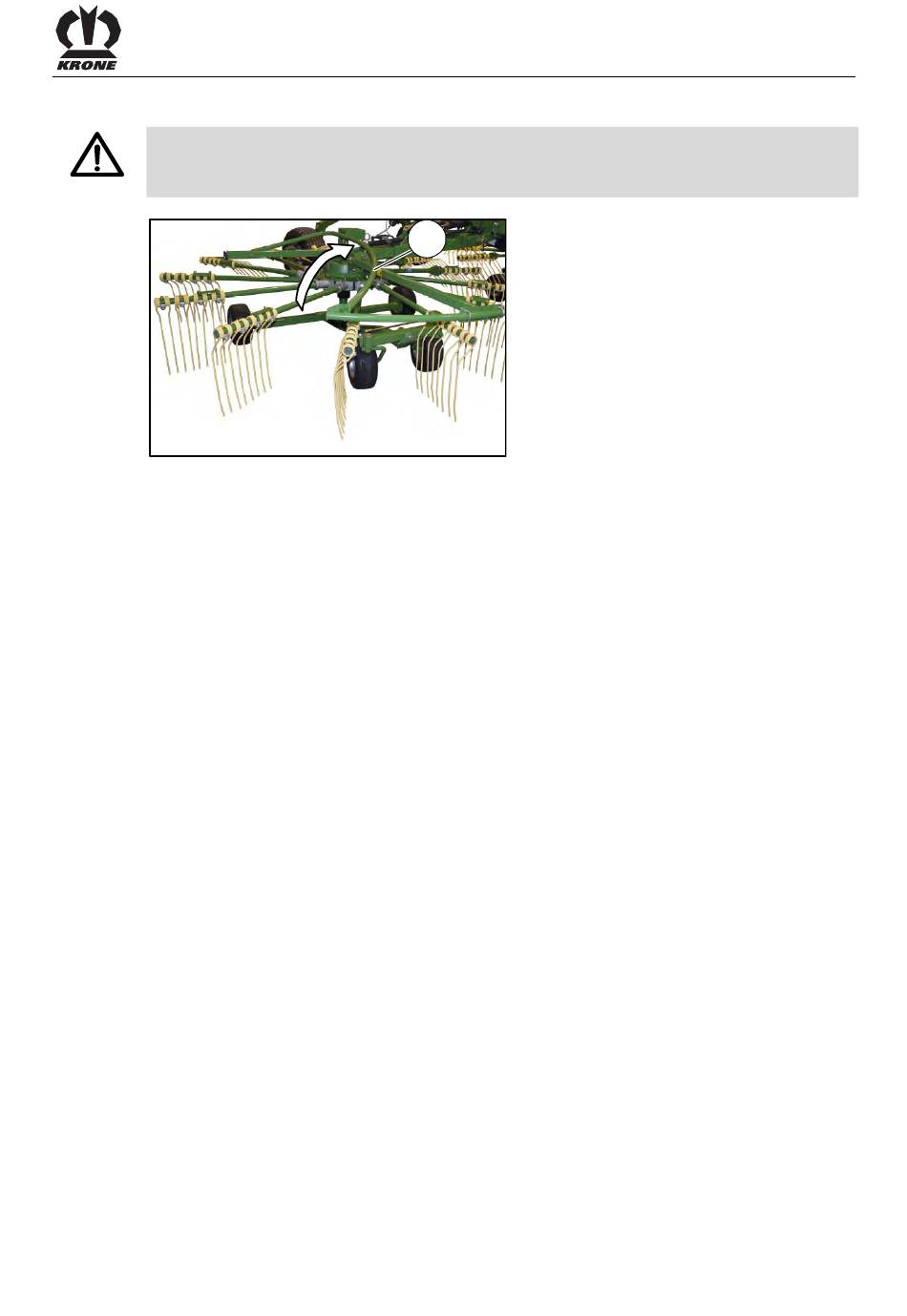

Pos: 32.66 /BA/Bedienung /Schwader/Schutzbügel/Schutzbügel in Transportstellung bringen Bild TC 680_760 @ 213\mod_1389938420161_78.docx @ 1747045 @ @ 1
Fig. 44
Pos: 32.67 /BA/Bedienung /Schwader/Schutzbügel/Schutzbügel in Transportstellung bringen Text SW700#_800#_900# @ 133\mod_1350286101208_78.docx @ 1181065 @ @ 1
• Lower rotor arms into working position.
• Turn off the tractor and secure it against the possibility of rolling back.
• Fold over the hoop guard (1) from working position to transport position.
