Special equipment

Pos: 42.1 /Überschriften/Überschriften 1/P-T/Sonderausstattung @ 2\mod_1202808469779_78.docx @ 61649 @ 1 @ 1
16
Special equipment
Pos: 42.2 /BA/Sicherheit/2. Vorangestellte Warnhinweise/WARNUNG - Nichtbeachtung der grundlegenden Sicherheitshinweise alte Form @ 254\mod_1397485793575_78.docx @ 1953347 @ @ 1
WARNING!
If the basic safety instructions are not followed, people may be seriously injured or
killed.
To avoid accidents, the basic safety instructions in the chapter Safety must have been
read and followed, see chapter Safety "Basic safety instructions".
Pos: 42.3 /BA/Sicherheit/2. Vorangestellte Warnhinweise/WARNUNG - Nichtbeachtung der Sicherheitsroutinen alte Form @ 273\mod_1404117435996_78.docx @ 2058712 @ @ 1
WARNING!
If the safety routines are not adhered to, people may be seriously injured or killed.
To avoid accidents, the safety routines in the chapter Safety must be read and followed,
see chapter Safety "Safety routines".
Pos: 42.4 /BA/Sonderausstatung/Schwader/Zinkenverlustsicherung @ 2\mod_1202806976420_78.docx @ 61592 @ 2 @ 1
16.1

Tine loss safeguard

5

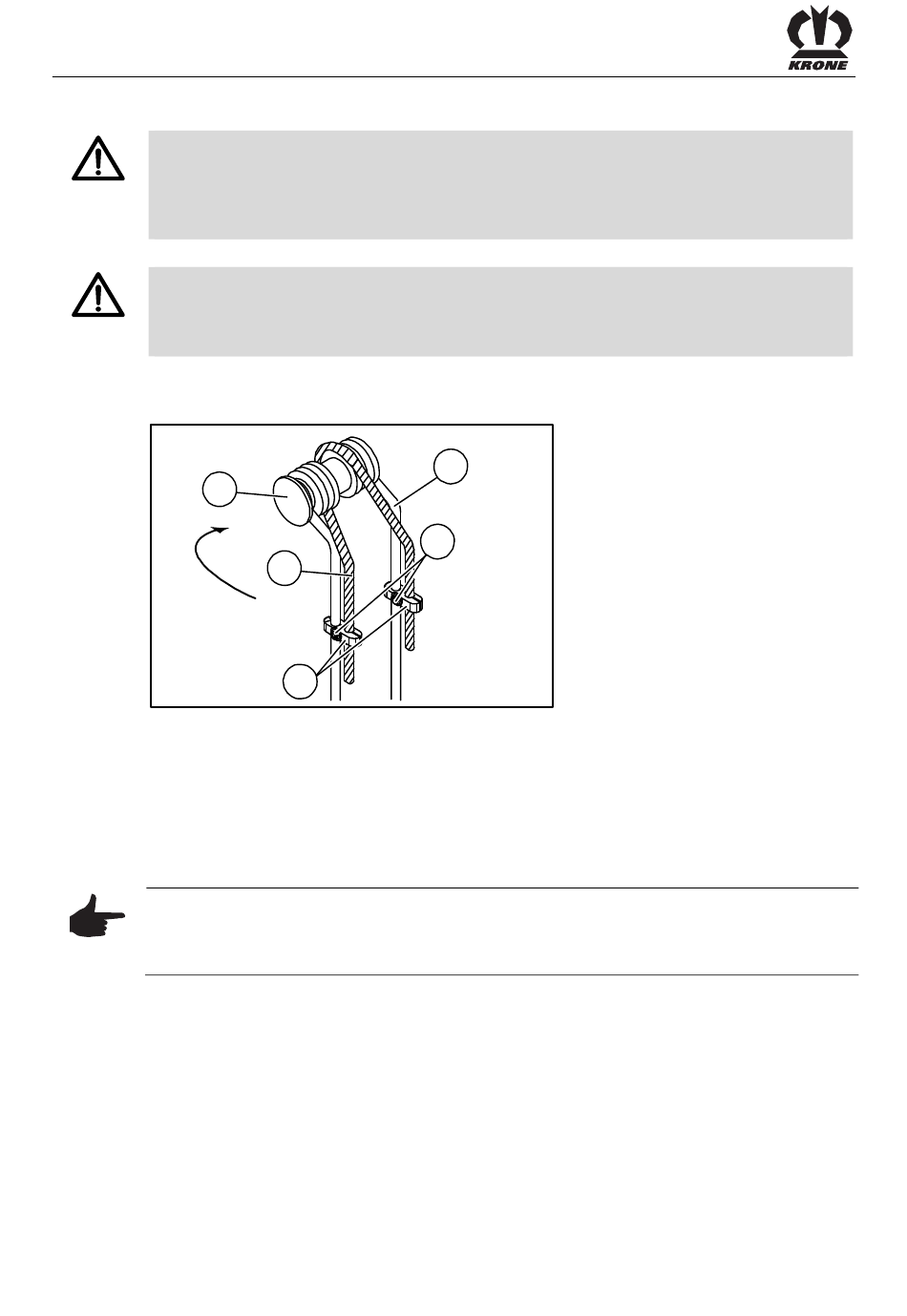

Figure 76
Mounting the tine loss safeguard
The tine loss safeguard for the double coil spring tines consists of:
a cable
two cable clamps
two coach bolts, washers and lock nuts each
Secure the cable (1) with the cable clamps (2) onto the rotor tines (3).
Note
Thecable must be located behind the rotor tine in relation to the direction of rotation. The nuts
(4) of the cable clamps must face outwards.
Spare tine loss safeguards Order No. : 153 479 0
