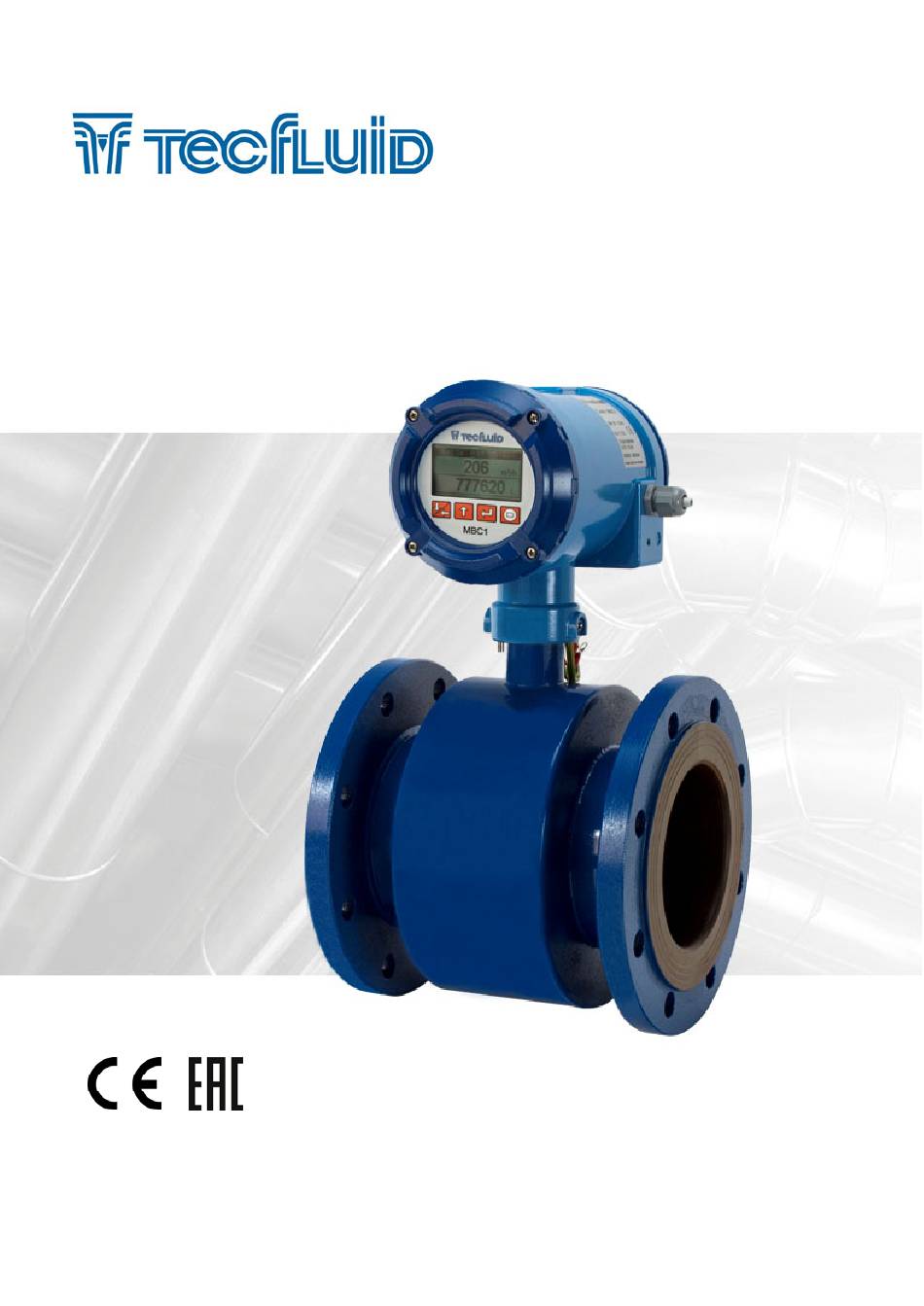

- Page 1 Instructions manual Series FLOMID Sensor FLOMID-FX Converter MBC1 The art of measuring R-MI-FIMBC1 Rev.: 0 english version...
- Page 2 PREFACE Thank you for choosing a product from Tecfluid S.A. This instruction manual allows installation, configuration, programming and maintenance. It is recommended to read it before using the equipment. WARNINGS • This document shall not be copied or disclosed in whole or in any part by any means, without the written permission of Tecfluid S.A.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SENSOR FLOMID-FX WORKING PRINCIPLE ..............RECEPTION ................. Unpacking ................Storage temperatures ............HANDLING ................... INSTALLATION ................Sensor position ..............Straight pipe sections ............Valves ................Pumps ................Aeration ................Reduction of DN ..............Vibrations ................Magnetic fields .............. - Page 4 INSTALLATION PARAMETERS ............Sensor factor ..............Converter factor ..............Nominal diameter ..............Diagnosis ................Reset totalizer ..............Date and time ..............Operation mode (only with battery power supply) ....CONVERTER PROGRAMMING ............Time between measurements ..........Units .................. Flow rate decimals .............. Flow rate ................
- Page 5 WORKING SCREEN ............... 10.1 Empty pipe ................. 10.2 Low voltage ............... 10.3 Open coil ................MAINTENANCE ................11.1 Fuse .................. 11.2 SD card ................11.3 Battery replacement ............ASSOCIATED SOFTWARE WINSMETER MBC1 ......12.1 USB cable connection and software installation ....12.2 Port connection ..............
-
Page 6: Working Principle
WORKING PRINCIPLE The FLOMID electromagnetic flowmeters converter are based on Faraday’s induction law. When an electrically conductive liquid flows through a magnetic field, perpendicular to the flow direction, it induces a voltage V proportional to the liquid velocity. Two electrodes in contact with the liquid and positioned perpendicularly to the magnetic field, sense this voltage V. -
Page 7: Handling
HANDLING It should always be done with care and without knocks. The large diameter sensors have rings for holding the elevation elements. If the flowmeter is held using slings, these should hold on the sensor and not on the electronics housing (see drawing). -
Page 8: Sensor Position
Sensor position The most adequate position is with the electrodes in a horizontal plane. In this way, deposits of particles on the electrodes are avoided. Straight pipe sections They are necessary before and after the sensor. The minimum distances are the following: Upstream 5 DN Downstream... -
Page 9: Valves
Valves Control valves or shut-off valves should always be installed downstream from the sensor to assure that the pipe is always full of liquid. Pumps Pumps should be mounted upstream from the sensor to avoid the suction of the pump (vacuum) that could damage the sensor liner. -
Page 10: Reduction Of Dn
Reduction of DN In installations where, due to reasons of the flow rate to be measured, a sensor of a smaller DN than the pipe DN must be mounted, the reduction must be done with an angle smaller than 4º to avoid turbulences that can give false readings. If the angle cannot be so small, straight pipe sections indicated in 4.2 point must be kept. -
Page 11: Magnetic Fields
Magnetic fields Strong magnetic fields close to the sensor should be avoided. Temperature In open air installations it is recommended to install a protection to avoid direct sun light on the flowmeter. With thermally insulated pipes DO NOT insulate the sensor. High temperatures can damage NOTE: High o very low temperatures shorten the battery life. -
Page 12: Mounting
MOUNTING Parallelism The maximum parallelism error must be less than 0.5 mm (Lmax—Lmin ≤ 0.5 mm). Gasket position In the wafer sensors, to avoid leakage of liquid inside the sensor, it must be ensured that the rubber gasket (A) of the figure is well centered, so that it presses directly on the plastic of the sensor. -
Page 13: Sensor Earth Connection
Sensor earth connection To obtain correct operation the sensor should have its functional earth connected to a point that is in direct contact with the liquid whose flow rate wants to be measured. The earth cables should assure a good electrical contact. To obtain this, they should be well screwed down and with a good contact on both sides of the sensor. -
Page 14: Tightening
Earthing rings are supplied in two versions: Metallic, disk in stainless steel EN 1.4404 (SS 316L), for liquids compatible with this material. Plastic, with an electrode to make the contact with the liquid. The materials (plastic and metal) depend on the working liquid. Dimensions in mm Metallic Plastic... -
Page 15: Mbc1 Converter
MBC1 CONVERTER INTRODUCTION The MBC1 converter unit can be used with the different FLOMID and FLOMAT series of electromagnetic flow sensors. The electronic circuit is based on the most advanced technology in digital signal processing, in order to obtain accurate and reliable measurements. -
Page 16: Electrical Connection (For External Power Supply)
Electrical connection (for external power supply) In case the MBC1 converter is used with external power instead of batteries, it is provided with a terminal strip. To make easy the connection, the description of the terminals is marked on the label on the back cover of the equipment. For the electrical installation it is recommended to use multiple conductor cables with individual cable sections in the order of 0.25 to 0.5 mm in order to make it easier to... -
Page 17: Digital Output Wiring
2.2.2 Digital output wiring Terminal Source output 1 Drain output 1 Source output 2 Drain output 2 Outputs are N-channel MOSFET transistor isolated from the rest of the circuit and potential free. (see characteristics on page 48). Example of the connection of the alarm output to a PLC (PNP input) -
Page 18: Modbus Wiring
2.2.3 Modbus wiring The recommended cable is a hose with three cables plus a shield. These cables must have a characteristic impedance of 120 Ω. Terminal Ground (GND) It is recommended to connect the shield to ground only at one end. The cable connection between the MBC1 converter and a Master is the following: MBC1 converter Master... -
Page 19: Converter Interface
CONVERTER INTERFACE The MBC1 converter has a graphic LCD and a keyboard with 4 push buttons. The keyboard has four keys to introduce the values of installation and programming. Two of these keys are used also as cursors. The following figure shows the functionality of the converter keys. (Down / Left) To switch between flow rate, totalizer and flow rate / total screens. -
Page 20: Main Menu
If the equipment has external power, the working screen will appear directly. If the equipment is powered by batteries, the display will be off, and by pressing the (Escape) key for one second, the working screen will appear. Select the "ON" option and press the (Enter) key. The instrument will be ready for use. To return to the OFF mode, see point 6.7 on page 25. - Page 21 To change any of these passwords, it is necessary to enter the corresponding menu and once inside, access the submenu "Password". To change the access password of To change the access password of installation menu, select programming menu, select "Installation" on the main menu and "Programming"...
- Page 22 the re-entered password does not match the first one, the following error message appears and the process should be carried out again. If both passwords match, the following information message is displayed. If the password needs to be changed or disabled, the procedure is the same. Once entered the "Password"...
-
Page 23: Installation Parameters
INSTALLATION PARAMETERS Press the (Enter) key in order to enter the main menu. Again with the (Enter) key, select “Installation”. If the instrument has a password enabled, it must be entered to access the menu. For more details about the password, see point 5.1 on page 20. Once in the “Installation”... -
Page 24: Converter Factor
Converter factor The electronic converter factor is shown. It should coincide with the Fe parameter on the converter label. Nominal diameter The value of the nominal diameter is always the internal diameter of the sensor. Diagnosis It allows to test the digital outputs. Pressing the key (Enter) when Digital 1 or Digital 2 are selected, this output will be activated or deactivated. -
Page 25: Date And Time
Date and time This screen allows to set the date and time. This data is necessary for the registration of values in the SD card (datalogger). To set the date, the format is day / month / year, where the year is two figures to add to 2000. -
Page 26: Time Between Measurements
With the keys (Down / Left) and (Up), select Programming, and then validate with the key (Enter). If the instrument has an enabled password, it must be entered to access the menu. For more details about the password,, see section 5.1 on page 20. Once in the “Programming”... -
Page 27: Units
Units In this screen the flow rate and the totalizer can be chosen independently. Flow rate decimals In this screen the number of decimals for the flow rate indication can be selected. To select the number of decimals it must be taken into account that the instrument has 5 digits for flow rate indication. -
Page 28: Flow Rate
For the selection of the flow rate units and the number of decimals it must be taken into account that an indication with an excess of decimals may give the sensation of instability of the reading. As a general rule it can be considered that the reading should not have more than a total of 5 digits (integer + decimals). -
Page 29: Offset
The configuration of this filter can be very useful in the cases where the flow rate readings have some instability (due to air bubbles, solids in suspension, etc. Only the flow rate indication of the display is affected by the filter. The digital outputs and the totalizer act according to the non-filtered flow rate. -
Page 30: Digital Outputs (Only With External Power Supply)
Digital outputs (only with external power supply) This screen allows to program the two digital outputs of the instrument. By selecting one of the two outputs, the options for each of them appear on the next screen. 7.5.1 Flow rate alarm If Alarm is selected, the flow rate at which the outputs will change its status and the level of hysteresis can be programmed. -
Page 31: Empty Pipe
Example 1 If the output is programmed to activate at 100 m /h and to deactivate at 90 m /h, when the flow rate is zero the output will be deactivated. When the flow rate reaches a value of 100 /h the output will be activated and it will not return to deactivated state until the level falls below 90 m Example 2... -
Page 32: Datalogger
Datalogger The converter has an SD card module to store the progress of the different variables of the equipment. The time interval between writes on the card can be programmed. The flow rate recorded on the SD card is the filtered flow value. For more details about the SD card, see point 11.2 on page 36. -
Page 33: Slave Address
7.8.1 Slave address In this screen the slave address can be assigned to the converter. This address must be unique, that is, no other slave devices in the bus can have the same number. 7.8.2 Baud rate It determines the data transmission speed. All the devices in the bus have to be configured with the same baud rate. -
Page 34: Timeout
7.8.5 Timeout It is the minimum time between frames. Default value is 20 ms. In this screen a different value can be programmed. Once the previous steps are done, a communication with a master can be established. Detailed information on the protocol can be found in the R-IT-MBC1COM instructions manual, that can be downloaded from Tecfluid S.A. -
Page 35: Empty Pipe
To scroll between the three operating screens, press the key (Down / Left) or (Up). 10.1 Empty pipe When the converter detects empty pipe, it will stop reading and it will display the message on the screen. 10.2 Low voltage When the converter detects that the supply voltage is too low for the correct operation of the equipment, whether it is powered by batteries or by an external source, it will flash the message. -
Page 36: Maintenance
MAINTENANCE For external cleaning, a humid cloth can be used, and if necessary with a little neutral soap. Solvents or other aggressive liquids which could damage the housing material should not be used. 11.1 Fuse In the event that the fuse blows, this should be replaced with a slow blow “T” fuse, size Ø5 x 20 mm and value 250 mA. -
Page 37: Battery Replacement
11.3 Battery replacement Before replacing the batteries, disconnect if there are all the cables from the rear terminal block. Once disconnected, access the operating mode menu and select OFF (see point 6.7 on page 25). To make the replacement, proceed according to the following points: Remove the four screws from the front ring and remove it. - Page 38 Slide out the electronic block. Remove the batteries. Replace them with the new ones and proceed in the same way in reverse order to assemble the components again. NOTE: If two batteries are placed instead of four, they will always be in the same battery compartment, that is, both batteries on the same side.
-
Page 39: Associated Software Winsmeter Mbc1
ASSOCIATED SOFTWARE WINSMETER MBC1 Most of the steps explained in the previous sections, can be done through the associated software, which allows to work in a more comfortable and intuitive way. Such software can be downloaded from the “Downloads” section of the Tecfluid S.A. www.tecfluid.com/downloads 12.1 USB cable connection and software installation... -
Page 40: Port Connection
Connect the USB cable at one end to the converter and at the other to the computer where the software is installed. Power on the electronic converter. Execute the program WinsmeterMBC1 following the sequence Start – Programs – Tecfluid S.A. - WinsmeterMBC1. -
Page 41: Password
12.3 Password The MBC1 converter can be locked so that programming data can be modified only with previous password access. When the converter is locked, data can be read but not modified. By default the device is unlocked. All data can be modified by means of the program Winsmeter MBC1. - Page 42 In the “Password” textbox a 4 numeric digit code should be entered, and in the “Confirm” textbox, the code is confirmed to avoid unintentional errors. Once the password is confirmed, press the “Lock” button and the section (“Installation” or “Programming”) will be locked. The text “Device locked”...
-
Page 43: Access To "Installation
12.4 Access to “Installation” To enter to “Installation” window, press the corresponding tab. Changing the parameters of this window, the functions of the equipment that affect the measurement can be programmed. Once the changes have been made, press the "Send" button to save all data into the device memory. -
Page 44: Visualization
To enter the Programming window, simply press the corresponding tab. Changing the parameters in this screen, the different functions of the equipment can be programmed. Once the changes are made, press the “Send” button to save all data into the device memory. The message "Saving program"... -
Page 45: Datalogger
The adjustment is made by accessing to “Offset” menu. The following window will appear: To correct the offset, the flow rate in the installation should be zero, that is, the liquid inside the pipe where the flowmeter is installed must be completely stopped. In addition, it must be ensured that the pipe is completely full of liquid so that this adjustment become effective. -
Page 46: Firmware Updates
The created file has CSV format, which can be viewed directly with a spreadsheet. 12.9 Firmware updates New firmware updates can be published in the website. These updates contain improvements or bug fixes that make that the equipment operates at best conditions. The updates can be downloaded from the following link of Tecfluid S.A. -
Page 47: 12.10 Configuration File
Progress bar will indicate the process, after which the message “Device programmed” will appear. From this moment, the MBC1 converter already has the new version of Firmware. 12.10 Configuration file A device configuration backup can be made by saving data into a file. To do this, go to menu “File”... -
Page 48: Technical Characteristics
TECHNICAL CHARACTERISTICS Accuracy ±0.5% reading value for v ≥ 0,4 m/s ±0.2 % reading value for v ≤ 0,4 m/s v (m/s) Repeatability ±0,14 % VFE. Time between measurements of 15s and a filter of 250 samples. Velocity range 0,1 ...10 m/s Temperature Process temperature: -10ºC …... - Page 49 Flow rate indication N. of digits: 5 (up to 2 decimals configurable)** Digit size: 11 mm ** When the available digits are full and the integers overflow a decimal is automatically lost. Datalogger By means of data writing into a SD card. Programmable time interval between writings.
-
Page 50: Safety Instructions
SAFETY INSTRUCTIONS The series FLOMID flowmeters are in conformity with all essential requirements of all EC directives applicable to them: 2014/68/EU Pressure equipment directive (PED) 2014/30/EU Electromagnetic compatibility directive (EMC) 2012/19/EU Waste electric and electronic equipment (WEEE). 2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment (ROHS). -
Page 51: Dimensions
DIMENSIONS FLOMID-0FX (EN 1092-1 wafer mounted) Weight (kg) 10.4 11.8 (All dimensions in mm) - Page 52 FLOMID-0FX ASME B16.5 150# wafer mounted Weight Class (kg) 1" 1¼" 1½" 2" 2½" 150# 3" 4" 5" 10.4 6" 11.8 (All dimensions in mm)
- Page 53 FLOMID-2FX (EN 1092-1 flanges) Weight l x n (kg) 14 x 4 18 x 4 18 x 4 18 x 4 10,5 18 x 8 12,0 18 x 8 14,0 18 x 8 18,0 18 x 8 20,0 22 x 8 23,0 34,0 22 x 8...
- Page 54 FLOMID-4FX (ASME B16.5 150# flanges) Weight Class l x n (kg) 1" 79.4 ” x 4 50.8 1¼" 88.9 ” x 4 63.5 1½" 98.4 ” x 4 73.0 2" 120.7 ¾" x 4 92.1 10,5 2½" 139.7 ¾" x 4 104.8 12,0 3"...
-
Page 55: Troubleshooting
TROUBLESHOOTING Problem Probable cause Solution Make sure that the pipe is completely full, for example, Pipe is empty installing the flowmeter in a vertical pipe with upwards flow Connect the functional ground of The functional earth is not the flowmeter to a metallic point of connected the installation in contact with the It apears the empty pipe... -
Page 56: Annex A Flow Rate Table
ANNEX A... - Page 60 WARRANTY Tecfluid S.A. guarantee all the products for a period of 24 months from their sale, against all faulty materials, manufacturing or performance. This warranty does not cover failures which might be imputed to misuse, use in an application different to that specified in the order, the result of service or modification carried out by personnel not authorized by Tecfluid S.A., wrong handling or accident.
