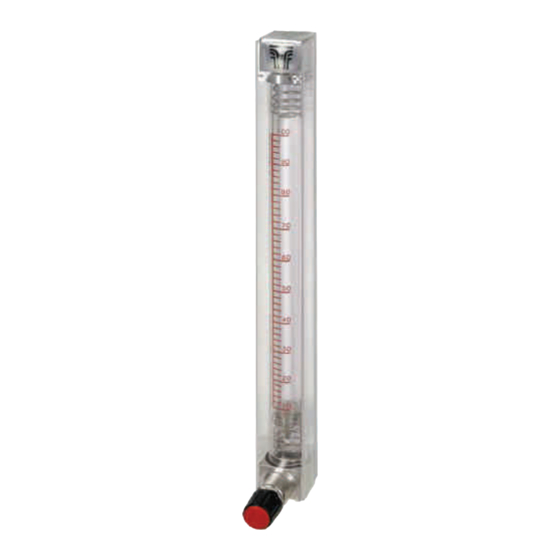

- Page 1 Variable Area Flowmeter Series instrumentation 2100 / 2150 / 2300 / 2340 for fluids Instructions Manual C-MI-01 Rev.:2 English version...
- Page 2 Working Principle Technical characteristics Precision according to VDE/VDI 3513: - 2100 ± 4% f. s. value Class 4 - 2150 ± 2,5% f. s. value Class 2,5 - 2300/2340 ± 1,6% f. s. value Class 1,6 Reading Standard Scales: - Water in l/h. Line - Air in Nl/h up to 700 Nl/h.
- Page 3 FLOW RATE READING Fo rma ECG Fo rma AC AC Shape ECG Shape The float determines the flow rate Reading Line Linea de le ctura measurement on the scale. For the different shapes of floats, the readings must be taken at the height shown in the drawing at the right.
- Page 4 WARRANTY TECFLUID guarantees all the products for a period of 24 months from their sale, against all faulty materials, manufacturing or performance. This warranty does not cover failures which might be imputed to misuse, use in an application different to that specified in the order, the result of service or modification carried out by personnel not authorized by Tecfluid, wrong handling or accident.
