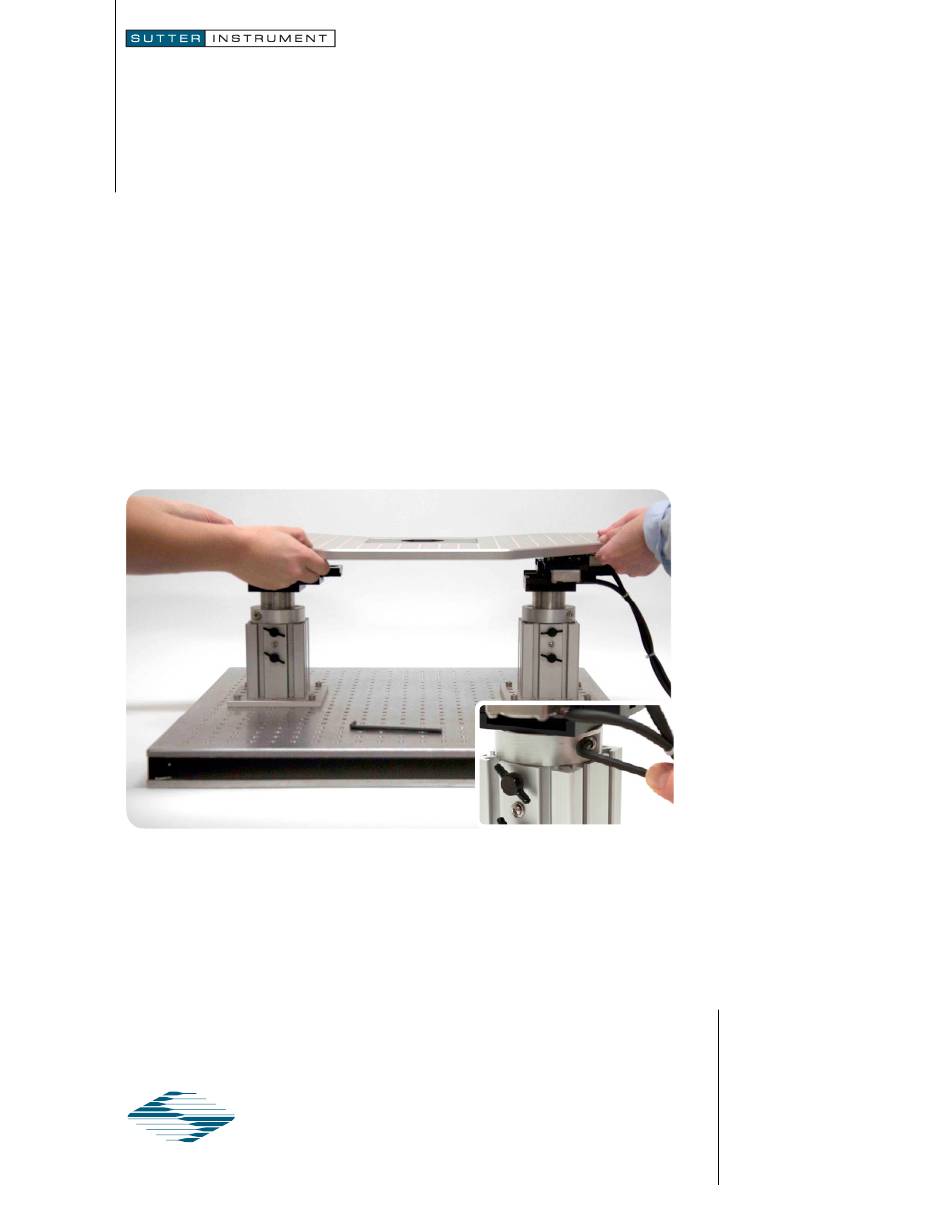

Adjust Height

It is not impossible that you may have arrived at this point only to
learn that your motorized stage is too high or too low through no
fault of your own. Take a deep breath and follow the steps below:
• If you are alone in the lab, call a friend. Adjusting the height is
easier and more fun with two people.
• Loosen the wing nut screws if in use. Then loosen collars screws
with a hex wrench to raise or lower the post.
• TIP! Gently wedge identical spacers (not provided) between the
collar and the manipulator to set the desired height.
• Retighten the collar screws and remove spacers.
