4
Orientation of Stands

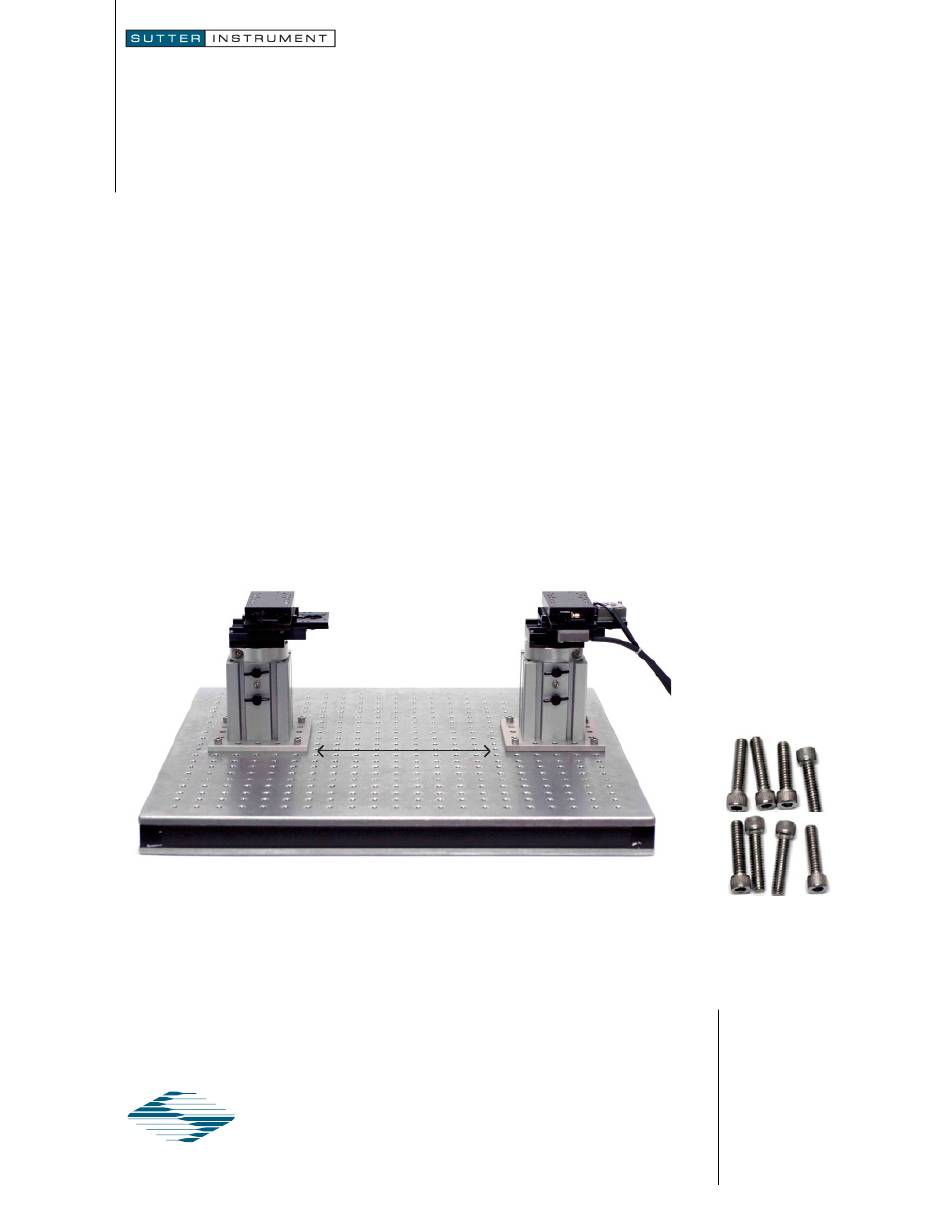

• Place the left and right manipulators on the board with black
cap wing nuts facing forward as shown in the photo below.
• Secure stands to base using hardware labeled "Base Plate
Mounting Hardware". Both standard (1/4-20 x 3/4) and metric
(M6 x 20) socket head cap screws are provided. Use (4) each
base.
• Important! Leave ten empty holes between the two bases. This
assures that the top plate of the motorized stage will match up
with the manipulators and full range of travel will be achieved.
Assembly Guide
10 HOLES
Large Moving Stage Platform
(8) 1/4-20x3/4
