Square Manipulators
• Square both manipulators before attaching the top plate.

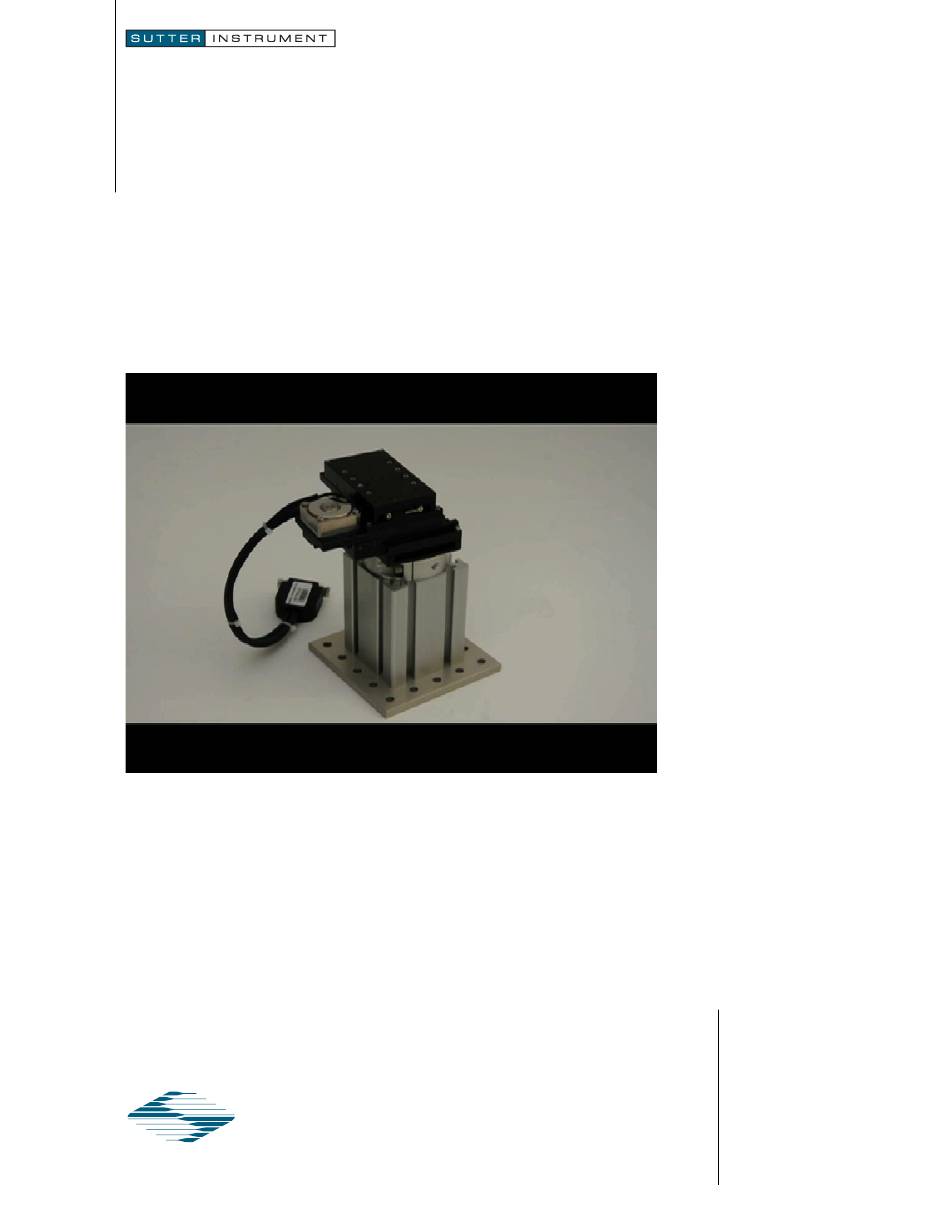

Click on image to active "how to" video.
• Gently set the assembled manipulator on a flat surface with the
wing-nuts facing up.
• Slowly loosen the wing nuts to release the post inside the stand.
The manipulator on the post will rotate and "square" with the
base plate.
• Lock in the adjustment by tightening the wing nuts.
• Return manipulators to standing position.
