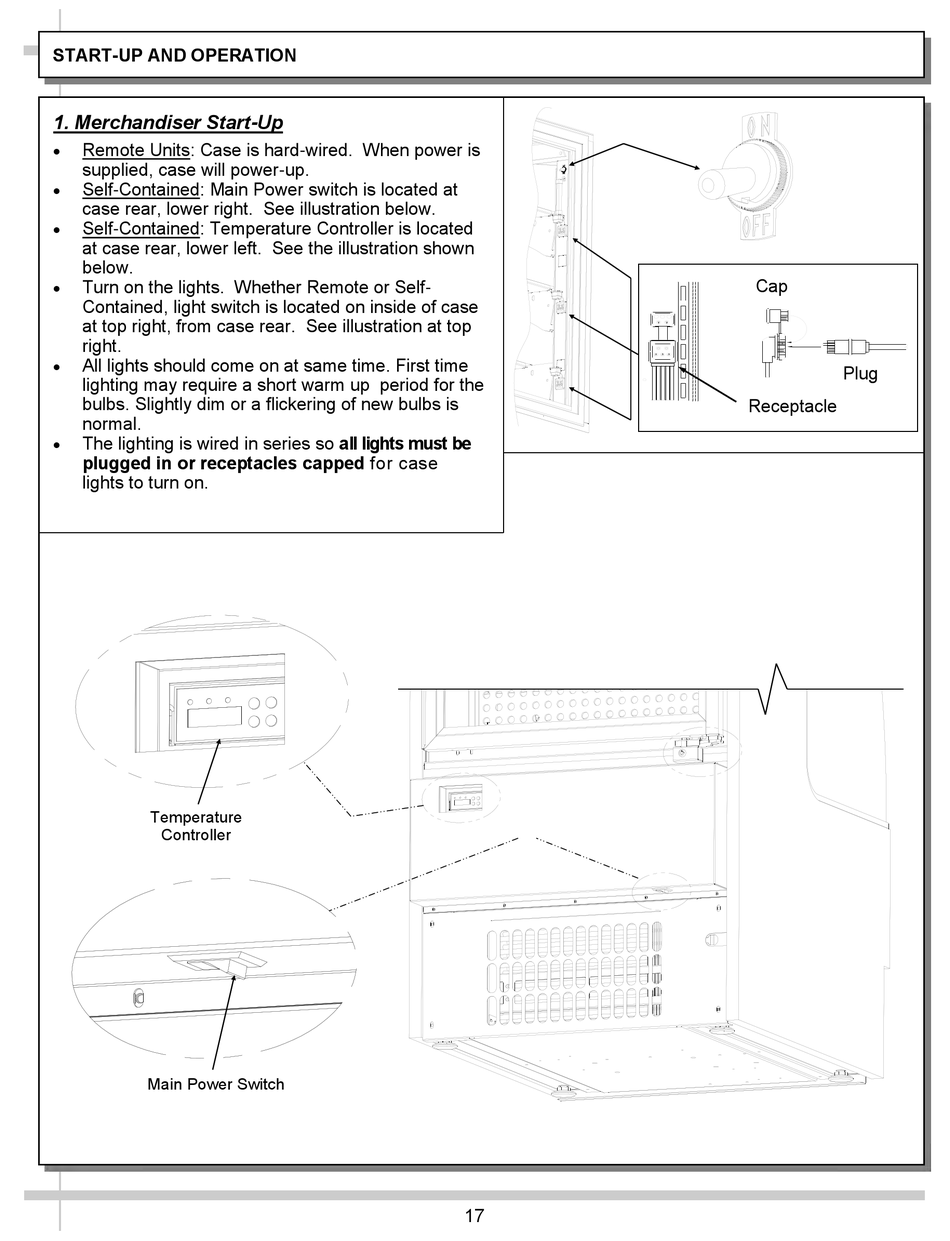

START-UP AND OPERATION

1. Merchandiser Start-Up
 Remote Units: Case is hard-wired. When power is
supplied, case will power-up.
 Self-Contained: Main Power switch is located at
case rear, lower right. See illustration below.
 Self-Contained: Temperature Controller is located
at case rear, lower left. See the illustration shown
below.
 Turn on the lights. Whether Remote or Self-
Contained, light switch is located on inside of case
at top right, from case rear. See illustration at top
right.
 All lights should come on at same time. First time
lighting may require a short warm up period for the
bulbs. Slightly dim or a flickering of new bulbs is
normal.
 The lighting is wired in series so all lights must be
plugged in or receptacles capped for case
lights to turn on.
Temperature
Controller
Main Power Switch
17
Cap
Plug
Receptacle
