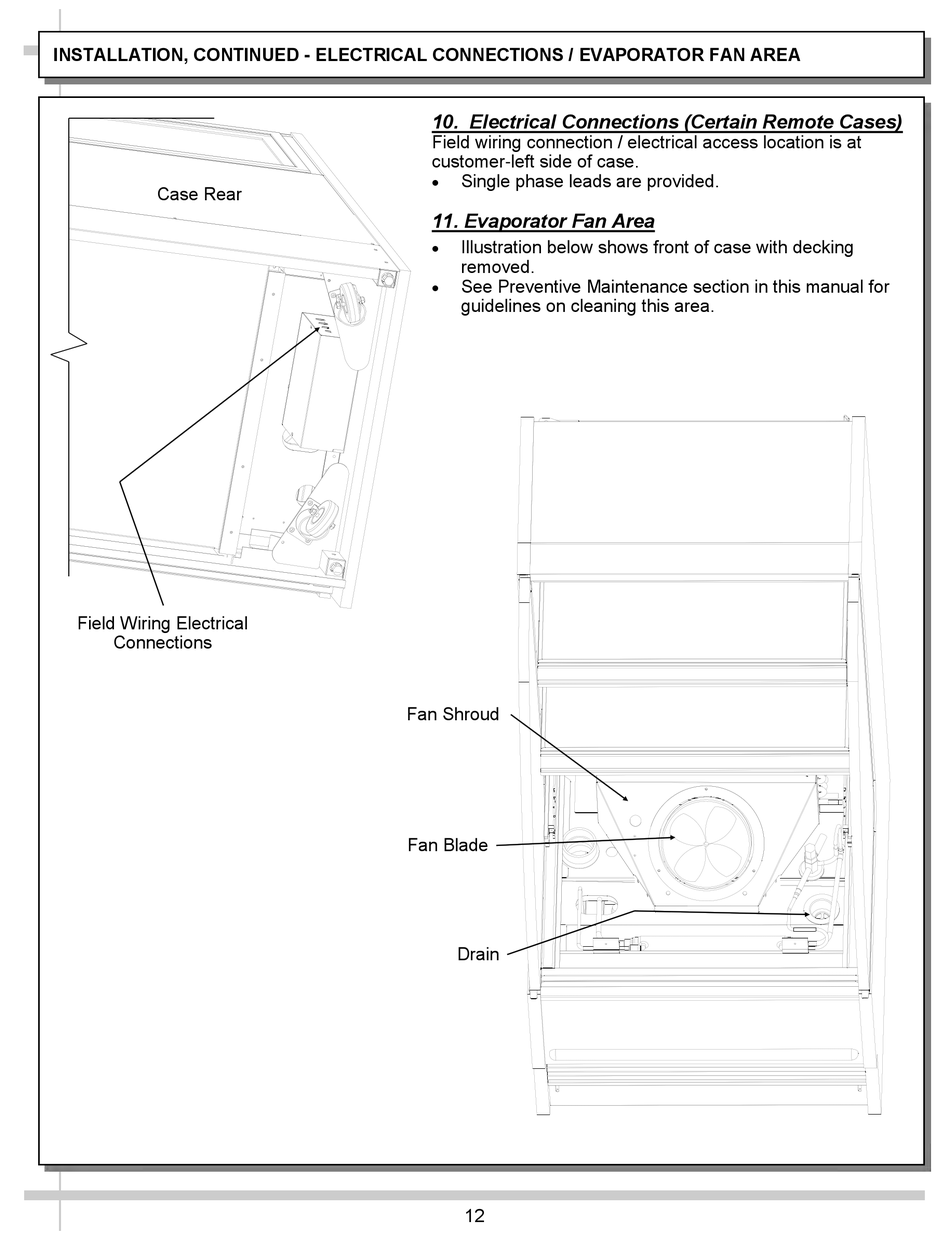

INSTALLATION, CONTINUED - ELECTRICAL CONNECTIONS / EVAPORATOR FAN AREA
Case Rear
Field Wiring Electrical
Connections
10. Electrical Connections (Certain Remote Cases)
Field wiring connection / electrical access location is at
customer-left side of case.
Single phase leads are provided.
11. Evaporator Fan Area
Illustration below shows front of case with decking
removed.
See Preventive Maintenance section in this manual for
guidelines on cleaning this area.
Fan Shroud
Fan Blade
Drain
