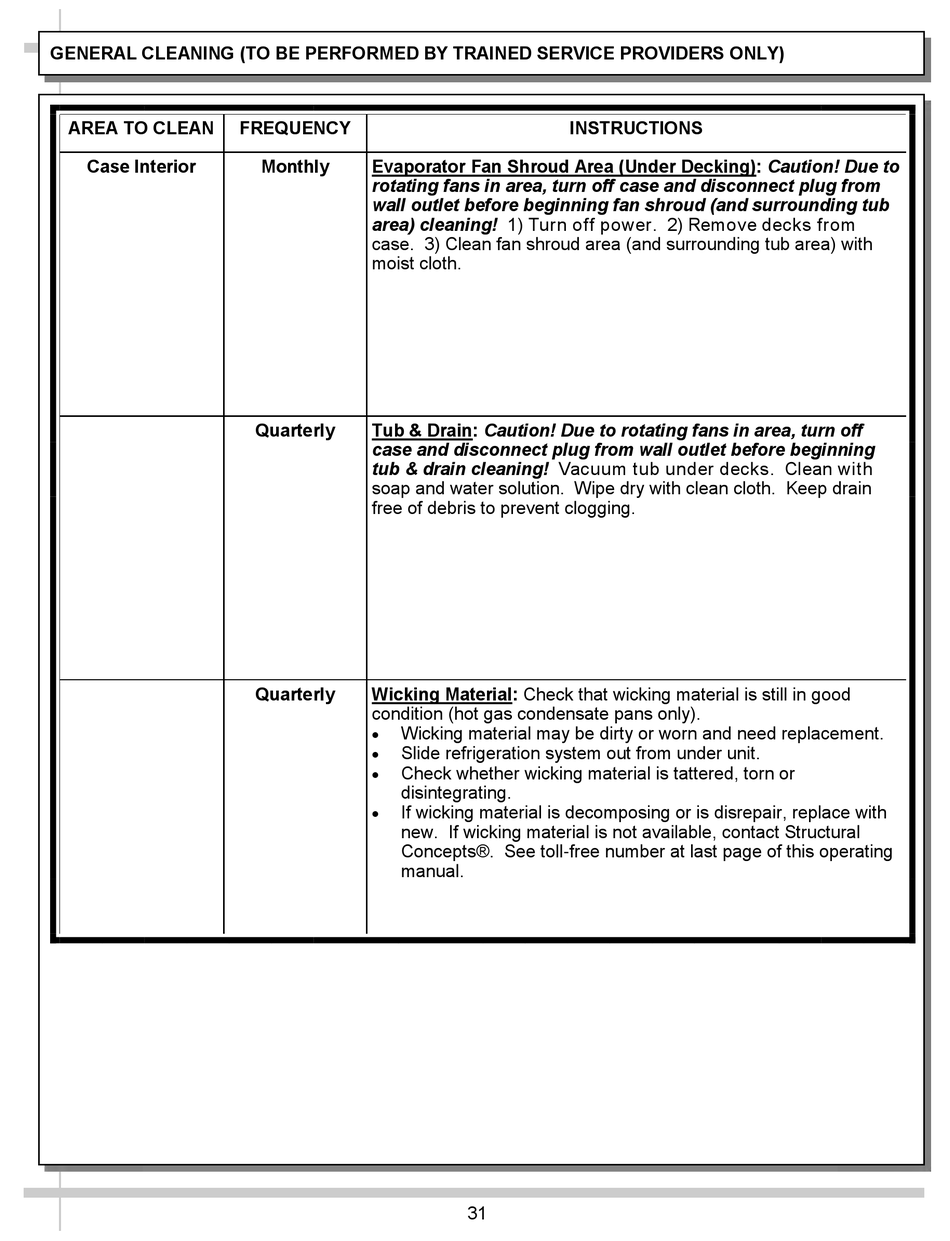

Structural Concepts HARMONY HMO2653R Installation And Operating Manual page 31

GENERAL CLEANING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY)
AREA TO CLEAN
Case Interior
FREQUENCY
Monthly Evaporator Fan Shroud Area (Under Decking): Caution! Due to
rotating fans in area, turn off case and disconnect plug from
wall outlet before beginning fan shroud (and surrounding tub
area) cleaning! 1) Turn off power. 2) Remove decks from
case. 3) Clean fan shroud area (and surrounding tub area) with
moist cloth.
Quarterly Tub & Drain: Caution! Due to rotating fans in area, turn off
case and disconnect plug from wall outlet before beginning
tub & drain cleaning! Vacuum tub under decks. Clean with
soap and water solution. Wipe dry with clean cloth. Keep drain
free of debris to prevent clogging.
Quarterly Wicking Material: Check that wicking material is still in good
condition (hot gas condensate pans only).
 Wicking material may be dirty or worn and need replacement.
 Slide refrigeration system out from under unit.
 Check whether wicking material is tattered, torn or
disintegrating.
 If wicking material is decomposing or is disrepair, replace with
new. If wicking material is not available, contact Structural
Concepts®. See toll-free number at last page of this operating
manual.
INSTRUCTIONS
31
