HARMONY
33" DEEP SELF-SERVICE REFRIGERATED BAKERY MERCHANDISER
HMO5153R
HMO2653R.5194
USER MANUAL/54171_HARMONY_USER MANUAL_HMOXX53R_SELF-SVC_REF_BAKERY_CASE
CAREFULLY FOLLOW THESE INSTRUCTIONS
HMO2653R
HMO7553R
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
USER
MANUAL
HMO3953R.5749
(Shown With Optional Recipe

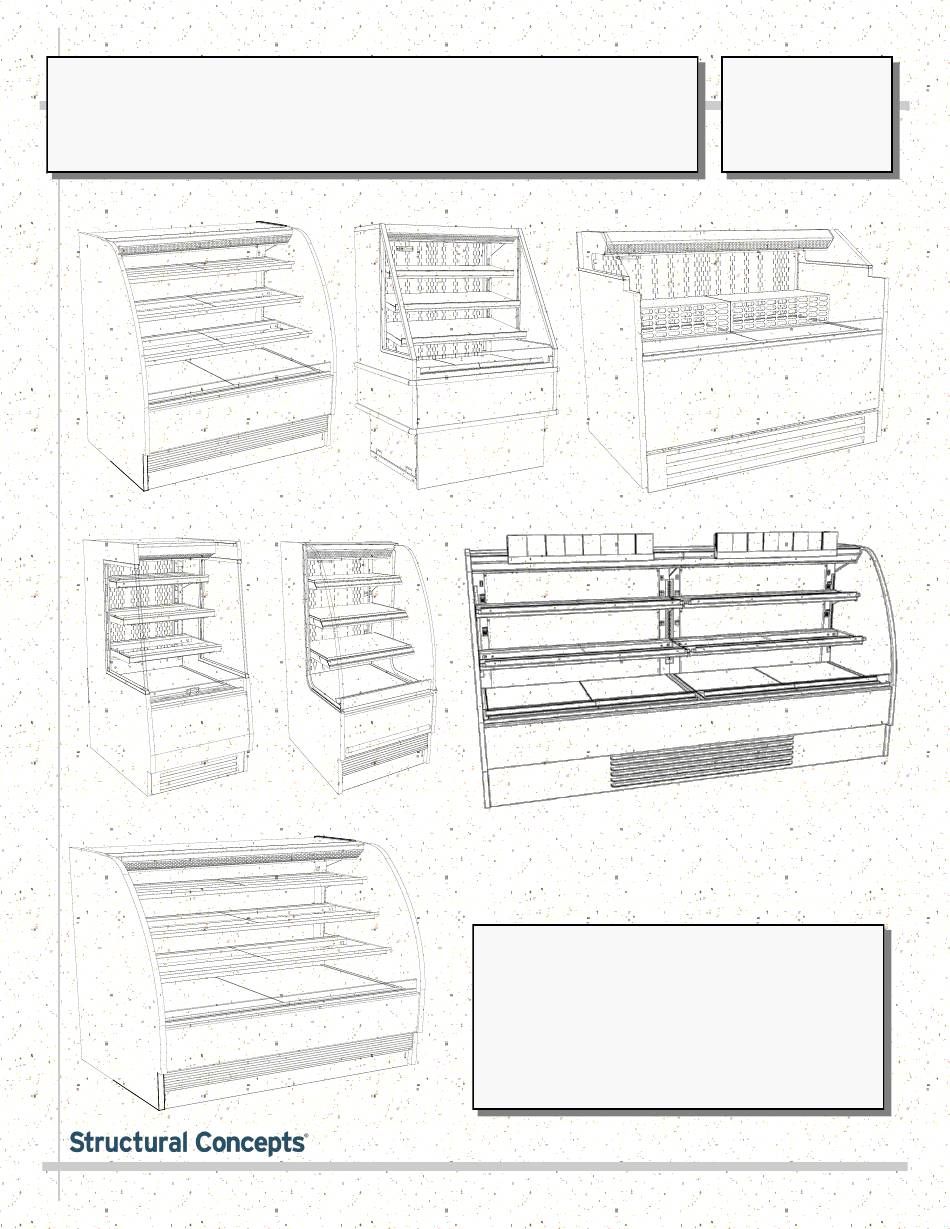

>>> Model HMO2653R (26 7/8"L* x 34 3/4"D x 52 3/4"H**)
>>> Model HMO2653R.5194 (26 7/8"L* x 34 3/4"D x 52 3/4"H**)
>>> Model HMO3953R (38 7/8"L* x 32 1/8"D x 52 3/4"H**)
>>> Model HMO3953R.5749 (38 7/8"L* x 32 1/8"D x 58 3/8"H**)
>>> Model HMO5153R (50 7/8"L* x 32 1/8"D x 52 3/4"H**)
>>> Model HMO5153R.5163 (50 7/8"L* x 32 1/8"D x 41 3/4"H**)
>>> Model HMO6353R (62 11/16"L* x 32 1/8"D x 52 5/8"H**)
>>> Model HMO7553R (75 1/4"L* x 32 1/8"D x 52 5/8"H**)
>>> Model HMO9653R.5914E (99 1/2"L* x 34 1/8"D x 52 5/8"H**)
*Includes 1" End Panels
**Includes Levelers at 1 1/4" Below Base Frame
SCC P/N
54171
HMO5153R.5163
(Shown With Risers)
HMO9653R.5914E
Card Holders)
REV T DATE: 11/17/2022
