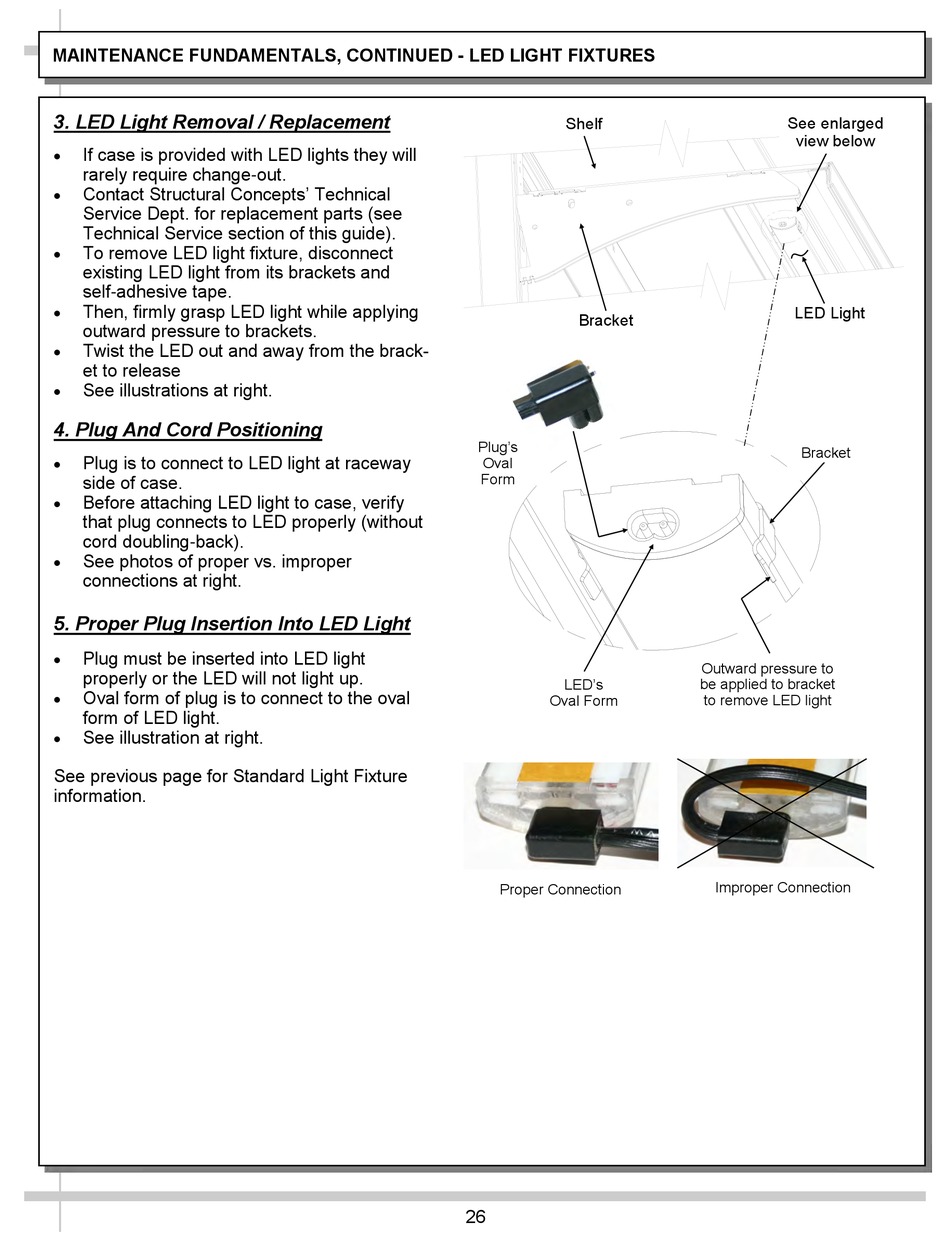

MAINTENANCE FUNDAMENTALS, CONTINUED - LED LIGHT FIXTURES

3. LED Light Removal / Replacement
 If case is provided with LED lights they will
rarely require change-out.
 Contact Structural Concepts' Technical
Service Dept. for replacement parts (see
Technical Service section of this guide).
 To remove LED light fixture, disconnect
existing LED light from its brackets and
self-adhesive tape.
 Then, firmly grasp LED light while applying
outward pressure to brackets.
 Twist the LED out and away from the brack-
et to release
 See illustrations at right.
4. Plug And Cord Positioning
 Plug is to connect to LED light at raceway
side of case.
 Before attaching LED light to case, verify
that plug connects to LED properly (without
cord doubling-back).
 See photos of proper vs. improper
connections at right.
5. Proper Plug Insertion Into LED Light
 Plug must be inserted into LED light
properly or the LED will not light up.
 Oval form of plug is to connect to the oval
form of LED light.
 See illustration at right.
See previous page for Standard Light Fixture
information.
Shelf
Bracket
Plug's
Oval
Form
LED's
Oval Form
Proper Connection
26
See enlarged
view below
LED Light
Bracket
Outward pressure to
be applied to bracket
to remove LED light
Improper Connection
