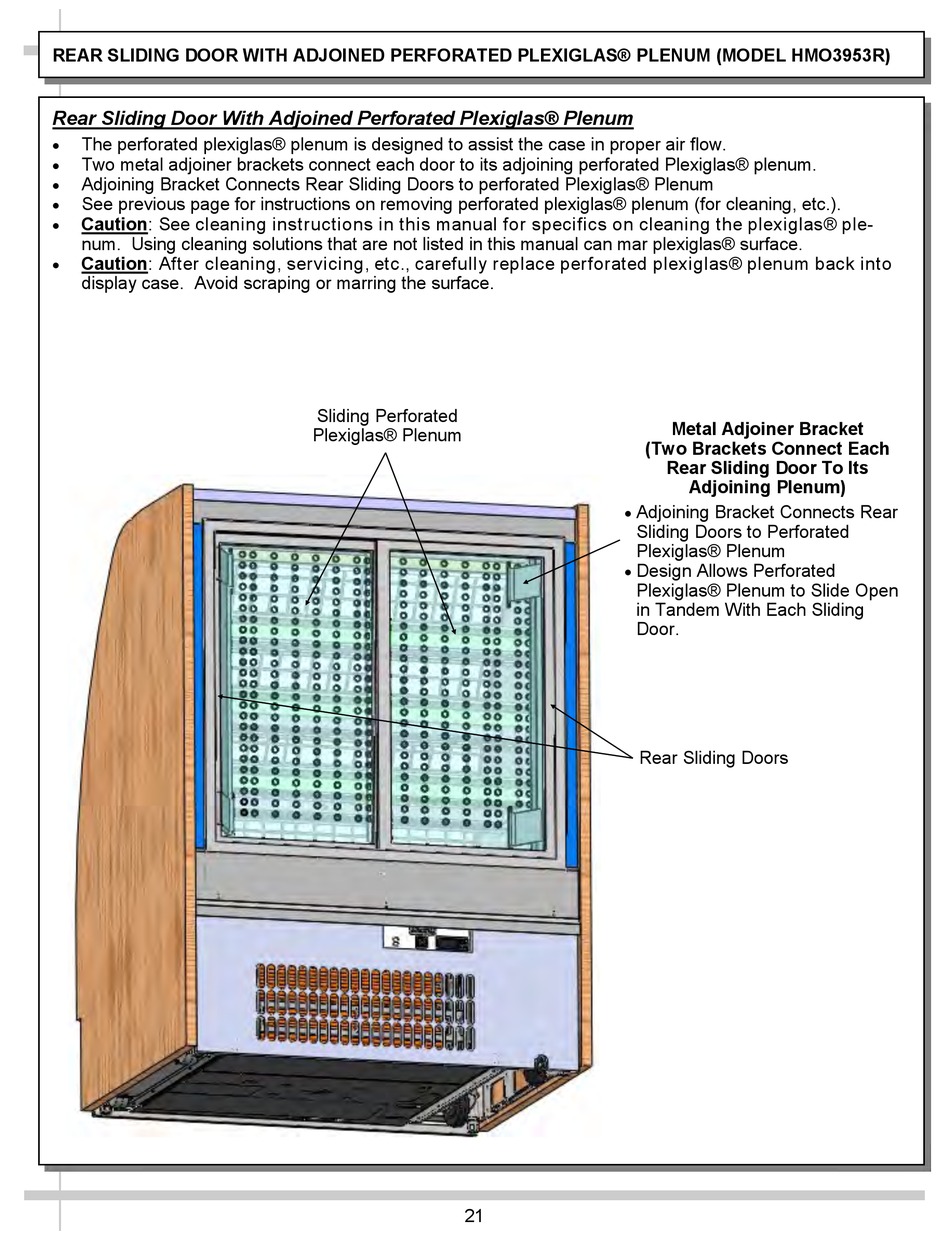

REAR SLIDING DOOR WITH ADJOINED PERFORATED PLEXIGLAS® PLENUM (MODEL HMO3953R)
Rear Sliding Door With Adjoined Perforated Plexiglas® Plenum
 The perforated plexiglas® plenum is designed to assist the case in proper air flow.
 Two metal adjoiner brackets connect each door to its adjoining perforated Plexiglas® plenum.
 Adjoining Bracket Connects Rear Sliding Doors to perforated Plexiglas® Plenum
 See previous page for instructions on removing perforated plexiglas® plenum (for cleaning, etc.).
 Caution: See cleaning instructions in this manual for specifics on cleaning the plexiglas® ple-
num. Using cleaning solutions that are not listed in this manual can mar plexiglas® surface.
 Caution: After cleaning, servicing, etc., carefully replace perforated plexiglas® plenum back into
display case. Avoid scraping or marring the surface.
Sliding Perforated
Plexiglas® Plenum
21
Metal Adjoiner Bracket
(Two Brackets Connect Each
Rear Sliding Door To Its
Adjoining Plenum)
 Adjoining Bracket Connects Rear
Sliding Doors to Perforated
Plexiglas® Plenum
 Design Allows Perforated
Plexiglas® Plenum to Slide Open
in Tandem With Each Sliding
Door.
Rear Sliding Doors
