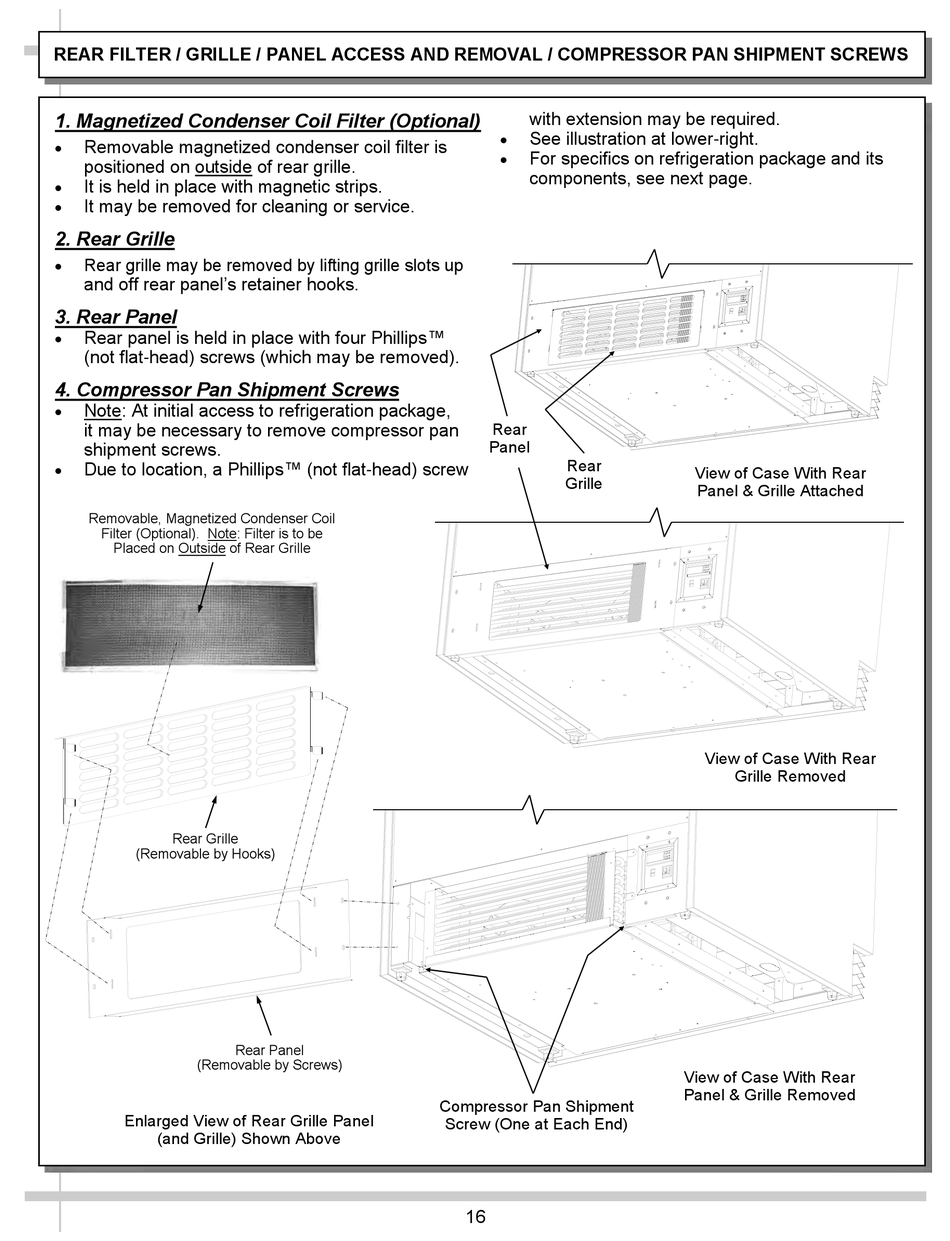

REAR FILTER / GRILLE / PANEL ACCESS AND REMOVAL / COMPRESSOR PAN SHIPMENT SCREWS
1. Magnetized Condenser Coil Filter (Optional)
 Removable magnetized condenser coil filter is
positioned on outside of rear grille.
 It is held in place with magnetic strips.
 It may be removed for cleaning or service.
2. Rear Grille
 Rear grille may be removed by lifting grille slots up
and off rear panel's retainer hooks.
3. Rear Panel
 Rear panel is held in place with four Phillips™
(not flat-head) screws (which may be removed).
4. Compressor Pan Shipment Screws
 Note: At initial access to refrigeration package,
it may be necessary to remove compressor pan
shipment screws.
 Due to location, a Phillips™ (not flat-head) screw
Removable, Magnetized Condenser Coil
Filter (Optional). Note: Filter is to be
Placed on Outside of Rear Grille
Rear Grille
(Removable by Hooks)
(Removable by Screws)
Enlarged View of Rear Grille Panel
(and Grille) Shown Above
Rear Panel
with extension may be required.
 See illustration at lower-right.
 For specifics on refrigeration package and its
components, see next page.
Rear
Panel
Rear
Grille
Compressor Pan Shipment
Screw (One at Each End)
