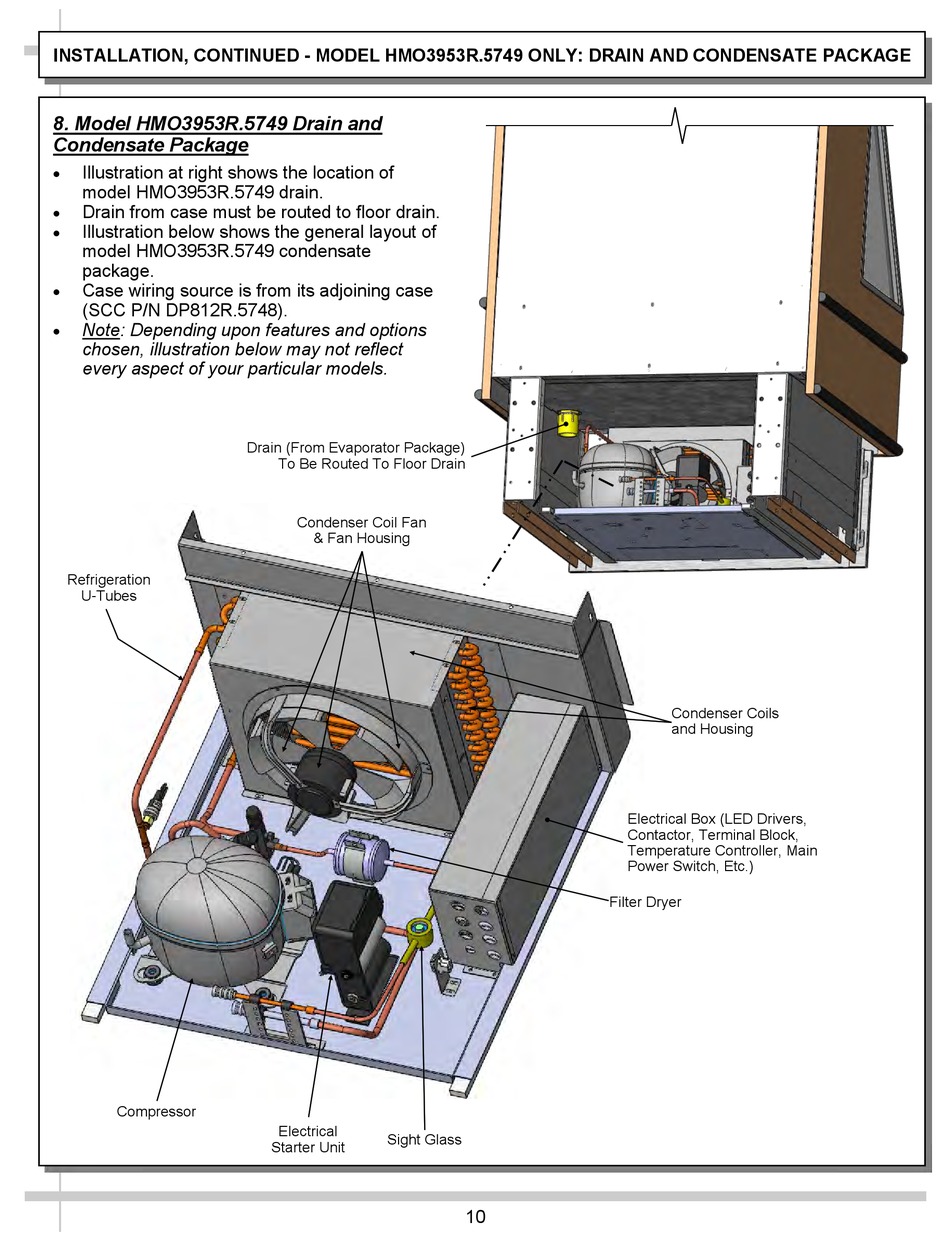

INSTALLATION, CONTINUED - MODEL HMO3953R.5749 ONLY: DRAIN AND CONDENSATE PACKAGE
8. Model HMO3953R.5749 Drain and
Condensate Package
 Illustration at right shows the location of
model HMO3953R.5749 drain.
 Drain from case must be routed to floor drain.
 Illustration below shows the general layout of
model HMO3953R.5749 condensate
package.
 Case wiring source is from its adjoining case
(SCC P/N DP812R.5748).
 Note: Depending upon features and options
chosen, illustration below may not reflect
every aspect of your particular models.
Refrigeration
U-Tubes
Compressor
Drain (From Evaporator Package)
To Be Routed To Floor Drain
Condenser Coil Fan
& Fan Housing
Electrical
Sight Glass
Starter Unit
Electrical Box (LED Drivers,
Contactor, Terminal Block,
Temperature Controller, Main
Power Switch, Etc.)
Filter Dryer
10
Condenser Coils
and Housing
