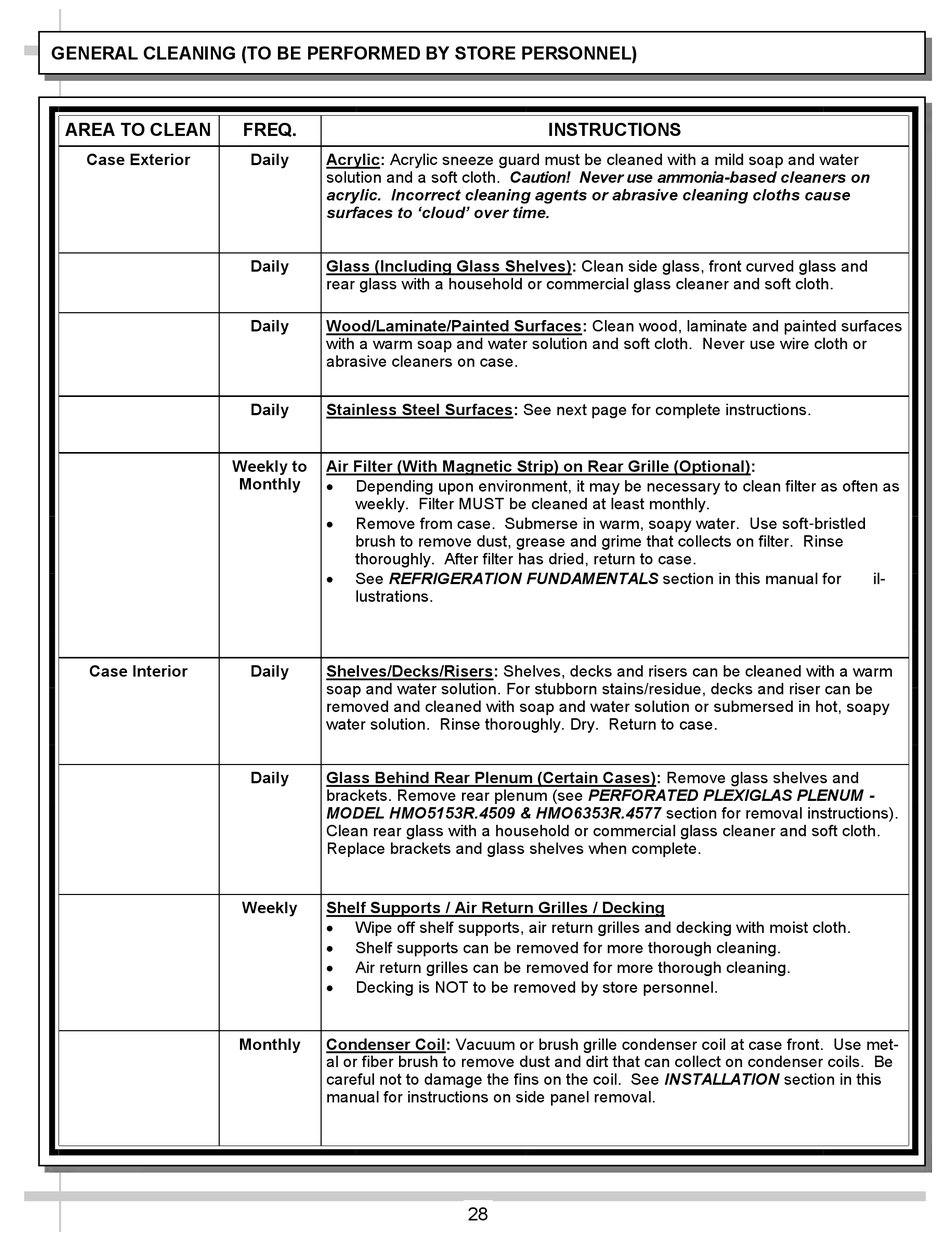

GENERAL CLEANING (TO BE PERFORMED BY STORE PERSONNEL)

AREA TO CLEAN
Case Exterior
Case Interior
FREQ.
Daily Acrylic: Acrylic sneeze guard must be cleaned with a mild soap and water
solution and a soft cloth. Caution! Never use ammonia-based cleaners on
acrylic. Incorrect cleaning agents or abrasive cleaning cloths cause
surfaces to 'cloud' over time.
Daily Glass (Including Glass Shelves): Clean side glass, front curved glass and
rear glass with a household or commercial glass cleaner and soft cloth.
Daily Wood/Laminate/Painted Surfaces: Clean wood, laminate and painted surfaces
with a warm soap and water solution and soft cloth. Never use wire cloth or
abrasive cleaners on case.
Daily Stainless Steel Surfaces: See next page for complete instructions.
Weekly to Air Filter (With Magnetic Strip) on Rear Grille (Optional):
Monthly

Depending upon environment, it may be necessary to clean filter as often as
weekly. Filter MUST be cleaned at least monthly.

Remove from case. Submerse in warm, soapy water. Use soft-bristled
brush to remove dust, grease and grime that collects on filter. Rinse
thoroughly. After filter has dried, return to case.

See REFRIGERATION FUNDAMENTALS section in this manual for
lustrations.
Daily Shelves/Decks/Risers: Shelves, decks and risers can be cleaned with a warm
soap and water solution. For stubborn stains/residue, decks and riser can be
removed and cleaned with soap and water solution or submersed in hot, soapy
water solution. Rinse thoroughly. Dry. Return to case.
Daily Glass Behind Rear Plenum (Certain Cases): Remove glass shelves and
brackets. Remove rear plenum (see PERFORATED PLEXIGLAS PLENUM -
MODEL HMO5153R.4509 & HMO6353R.4577 section for removal instructions).
Clean rear glass with a household or commercial glass cleaner and soft cloth.
Replace brackets and glass shelves when complete.
Weekly Shelf Supports / Air Return Grilles / Decking

Wipe off shelf supports, air return grilles and decking with moist cloth.

Shelf supports can be removed for more thorough cleaning.

Air return grilles can be removed for more thorough cleaning.

Decking is NOT to be removed by store personnel.
Monthly Condenser Coil: Vacuum or brush grille condenser coil at case front. Use met-
al or fiber brush to remove dust and dirt that can collect on condenser coils. Be
careful not to damage the fins on the coil. See INSTALLATION section in this
manual for instructions on side panel removal.
INSTRUCTIONS
28
