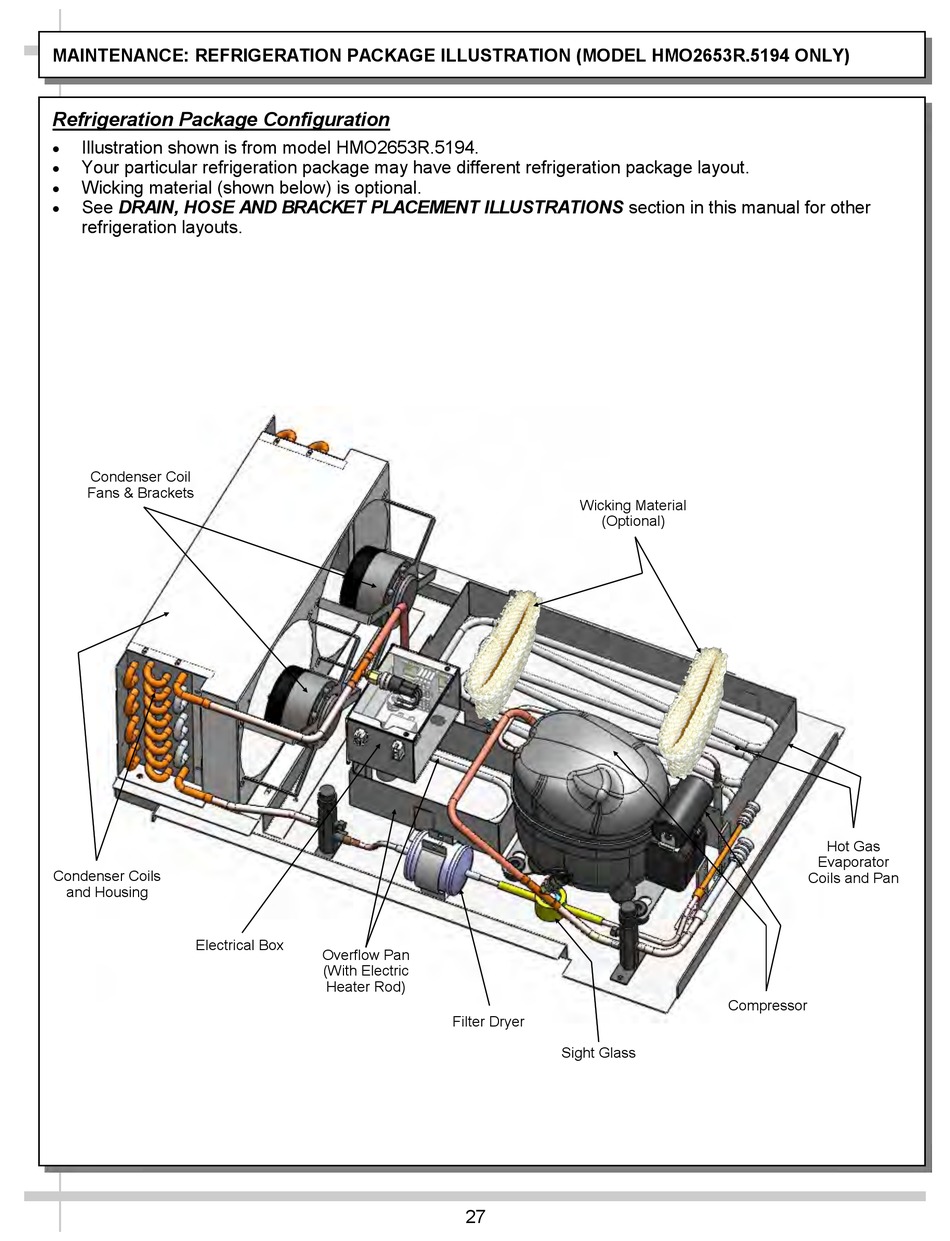

MAINTENANCE: REFRIGERATION PACKAGE ILLUSTRATION (MODEL HMO2653R.5194 ONLY)
Refrigeration Package Configuration
 Illustration shown is from model HMO2653R.5194.
 Your particular refrigeration package may have different refrigeration package layout.
 Wicking material (shown below) is optional.
 See DRAIN, HOSE AND BRACKET PLACEMENT ILLUSTRATIONS section in this manual for other
refrigeration layouts.
Condenser Coil
Fans & Brackets
Condenser Coils
and Housing
Electrical Box
Overflow Pan
(With Electric
Heater Rod)
Filter Dryer
27
Wicking Material
(Optional)
Compressor
Sight Glass
Hot Gas
Evaporator
Coils and Pan
