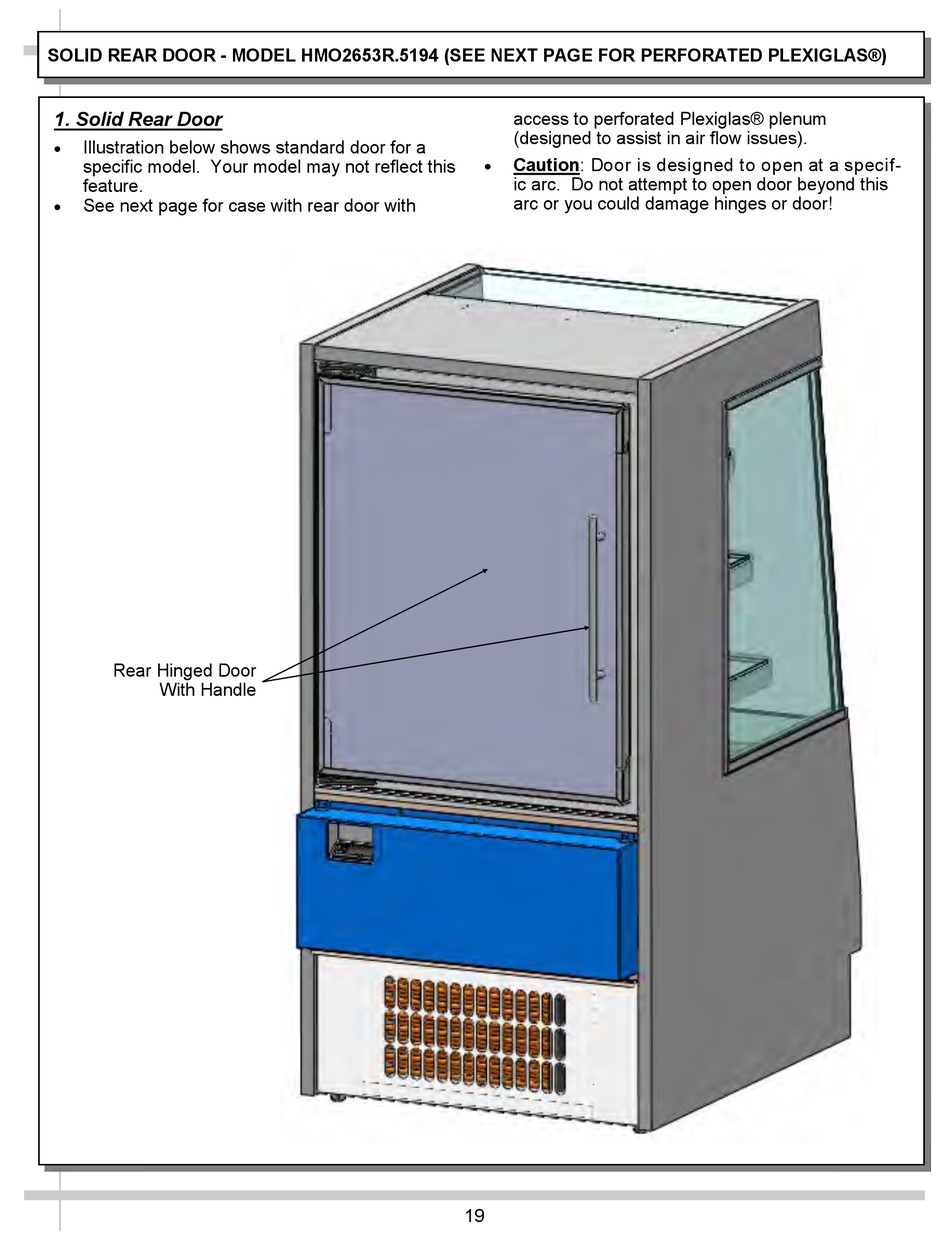

SOLID REAR DOOR - MODEL HMO2653R.5194 (SEE NEXT PAGE FOR PERFORATED PLEXIGLAS®)
1. Solid Rear Door
Illustration below shows standard door for a
specific model. Your model may not reflect this
feature.
See next page for case with rear door with
Rear Hinged Door
With Handle
access to perforated Plexiglas® plenum
(designed to assist in air flow issues).
Caution: Door is designed to open at a specif-
ic arc. Do not attempt to open door beyond this
arc or you could damage hinges or door!
19
