Before You Start; Control Box Setup; Stage - Future Automation CHS Series Installation Instructions Manual

CHS - Ceiling Hinge & Swivel
Before you start, check the following:
-The product is in good condition
-No damage to any parts
-Wiring is all secure
-The unit is in the closed position
-Test the mechanism by running it up and down, best done with it upside down on the floor
-See page 13-16 for controls.
If you need to remove
the back tray (Required
for option 2 installation)
remove the 4 x M8
CSK bolts on either
side located here.
The CHS can have an additional
telescopic unit added onto the
mechanism creating the CHST

Control box setup

- THE BOX MUST BE EASY TO ACCESS!
- Connect the control box to the DC power supply and the
PSU to the mains
- Connect the infrared remote sensor even if you are going
to use switch control
- See operations page
Page 5 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565

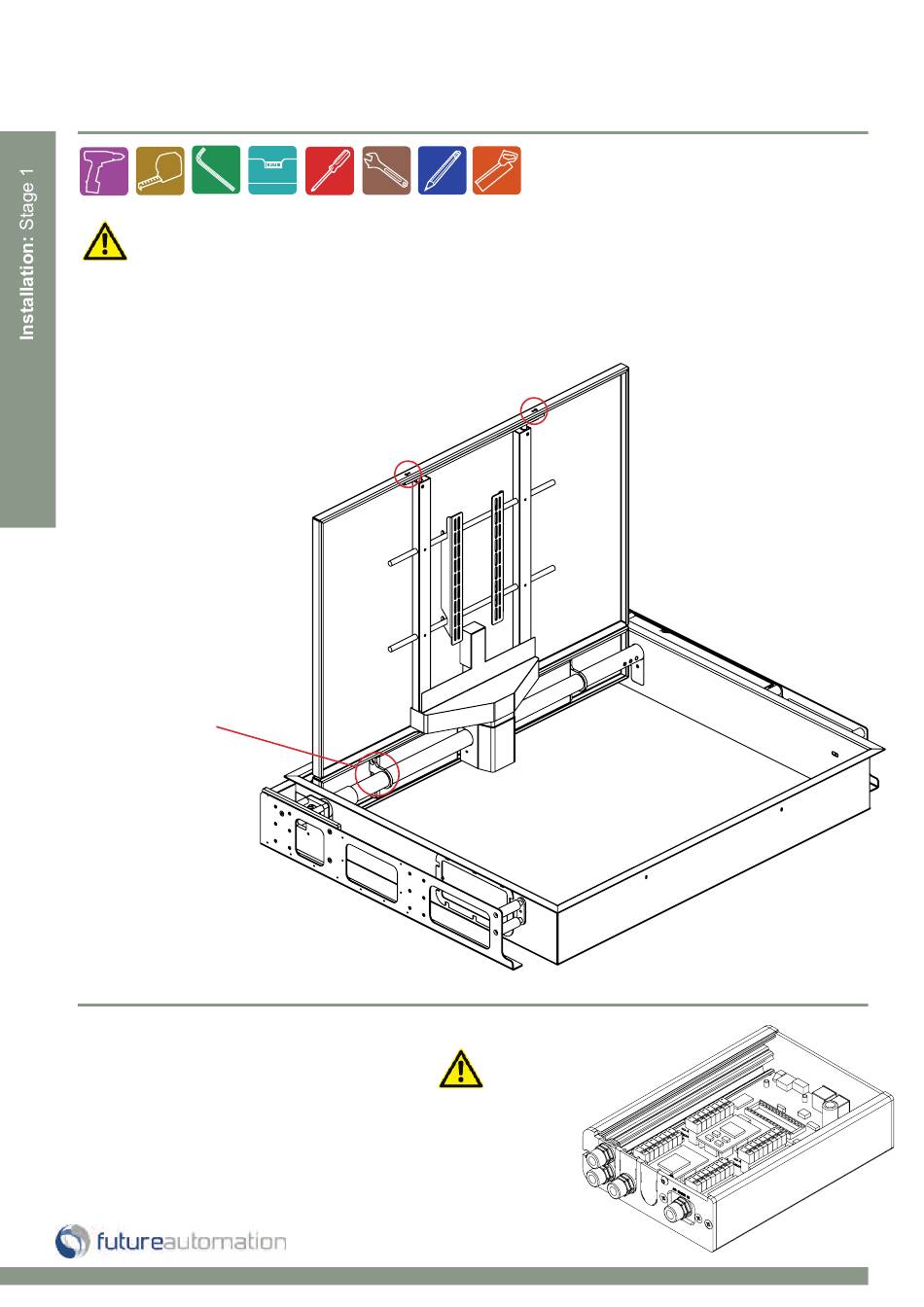

Remove the Main Tray
by rotating the swivel 180
degrees then remove the
2 bolts circled, this will
allow you to unhook the
Main Tray.
