CHS - Ceiling Hinge & Swivel

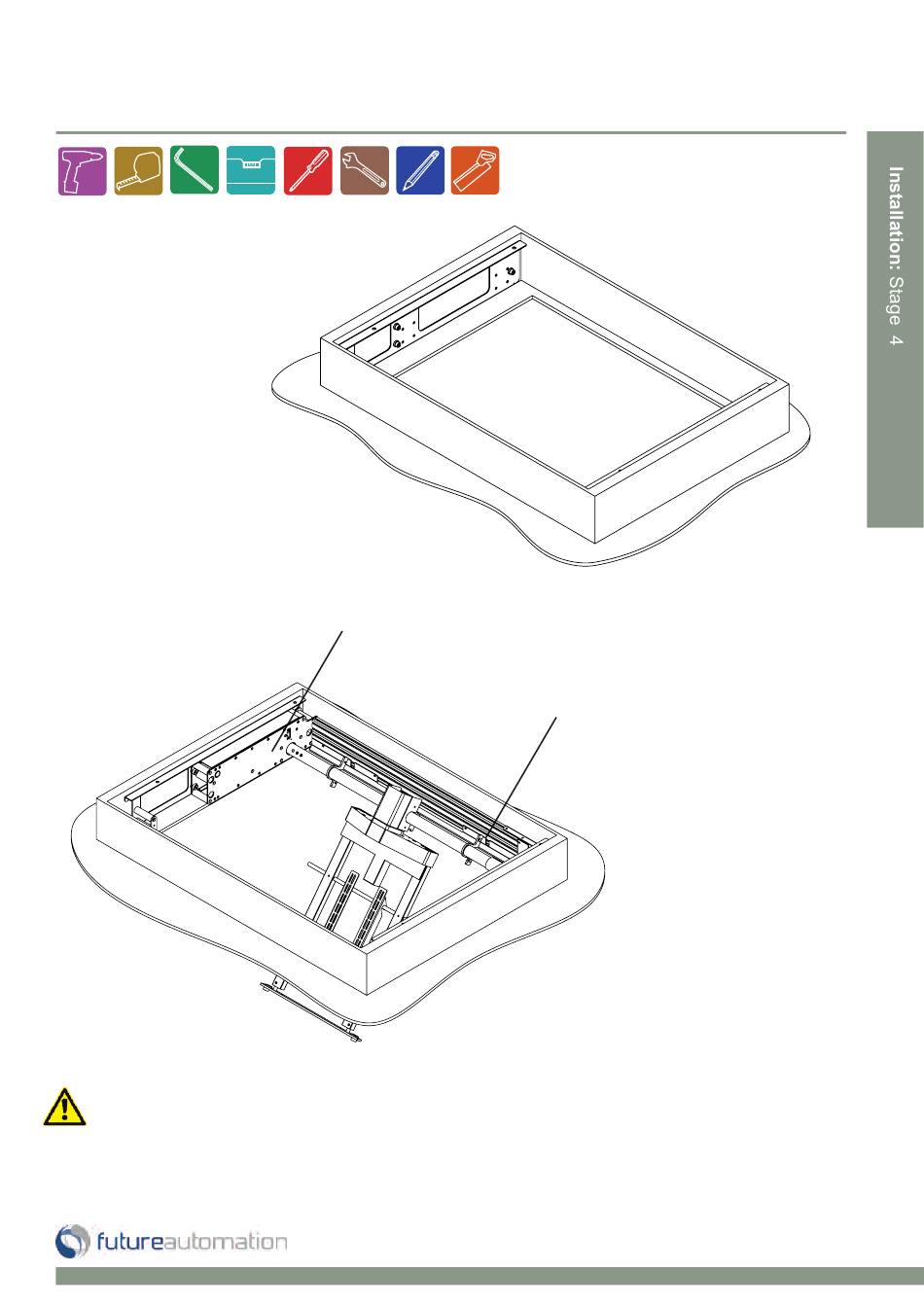

Securing the mechanism Option 2
Then lift the mechanism
into place and slide apart
to lock in place.
NOTE:
Generic images for all CH installations,
may differ from actual model.
Gearbox
Page 8 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
4 no. M8 bolts need loosening so that
the mechanism can telescope in and
fit into the recess. Then telescope out
and tighten the bolts to secure
Fix the mechanism in place with 6
bolts that held it to the mount
plates when sent.
