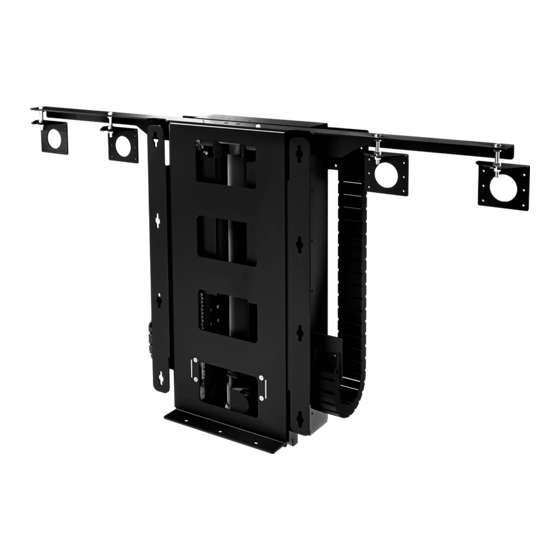

- Page 1 TSLM-2 TELESCOPIC SCREEN LIFT MEDIUM TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181 ISSUE 003 FUTUREAUTOMATION SHEET 1...
-
Page 2: Specification
TSLM-2 TELESCOPIC SCREEN LIFT MEDIUM SPECIFICATION MEASUREMENTS Product Dimensions 742mm (29 3/16") x 1280mm (50 3/8") x 240mm (9 7/16") Minimum Screen Height 695mm (27 3/8") Maximum Screen Height 875mm (34 7/16") Minimum Screen Width 1280mm (50 3/8") - (Lower Width option available apon request) -
Page 3: General Information
TSLM-2 TELESCOPIC SCREEN LIFT MEDIUM GENERAL INFORMATION LID and ENCLOSURE - To be made by others. Total allowable VESA 200, 300 & 400 weight for all timber work and the mounting patterns covered. screen 75Kg. Bracket has full height adjustment . - Page 4 TSLM-2 TELESCOPIC SCREEN LIFT MEDIUM CABINET SIZING 13/16" All sizing calculations are based off a 20mm [0.79"] Box Enclosure box enclosure panel thickness. Any increases in Internal Cabinet Depth = Screen Depth + 230 [9 1/16"] Cap Height this thicknes will increace the required space.
- Page 5 TSLM-2 TELESCOPIC SCREEN LIFT MEDIUM BOX ENCLOSURE DETAILING The Screen, Enclosure, Lid and the Trim 0" panel must weigh no more than 75Kg. Block to locate 1/4" in enclosure 13/16" Optional ventilation DETAIL E SCALE 1 : 1 Fixing Suggested taper detail to...
-
Page 6: Install Instructions
TSLM-2 TELESCOPIC SCREEN LIFT MEDIUM INSTALL INSTRUCTIONS Mount fixing bolts • Check that the cabinet, enclosure, lid and the trim panel are made to the details shown on the previous pages. • You can stand the mechanism up on its base to test it before putting in the cabinet.
