CHS - Ceiling Hinge & Swivel

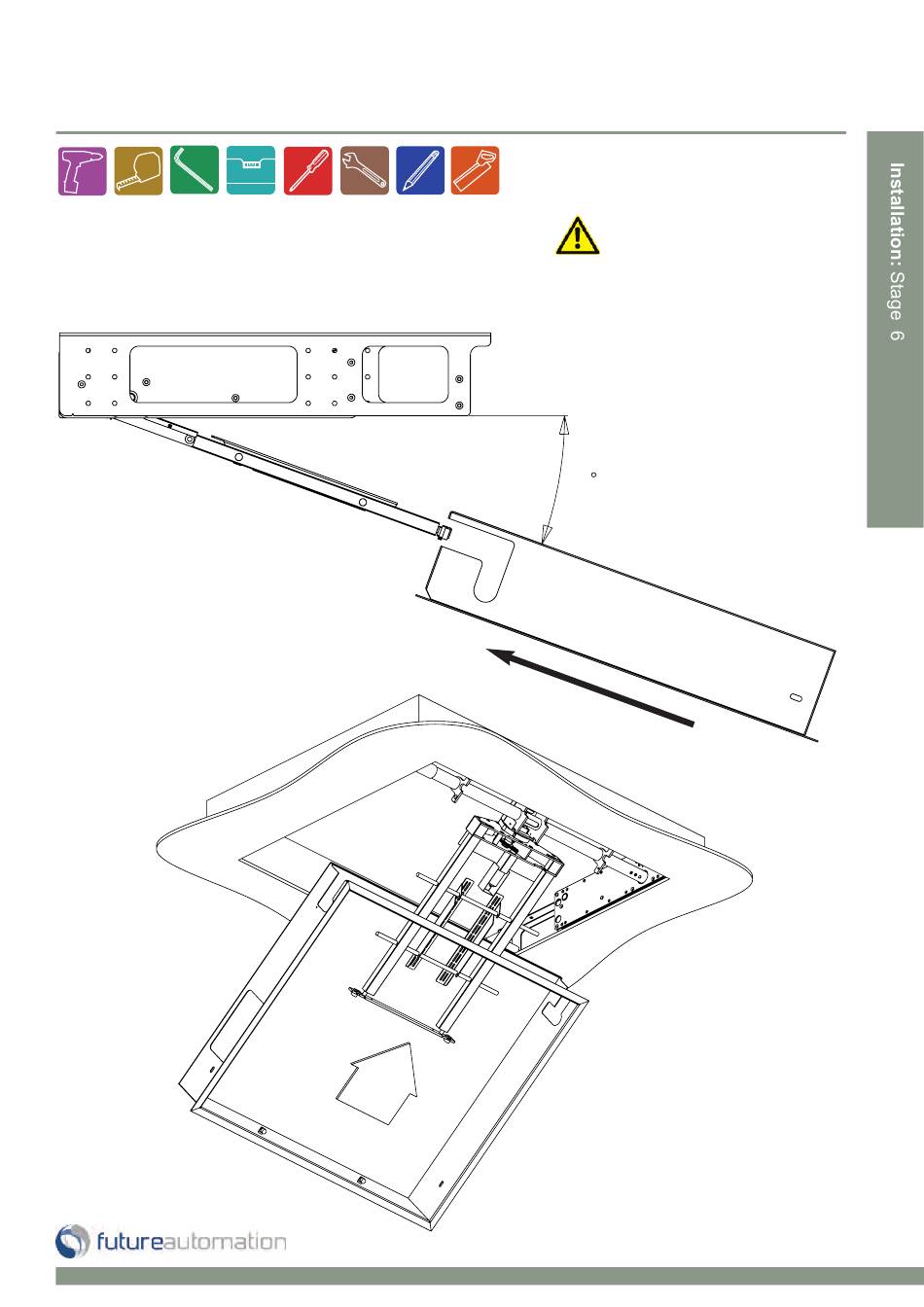

Fixing the box (Not needed for option 1)
Set the screen frame at about 20 degrees from the
up position. The box can then be lifted into place.
Slide box up over screen
mount and hook into place
Page 10 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
NOTE:
Generic images for all CH
installations, may differ from
actual model.
20 Approx
When in place secure with the
row of 4 bolts along the back
(M5x25mm) and 2 M8 bolts on
each side as removed previously
