Installation Instructions

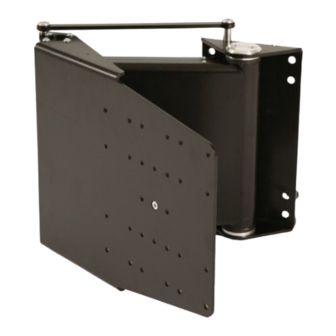

FSE90 Flat Screen Electric Wall Mount
Design Highlights
-Quiet Smooth Action with Variable Speed Motion
-Full Cable Management
-Stylish Look and Finish
-Onboard Electronics
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 010
Advertisement
Table of Contents
Related Manuals for Future Automation FSE90
Summary of Contents for Future Automation FSE90
- Page 1 Installation Instructions FSE90 Flat Screen Electric Wall Mount Design Highlights -Quiet Smooth Action with Variable Speed Motion -Full Cable Management -Stylish Look and Finish -Onboard Electronics Thank you for choosing futureautomation email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
-
Page 2: Safety Information
Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
FSE90 Flat Screen Electric Wall Mount Contents Page Introduction Safety Information Contents Contents Tool Indicator Icons Installation Parts List Package Contents Stage 1 Screen Fitment Before You Start Check Stage 2 Vertical Height Alignment Stage 3 Fitting The Mechanism To The Wall Stage 4 Removing The Side Panel &... -
Page 4: Contents
Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. -
Page 5: Parts List
FSE90 Flat Screen Electric Wall Mount Nuts & Bolts Multipack: Package Contents A range of nuts, bolts, washers and spacers to help add in the 1 - Mechanism mounting for your screen 1.1 - Screen Mount Plate 1.2 - Wall Mount Plate 1.3 - Mechanism Cover... -
Page 6: Screen Fitment
If your screen is not a VESA compatible, then a custom adapter will need to be added to the FSE90 bracket to suit your screen. Further instructions relating to any custom mount will be included with the custom adapter. -
Page 7: Vertical Height Alignment
FSE90 Flat Screen Electric Wall Mount Vertical height alignment Carefully place the screen face down on the floor and then fix the FSE90 to the screen using the fixings supplied Measure the distance from the top of the screen down to the top mounting hole on the wall plate. -
Page 8: Fitting The Mechanism To The Wall
FSE90 Flat Screen Electric Wall Mount Fitting the mechanism to the wall Make sure the wall which the FSE90 is being Once you have decided on the location mounted to is structurally of your screen you can fix the wall plate suitable to the wall. -
Page 9: Removing The Side Panel & Cable Management
FSE90 Flat Screen Electric Wall Mount Removing side panel & cable management Before fitting screen run the cables through the mechanism. Take off the side panel as shown by removing the four bolts, 2 top and 2 bottom, that hold it in place. -
Page 10: Mounting The Screen
FSE90 Flat Screen Electric Wall Mount Mounting the screen Attach the screen to the mounting plate using the appropriate fixings found in the fixtures pack. It may be necessary with some screens to use spacers to provide clearance for AV cables at the rear... -
Page 11: Final Checks
FSE90 Flat Screen Electric Wall Mount Final Checks -Make sure that both side panels are fitted securely in place -Nothing is obstructing the movement of the mechanism or screen -Product is square and level on the wall -The product condition is good and all the... -
Page 12: Contact Closure
FSE90 Flat Screen Electric Wall Mount Contact Closure Use an RJ45 connector in the CCI socket on the control box to operate via contact closure WIRE / CABLE DESCRIPTION ACTION 568A 568B 12V SUPPLY 12V SUPPLY - CURRENT LIMITED When 12V attached, device will go OUT to PRESET 12V LATCH position. -
Page 13: Rs232
FSE90 Flat Screen Electric Wall Mount Details Baud rate: 9600 Stop bit: Parity: None Databits: Pin 1: RX Pin 6 : TX Pin 2: TX Pin 3 & 4: GROUND Pin 3: RX Pin 5: GROUND RS232 - Use an RJ25 connector in the socket marked... -
Page 14: Ir Control
FSE90 Flat Screen Electric Wall Mount Note Only buttons indicated are functional with the product Operation buttons for the IR remote Out - Brings the bracket fully out In - Brings the bracket 90 to the wall fully in parallel to the wall... -
Page 15: Trouble Shooting
FSE90 Flat Screen Electric Wall Mount Wall Mount FSE90 - Trouble shooting For information on our products please refer to our web site - www.futureautomation.co.uk or for questions on installations and our product range please phone us on - +44(0) 1438 833577 and ask for our technical support department Page 14 of 16 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... -
Page 16: Technical Overview
FSE90 Flat Screen Electric Wall Mount A general technical overview of the FSE90 flat screen electric wall mount FSE90 Product Dimensions 415x95x325mm (W,D,H When Closed) [16.3x3.7x12.8"] Weight (Kg) 12Kg [26.5lb] Power Consumption Max 120W Power Consumption On Standby Lifting Capacity (Kg) 30Kg [66.1lb]... - Page 17 FSE90 Flat Screen Electric Wall Mount Notes... Page 16 of 16 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
- Page 18 Future Automation Unit 2 Kimpton Enterprise Park Claggy Road Kimpton Hertfordshire SG4 8HP United Kingdom Tel: +44 (0) 1438 833 577 Fax: +44 (0) 1438 833 565 Email: info@futureautomation.co.uk www.futureautomation.co.uk...
