CHS - Ceiling Hinge & Swivel
Option 2

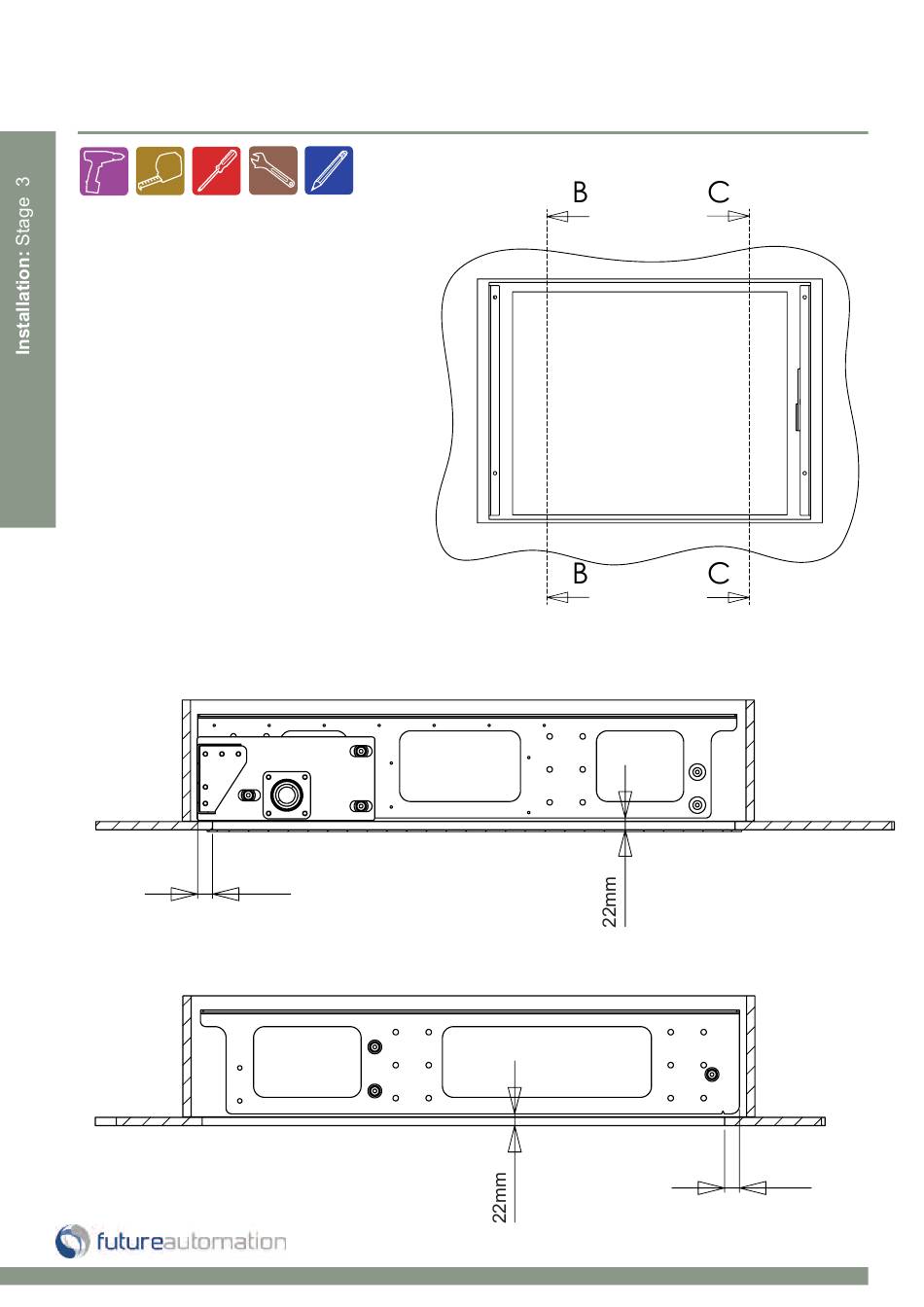

Fix the mount plates in the positions
shown. 27mm behind the back of the
opening.
22mm above the bottom of the finished
ceiling level.
Viewing Side
View on right beam
Section CC - 1:8
27mm
View on left beam
Section BB - 1:8
27mm
