Future Automation HSE90 Installation Manual

Heavy duty electric swivel mechanism
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

HSE - Heavy Duty Electric Swivel Mechanism

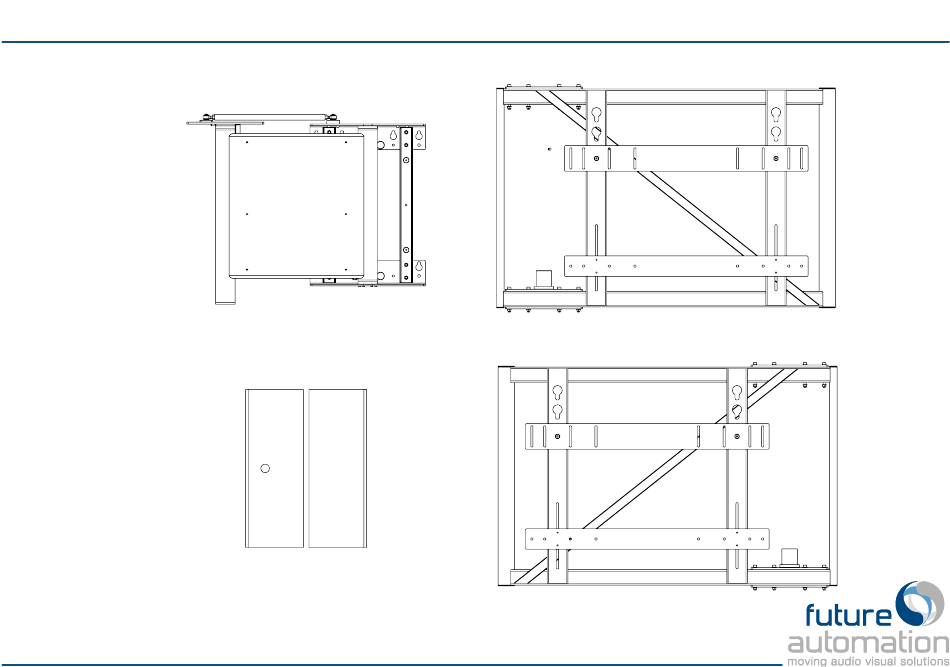

BOX CONTENTS
•
Main Arm
•
Screen Mount Frame
•
Wall Cover (x2)
•
Fixings
INSTALLATION STEPS
1.
2.
3.
4.
5.
6.
7.
www.futureautomation.co.uk
tel: +44 (0) 1438 833 577
MAIN ARM
WALL COVERS
fax: +44 (0) 1438 833 565
Installation Guide
SCREEN MOUNT FRAME (CLOCKWISE VERSION)
SCREEN MOUNT FRAME (COUNTER-CLOCKWISE VERSION)
ISSUE 001
SHEET 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSE90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Future Automation HSE90

Summary of Contents for Future Automation HSE90

  • Page 1: Table Of Contents

    HSE - Heavy Duty Electric Swivel Mechanism ISSUE 001 Installation Guide SHEET 1 of 8 BOX CONTENTS SCREEN MOUNT FRAME (CLOCKWISE VERSION) • Main Arm MAIN ARM • Screen Mount Frame • Wall Cover (x2) • Fixings INSTALLATION STEPS Wall Mounting Screen Mount Frame Preparation Screen Mount Frame Attachment IN &...

  • Page 2: Wall Mounting

    HSE - Heavy Duty Electric Swivel Mechanism ISSUE 001 Installation Guide SHEET 2 of 8 Wall Mounting Wall fixings should be secured in the wall before lifting 15.75 the Main Arm into position. The Main Arm can be hooked into position on the key 7.87 hole slots in the Wall Plates.

  • Page 3: Screen Mount Frame Preparation

    HSE - Heavy Duty Electric Swivel Mechanism ISSUE 001 Installation Guide SHEET 3 of 8 Screen Mount Frame Preparation SCREEN MOUNT PLATE REMOVAL Screen Mount Plates must be removed from the Screen Mount Frame. Remove all cable ties and remove the bolts in the Bottom Screen Mount Plate. TOP JOINING PLATE JOINING PLATE REMOVAL Remove all M8 Nuts and bolts from the top and bottom of the Screen Mount Frame.

  • Page 4: Screen Mount Frame Attachment

    HSE - Heavy Duty Electric Swivel Mechanism ISSUE 001 Installation Guide SHEET 4 of 8 Screen Mount Frame Attachment TOP JOINING PLATE Insert the Bottom Pivot Boss into the Main Arm and hold in place while the Screen Mount Frame is lifted into position. Secure the Screen Mount Frame in place with the M8 bolts, washers and nuts.

  • Page 5: In & Out Switch Adjustment

    HSE - Heavy Duty Electric Swivel Mechanism ISSUE 001 Installation Guide SHEET 5 of 8 IN & OUT Switch Adjustment Remove both Arm Covers to gain access to switch adjustments. OUT SWITCH ADJUSTMENT The angle of the OUT position is dictated by the Out Switch Boss. Adjust by loosening the M8 set screw and rotating the Out Switch Boss.

  • Page 6: Link Bar Adjustment

    HSE - Heavy Duty Electric Swivel Mechanism ISSUE 001 Installation Guide SHEET 6 of 8 Link Bar Adjustment When the mechanism is in the IN position, the Screen Mount Frame should be parallel to the wall. If the screen appears to be angled from the wall, minor adjustments can be made to correct this. Loosen the two nuts at either end of the Link Bar.

  • Page 7: Screen Mounting

    HSE - Heavy Duty Electric Swivel Mechanism ISSUE 001 Installation Guide SHEET 7 of 8 Screen Mounting MOUNT BOSS MOUNT HOOKS TOP MOUNT PLATE DETAIL D BOTTOM MOUNT PLATE SCREEN MOUNT SLOTS 35.43 The mechanism is suitable for the Mounting Method following screen mount patterns: 31.50 1 - Fix the Top and Bottom Mount Plate to the...

  • Page 8: Cable Routing

    HSE - Heavy Duty Electric Swivel Mechanism ISSUE 001 Installation Guide SHEET 8 of 8 Cable Routing The covers on the primary arm are removable. This allows screen cables to be WALL routed through the mechanism with ease. Screen and Power cables exit from the bottom of the wall mount and can be routed into an opening in the wall behind or a conduit leading to the floor.

This manual is also suitable for:

Hse90-ccwHse90-cw
