Installation Instructions

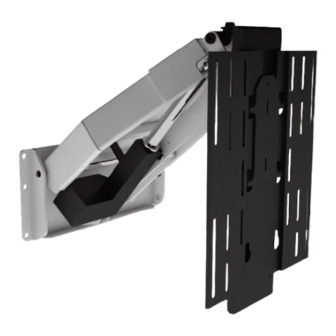

EAD2 - Electric Advance & Drop V2
Design Highlights
-Unique Advanced and Drop Motion
-Manual swivel with self aligning feature when retracting
-Smooth quiet motion
-Perfect For Mounting TV Above Fireplaces
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 002
Advertisement
Table of Contents
Related Manuals for Future Automation EAD2
Summary of Contents for Future Automation EAD2
- Page 1 Installation Instructions EAD2 - Electric Advance & Drop V2 Design Highlights -Unique Advanced and Drop Motion -Manual swivel with self aligning feature when retracting -Smooth quiet motion -Perfect For Mounting TV Above Fireplaces Thank you for choosing futureautomation email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
-
Page 2: Safety Information
Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
EAD2 - Electric Advance & Drop V2 Contents Page Introduction Safety Information Contents Contents Tool Indicator Icons Installation Parts List Package Contents Stage 1 Screen Fitment Before You Start Check Stage 2 Screen Positioning Stage 3 Fitting The Mechanism To The Wall... -
Page 4: Contents
Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. -
Page 5: Parts List
EAD2 - Electric Advance & Drop V2 Nuts & Bolts Multipack: Package Contents A range of nuts, bolts, washers and spacers to aid in the mounting 1 - Mechanism for your screen 1.1 - Wall Mount Plate 1.2 - Advancing Arm 1.3 - Swivel Locking Bolt... -
Page 6: Screen Fitment
EAD2 - Electric Advance & Drop V2 Before you start, check the following: -The product is in good condition -No damage to any parts -Wiring is all secure -The unit is in the up position -Test the movement of the mechanism... -
Page 7: Screen Positioning
Make sure the mechanism is in the IN position when doing this. To establish clearances and general requirements please refer to the EAD2 Tech Sheet. A recommended mounting option is to recess the mechanism into the wall so the screen sits flush with the wall in the up position. -
Page 8: Fitting The Mechanism To The Wall
EAD2 - Electric Advance & Drop V2 Fitting the mechanism to the wall Once the position of the wall plate has been decided with reference to where the screen will be fix to the wall using all the available wall fixings. -
Page 9: Cable Routing
EAD2 - Electric Advance & Drop V2 Cable routing Bring the cables through the wall and the EAD2 wall plate. Loop around the hinge tube allowing enough slack not to get caught or pulled taught. Run the cables inside the arm and cable tie to the management brackets. -
Page 10: Mounting The Screen
EAD2 - Electric Advance & Drop V2 Mounting the screen Attach the screen to the KH mounting plate using the appropriate fixings found in the fixtures pack. It may be necessary with some screens to use spacers to provide clearance for AV... -
Page 11: Tilt Adjustment (If Required)
EAD2 - Electric Advance & Drop V2 Tilt Adjustment (If Required) To adjust the tilt of the screen when in the up position, run into the out position, then loosen the internal bolt and the locking nuts so the locking boss can slide up or down. -
Page 12: Tilt Adjustment (If Required)
Turn the captive bolts simultaneously or turn by turn to alter the tilt position. Tighten the internal bolts and locking nuts and run the EAD2 back into the up position to see the tilt alteration. It may be necessary to repeat this procedure a few times until the desired tilt has been acquired. -
Page 13: Swivel Option
EAD2 - Electric Advance & Drop V2 Swivel Option Remove swivel bolt to enable swivel function, if not required leave in place for parallel tracking. Up to 45 degrees rotation in each direction. Swivel Bolt Page 12 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... -
Page 14: Travel Switch Adjustment
EAD2 - Electric Advance & Drop V2 Travel Switch Adjustment To adjust the travel distance out position, loosen the 2 switch bolts on the side of the advance arm shown below in the detailed view. Slide the switch to adjust the travel. -
Page 15: Contact Closure
EAD2 - Electric Advance & Drop V2 Contact Closure - Use an RJ45 connector in the CCI socket on the control box to operate via contact closure WIRE / CABLE CONTACT CLOSURE DESCRIPTION ACTION 568A 568B LED INDICATOR 12V SUPPLY 12V SUPPLY - CURRENT LIMITED When 12V attached, device will go OUT. -
Page 16: Rs232
EAD2 - Electric Advance & Drop V2 RS232 - Use an RJ25 connector in the socket marked RS232 on the control box to operate using RS232 Pin 1: RX Pin 6 : TX Pin 2: TX Pin 3 & 4: GROUND... -
Page 17: Ir Control
EAD2 - Electric Advance & Drop V2 Operation buttons for the IR remote In - Brings the mechanism Out - Brings the inside the cabinet mechanism out of the cabinet facing forward Stop - Will stop the operation Store, Store + C - Stores... -
Page 18: Technical Overview
EAD2 - Electric Advance & Drop V2 A general technical overview of the EAD V2 electric advance and drop version 2 mechanism. EAD V2 520x650x135mm Product Dimensions (W,H,D) [20.5x25.6x5.3"] Weight 30Kg [66.1lb] Power Consumption 250W - 500W Power Consumption On... - Page 19 EAD2 - Electric Advance & Drop V2 Notes... Page 18 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
