CHS - Ceiling Hinge & Swivel

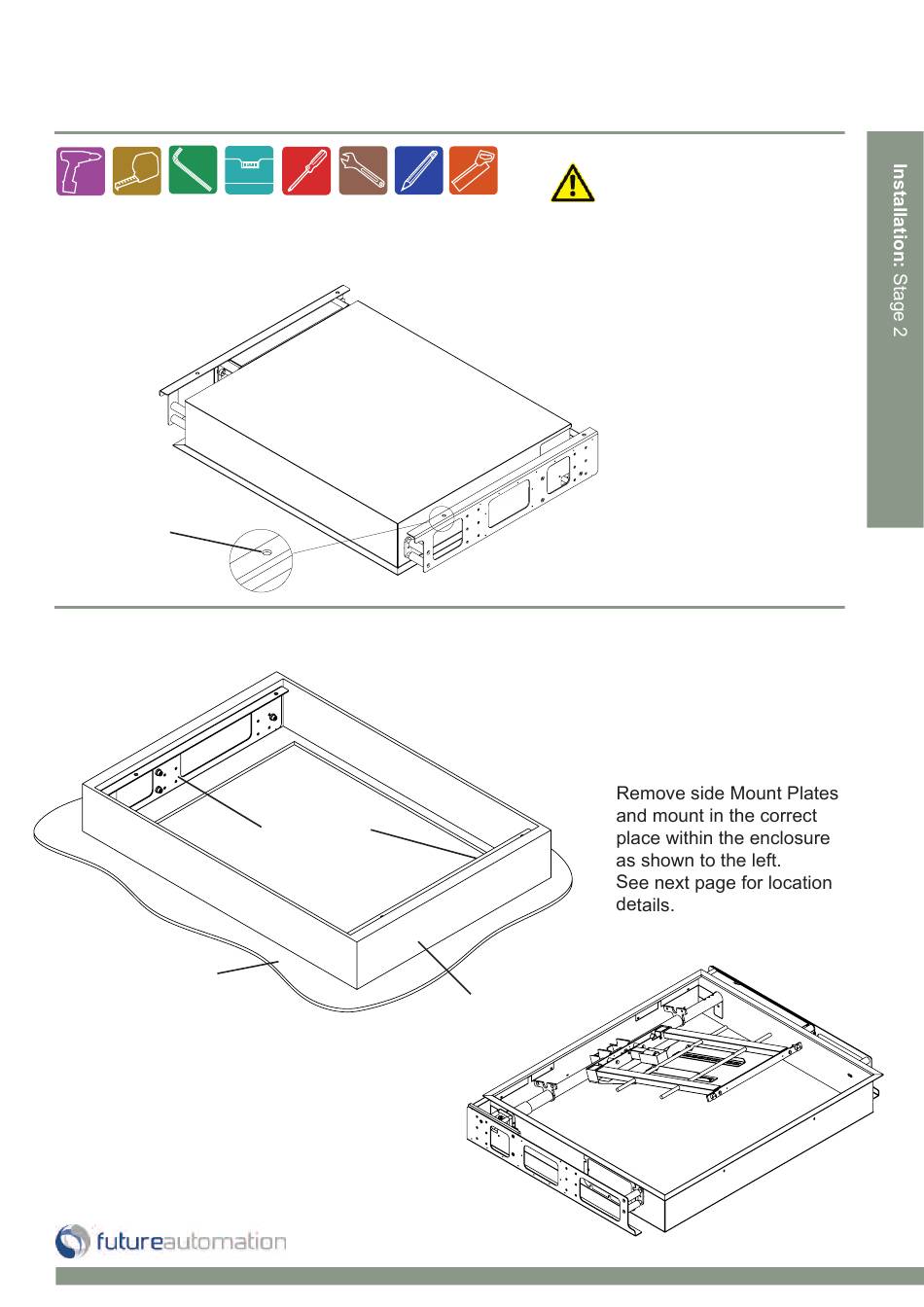

Decide which way to fix the mechanism
Mechanism installation Option 1
Holes for hanging
mechanism
Mechanism installation Option 2
Plaster board
ceiling
Box removal.
Open mechanism to roughly 20 degrees, undo
all the bolts within the box and then slide off.
(See CHS Tech for beam and opening details).
Mount plates
Page 6 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
NOTE:
Generic images for all CH
installations, may differ from
actual model.
One option is to hang the
mechanism from 4 bolts
fixed to the top of the mount
plates. (See CHS Tech for
dimensions)
If option 1 is chosen to mount
the mechanism you can now
turn to installation stage 5 -
Running screen cables.
The second option is to remove the left
and right mount plates and secure them
within the enclosure.
Timber beams
