CHS - Ceiling Hinge & Swivel

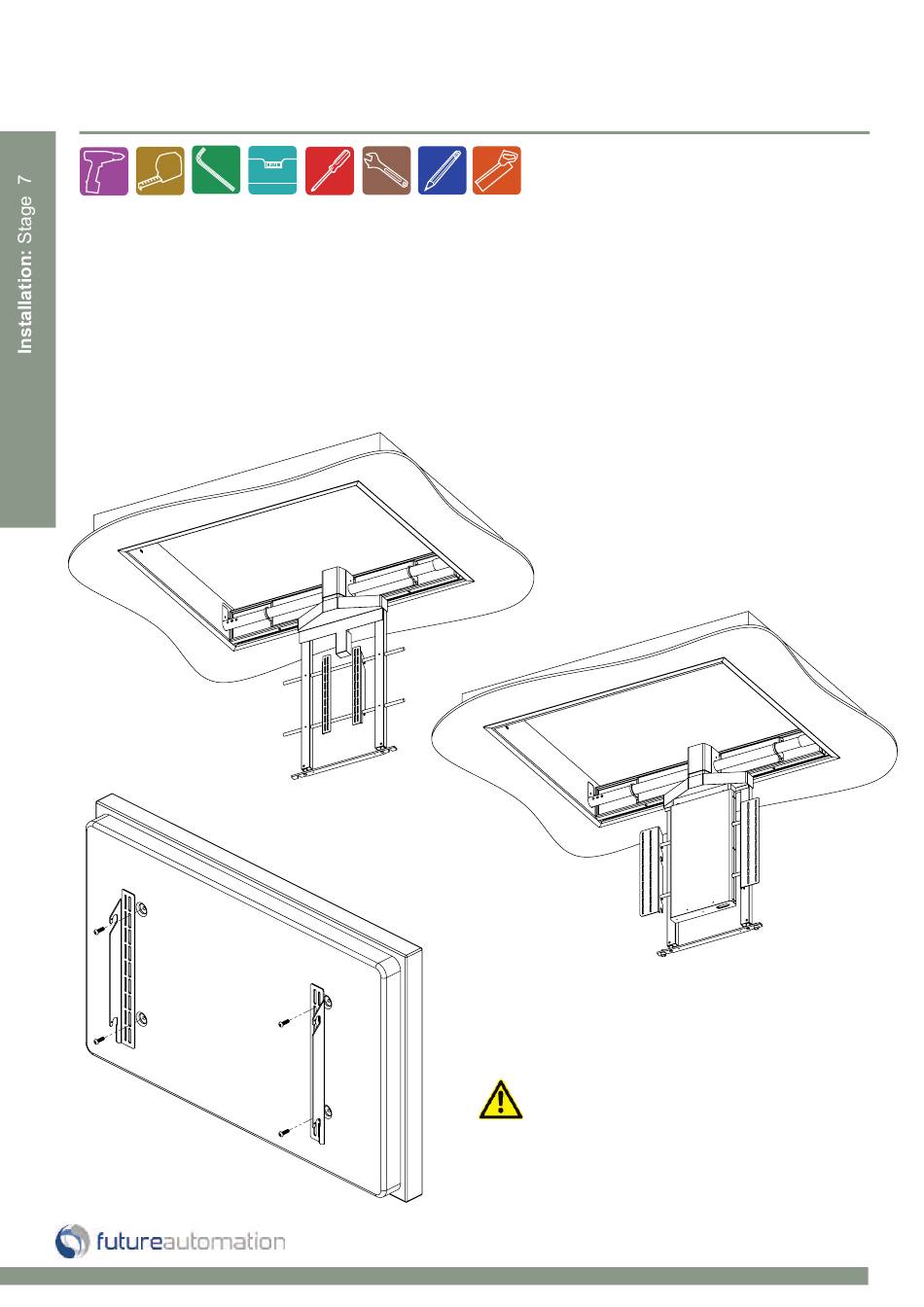

Fixing the screen
Slide the box to the left, hard against the gearbox.
In order to mount the screen, Make sure mechanism is in the OUT position then
remove the slotted hook-on uprights and bolt them both to the back of the screen.
Make sure at this point the back tray is attached at the top of the swivel unit. By
loosening the M8 CSK bolts that attach it, will allow you to adjust the panel and
make it square.
CHST uses different
mount uprights
Page 11 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
The screen can then be hooked on to the
bars and retaining collars can be fitted to
secure the screen.
Operate the mechanism with caution once
the screen is in place. Make sure it can't hit
the edge of the box on the way up. Then
connect the signal cables to the screen.
