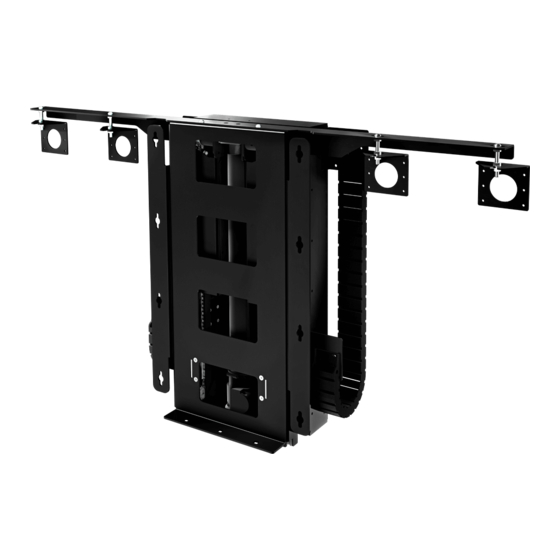

- Page 1 TSLM-3 TELESCOPIC SCREEN LIFT MEDIUM TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181 ISSUE 001 FUTUREAUTOMATION SHEET 1...
-
Page 2: Specification
TSLM-3 TELESCOPIC SCREEN LIFT MEDIUM SPECIFICATION MEASUREMENTS Product Dimensions 892mm (35 1/8") x 1280mm (50 3/8") x 240mm (9 7/16") Minimum Screen Height 850mm (33 7/16") Maximum Screen Height 1175mm (46 1/4") Minimum Screen Width 1280mm (50 3/8") - (Lower Width option available apon request) -
Page 3: General Information
TSLM-3 TELESCOPIC SCREEN LIFT MEDIUM GENERAL INFORMATION VESA 400 wide mounting LID and ENCLOSURE - To be pattern covered. Brackets made by others. Total allowable have full height adjustment . weight for all timber work and the screen 75Kg. The lid must be easily removed if the mechanism was stuck in the down position. - Page 4 TSLM-3 TELESCOPIC SCREEN LIFT MEDIUM 13/16" CABINET SIZING Box Enclosure Cap Height All sizing calculations are based off a 20mm [0.79"] box enclosure panel thickness. Any increases in this thickness will increase the required space. Internal Cabinet Depth = Screen Depth + 230 [9 1/16"] Box Enclosure Depth = Screen Depth + 100 [3 15/16"]...
- Page 5 TSLM-3 TELESCOPIC SCREEN LIFT MEDIUM BOX ENCLOSURE DETAILING 0" Block to locate The Screen, Enclosure, Lid and the Trim in enclosure panel must weigh no more than 75Kg. 1/4" 13/16" Optional ventilation DETAIL E SCALE 1 : 1 Suggested taper detail to...
-
Page 6: Install Instructions
TSLM-3 TELESCOPIC SCREEN LIFT MEDIUM INSTALL INSTRUCTIONS • Check that the cabinet, enclosure, lid and the trim panel are made to the details shown on the previous pages. • You can stand the mechanism up on its base to test it before putting in the cabinet.
