CHS - Ceiling Hinge & Swivel
Running screen cables
The mechanism has cable management through the pivot tube. Screen cables can be run
in at one end of the pivot tube and exit through a slot in its middle to go straight to the back
of the screen being mounted
The control box needs to be stored in an easily accessible location

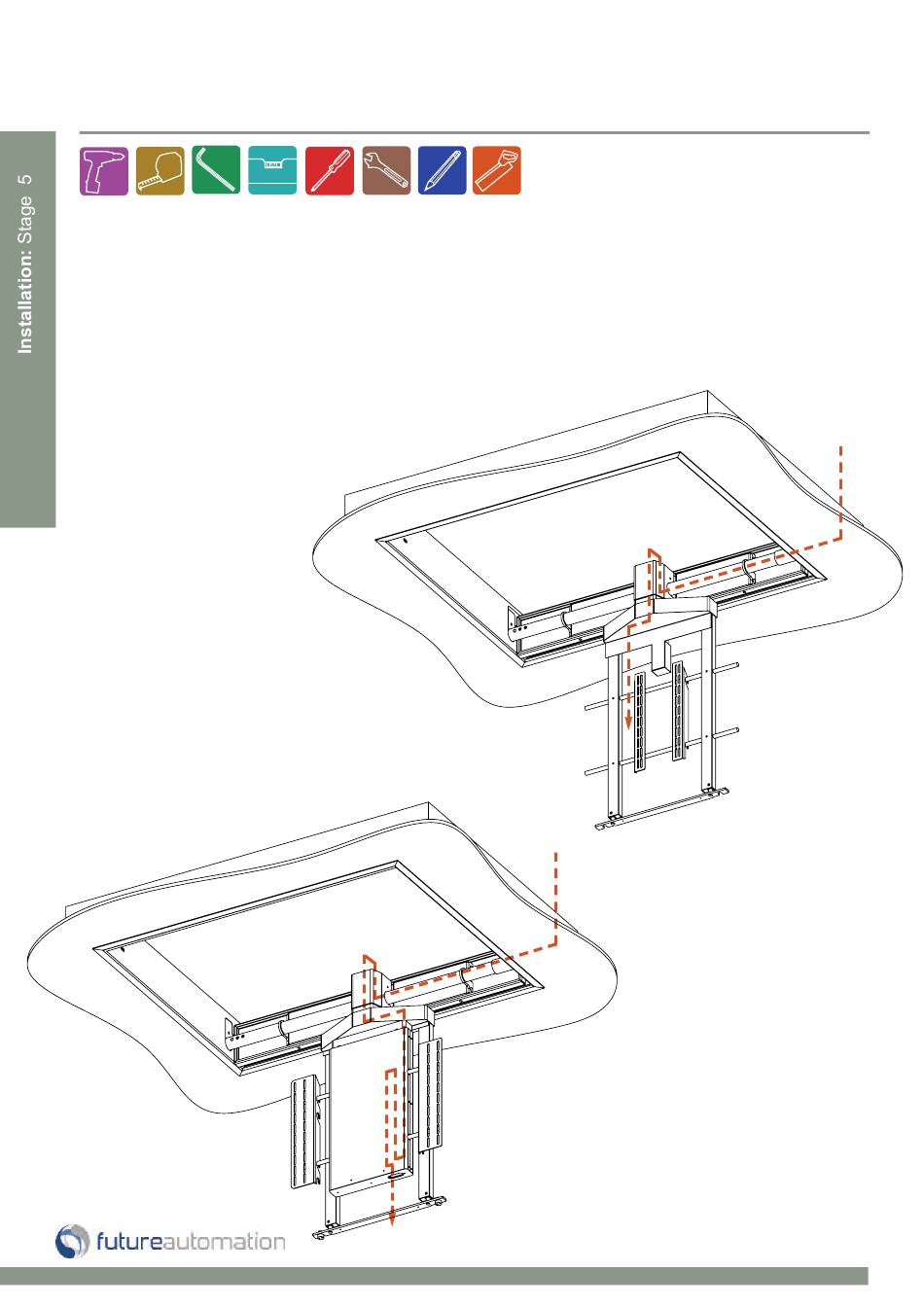

CHS Mechanism
Cable Route
Option 1 installation - Mechanism
will be in the ceiling as shown when
routing the cables.
Option 2 installation - Cable routing
can be done while the mechanism
is out on the floor.
Page 9 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
CHST Mechanism
Cable Route
