Veeder-Root EMR3 Installation Manual page 55

EMR3 Terminal - Fueling Depot Installation
DC Solenoid Wiring
Seal off
DC Solenoid
valve
Rigid conduit
AC Solenoid Wiring
terminalsolenoidwiring.eps
J-Box
White sleeve
(on lead)
Wire nut
Supply
120/240 Vac
L
1
N
Sealoff
AC Solenoid
valve
Rigid conduit

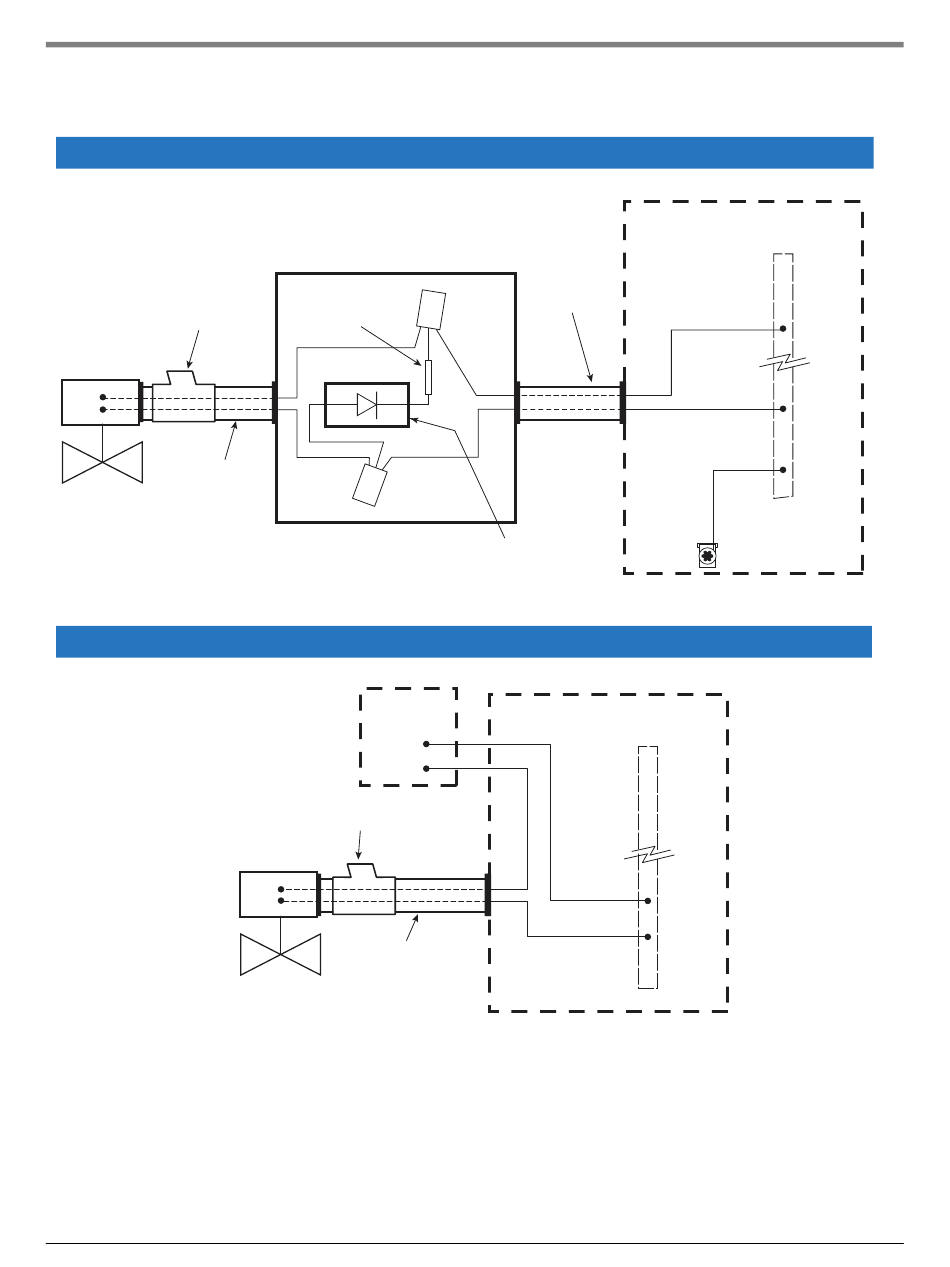

Figure 38. Example wiring connections for dc and ac solenoid valves
Rigid conduit
Wire nut
Suppressor diode
V/R Kit P/N 846000-022
Power side terminals
COM
50
Installing the Interconnection Box
IB Box
Power side terminals
V+
COM
DH1
RELAY 1
NO
Ground
Clamp
IB Box
DH1
RELAY 1
NO
