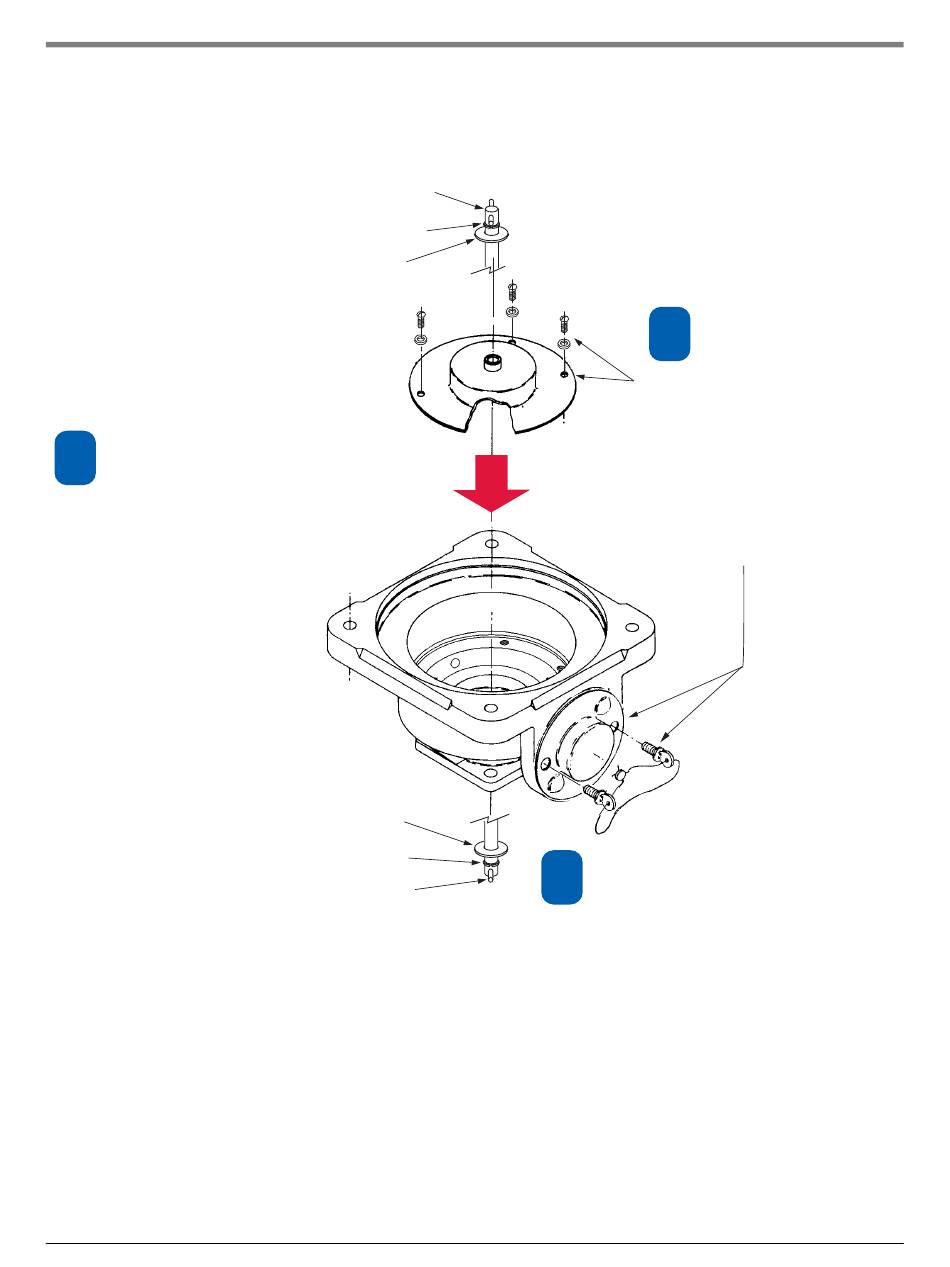

Figure 8. Disassembling The Smith Meter Calibrator - Veeder-Root EMR3 Installation Manual

EMR3 Truck Installation
1
Insert Truarc in "top" groove in
2
shaft (Groove Pin is Factory
installed in "Top" end of Shaft),
Slide on washer, then lower
shaft down through bushings in
top of cover and base of
calibrator.
0510105-140 Groove Pin
emr\tokreasm.eps
0331431-001 Shaft Group
0511810-001 Truarc
011071-325 Washer
0011071-325 Washer
0511810-001 Truarc
Figure 9. Replacing the Tokheim Daniels, & Donovan calibrator
Installation Procedures - Fuel Oil Truck Application
Replace existing cover
with 3 mounting screws
and washers.
Replace existing Dial
cover with 2 Seal screws.
(Reseal with wire and seal
from kit).
Slide on washer then insert
3
Truarc in bottom shaft groove.
Support shaft with a block of
wood and drive bottom groove
pin into hole in bottom end of
shaft
