EMR3 Truck Installation
emr\smith2.eps
0.15
(3.81)
0.09
(2.29)
0.186
(4.72)
mm in parentheses
Calibrator
Spring
assembly
Meter dome adaptor

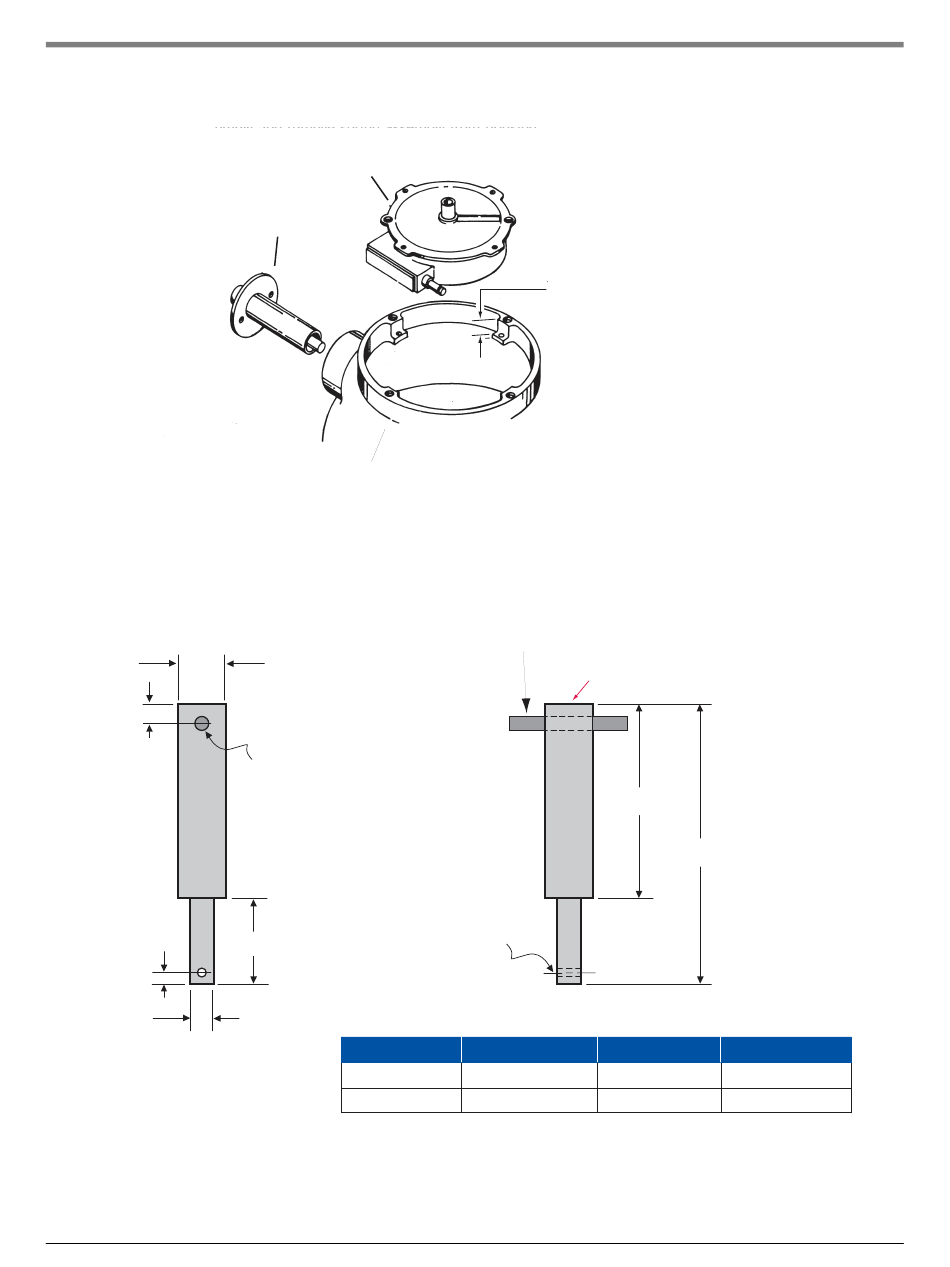

Figure 11. Calibrator, spring assembly, and meter dome adapter
510119-002 Groove Pin
(Factory Installed in "TOP" End)
0.373 (9.47)
7/64 (2.77)
Diameter
through hole
5/64 (1.98)
Diameter
0.68 (17.27)
through hole
Version
Short Shaft
Long Shaft
Figure 12. Adapter shaft and groove pin for Smith meter
Installation Procedures - Fuel Oil Truck Application
If distance from face
to top of calibrator
support flanges = 0.850" (21.59 mm),
use shaft group 331433-002;
if distance = 0.635" (16.13 mm),
use shaft group 331433-001
"TOP"
B
A
2.208 (56.08) 1.528 (38.81)
2.423 (61.54) 1.743 (44.27)
16
emr/smith4.eps
A
B Shaft Group
331433-001
331433-002
