EMR3 Truck Installation
EMR 3
Encoder
Shaft
Vertical
drive
shaft
emr\lc meter adjuster.eps
START
FINISH
VOLUME CURRENCY
Remove two screws to
remove dust plate cover

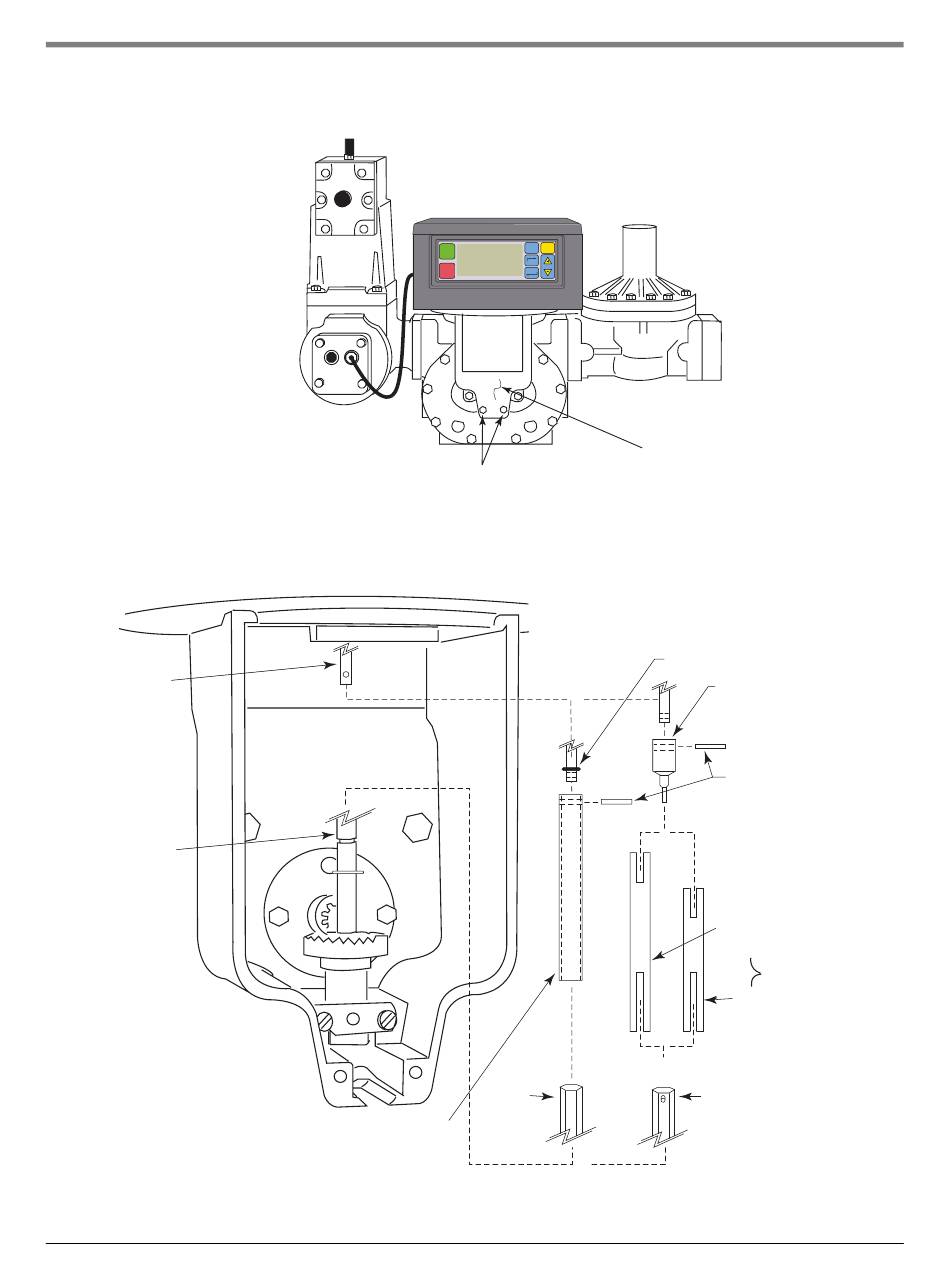

Figure 2. Remove adjustor dust cover plate

Sleeve - coupling shaft
P/N 331955-001
Figure 3. Installing meter encoder adapter coupling
7
Installation Procedures - Fuel Oil Truck Application
emr\lc meter dust plate.eps
MODE PRESET
NEXT
ENTER
RATE SETUP
Cover
O-ring P/N 512700-242
Hex
Drive
Shaft - spade
drive short LC
P/N 328907-001
Groove pin
P/N 510162-001
Coupling shaft
P/N 331413-001
As required
Coupling shaft
P/N 331413-002
Hex Drive
(with protruding
pins opposite
sides)
