EMR3 Terminal - Fueling Depot Installation

Installing the Optional Printer

The Epson U-220A dot matrix roll printer is placed on a desk in the terminal - fueling depot office. A power/data
cable is included in the printer kit. Figure 39 shows the rear panel connections to the printer. The on/off switch is
on the front of the printer.
Figure 39 also illustrates two required and one optional settings of the printer's DIP switches (under side of
printer). Note: all other DIP switch settings are set to Off.
REQUIRED SETTINGS
Set Pole 3 of DIP
switch DSW1 to ON
Set Pole 1 of DIP
switch DSW2 to ON
OPTIONAL SETTING
To enable the
Autocut feature
of the roll printer,
set Pole 2 of DIP
switch DSW2 to ON
Attach the four wires end of the printer power/data cable to the appropriate terminals of the power side terminal
block in the IB (Figure 37). Attach the DB-25 connector and the round power connector on the other end of the
cable to the appropriate connectors on the rear of the printer (Figure 39).
When using a roll printer, you must enter the EMR
roll printer and the System Address>Port 1> to Roll Printer. The default settings for these
two setups are slip printer.

Installing the Remote Display (Optional)

To install the optional Remote Display see "Installing the Remote Display (Optional)" on page 37.
ON
1 2 3 4 5 6 7 8 9 10
ON
1 2 3 4 5 6 7 8 9 10
ON
2 3 4 5 6 7 8 9 10
Underside of printer (access cover removed -
replace cover before operating printer)
Cable from the IB unit
(V-R # 331791-001)
Connect DB-25
data connector
to RS-232 port
RS-232

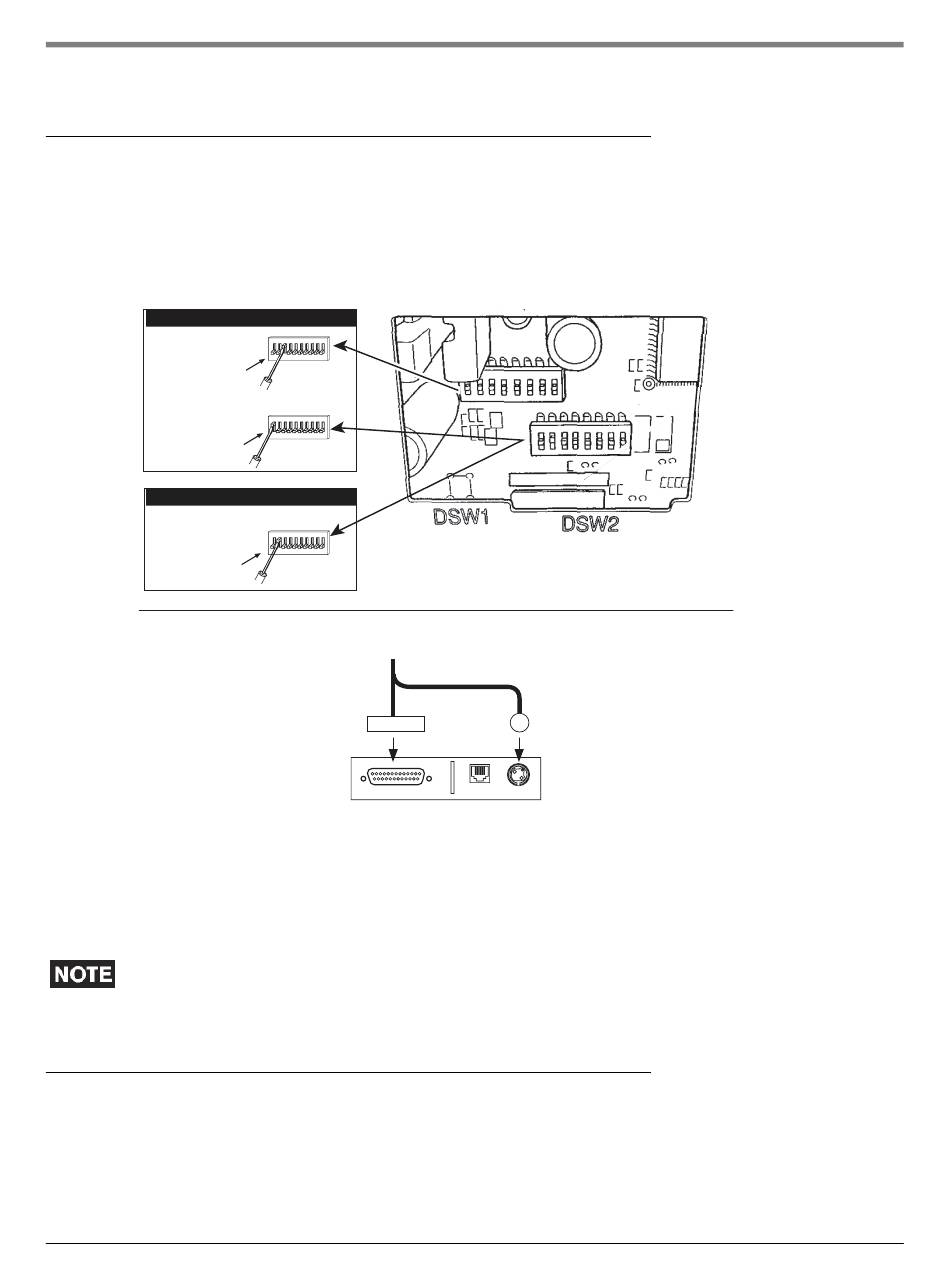

Figure 39. U-220A roll printer
Connect round
power connector
to power port
Cable connections -
beneath printer
DK DC24-30V
3
's setup and set the Printer Option to
51
Installing the Optional Printer
