EMR3 Truck Installation

Installing the Remote Pulser (Optional)

3
The EMR remote pulser consists of a 5 Vdc optical encoder assembled into a stand-alone cast housing. The
Remote Pulser can be mounted to either the top or the front of the meter using one of two available kits. The
Remote Pulser is intended for use with a Remote Display only. The remote pulser operates under the same
specifications as the existing internal pulse encoder.
• The top mount kit (P/N 330020-504) contains the remote pulser, mounting plate and mounting hardware.
• The front mount kit (P/N 330020-505, 330020-506) contains the remote pulser and limited mounting
hardware. The customer or end user will have to supply the mounting scheme to install the remote pulser to the
front of the meter.
.

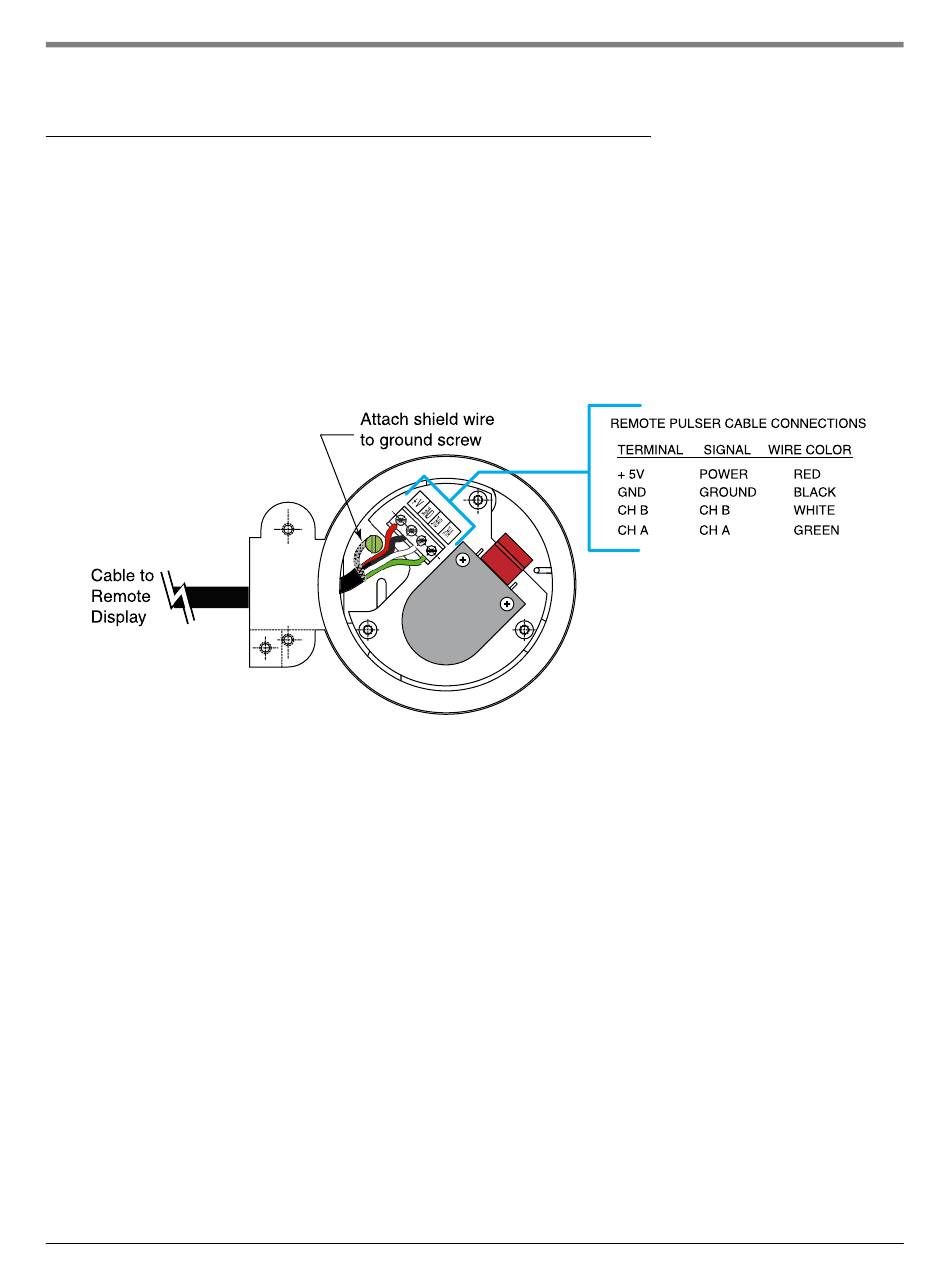

Figure 31. Wiring connections in remote pulser (top cover removed)
40
Installing the Remote Pulser (Optional)
