EMR3 Truck Installation
12. Get the 4" (101.60 mm) long input shaft, the 0.10" and 0.005" thick washers, the retaining ring, the groove
pin, and the coupling from the installation kit. Assemble the new shaft, the 0.10" washer you removed from the
Display Head shaft in the previous step, the 0.005" washer, and the retaining ring in the Display Head base as
shown in Figure 15. If the 0.10 - 0.015" endplay is exceeded, remove the retaining ring and replace the
0.005" washer with the 0.010" washer.
13. With the end play within limits, get the coupling and groove pin from the kit and attach the coupling to the
bottom of the input shaft with the pin as shown in Figure 16.
Input shaft 4" (101.6 mm) long from kit
0.010" (0.25 mm)
Washer -reused
EMR Base
0.005" (0.127 mm) washer
from kit (if necessary use
0.10" washer from kit instead
to get desired end play)
0.10 - 0.15"
(0.25 - 0.38 mm)
endplay

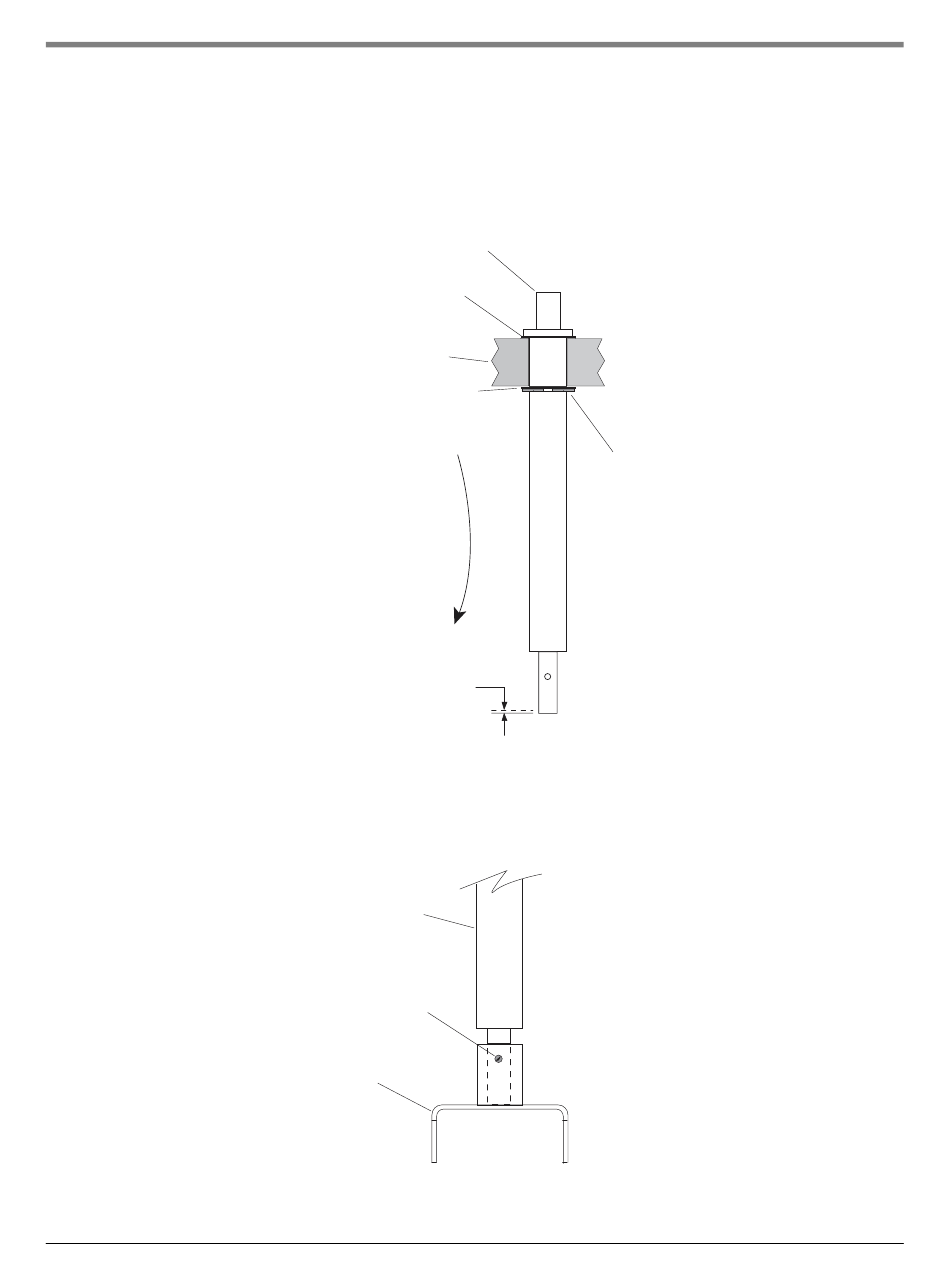

Figure 15. Assembling Neptune adaptor shaft group to Display Head
Input shaft
Groove pin
from kit
Coupling
from kit
Figure 16. Attaching coupling to Neptune adaptor shaft
Retaining ring
from kit
emr/nepshft.eps
emr/nepcou.eps
20
Neptune Flow Meter Installation
