EMR3 Truck Installation
"TOP" End of Shaft Group
(VR#331431-001)
0.126 - 0.128" diameter
through-hole (both ends)

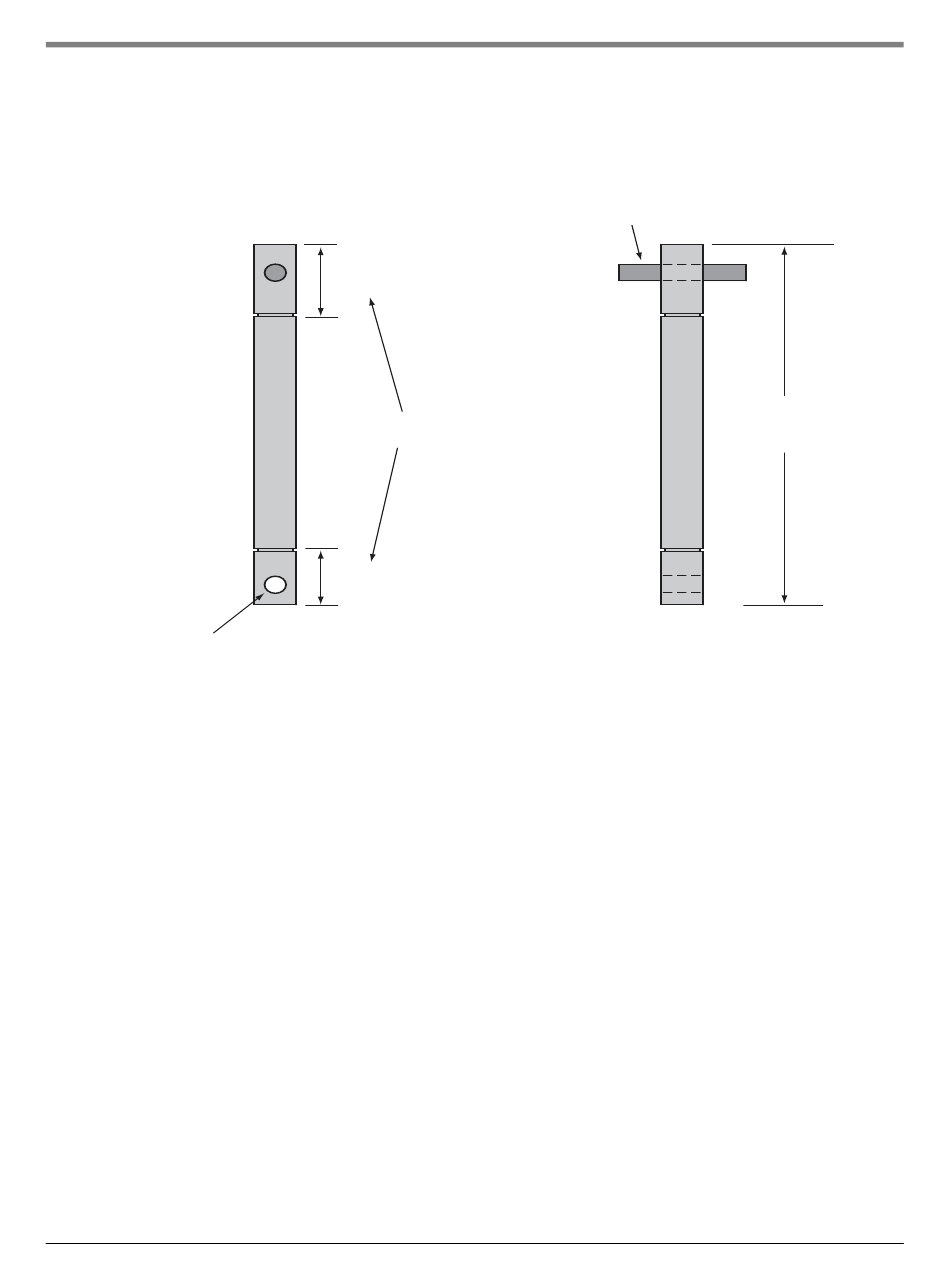

Figure 8. Adapter shaft group and groove pin for Tokheim, Daniels, & Donovan
0.51" (12.96 mm)
NOTE DIFFERENCE!
0.39" ( 9.91 mm)
12
Installation Procedures - Fuel Oil Truck Application
Groove Pin
(VR#510105-140)-
Factory Installed in
"Top" end of shaft
2.615"
(66.42 mm)
emr\tokshft.eps
