Total Control Systems Model 682 Piston Flow Meter Installation; Installation Procedure; Figure 4. Example Of Temperature Probe Installation - Veeder-Root EMR3 Installation Manual

EMR3 Truck Installation
Use this port for Optional
V-R Thermowell

TOTAL CONTROL SYSTEMS MODEL 682 PISTON FLOW METER INSTALLATION

Table 1 lists the Veeder-Root parts needed for this installation.
Table 2.- V-R Parts Required for Display Head-to-TCS 682 Piston Meter Installation

INSTALLATION PROCEDURE

1. The TCS Model 682 Piston Meter installation requires a coupling (V/R Pt No. 065004-005) and pin (V/R Pt
No. 510105-177) be installed on the Display Head input drive shaft.
2. Remove and put aside the four mounting bolts holding the old meter register assembly to the TCS 682 meter
adaptor mounting flange. Remove the existing register.
3. Following the steps in Figure 5, assemble the coupling onto the encoder shaft and lower the Display Head
onto the TCS meter adapter while aligning the slot in the bottom of the coupling with the pin in the shaft in the
top of the adapter.
4. Rotate the Display Head on the meter adaptor mounting flange until the display is facing in the desired
direction and check to see that the meter adaptor flange mounting holes align with the tapped (1/4 - 28 UNF-
START
FINISH
VOLUME

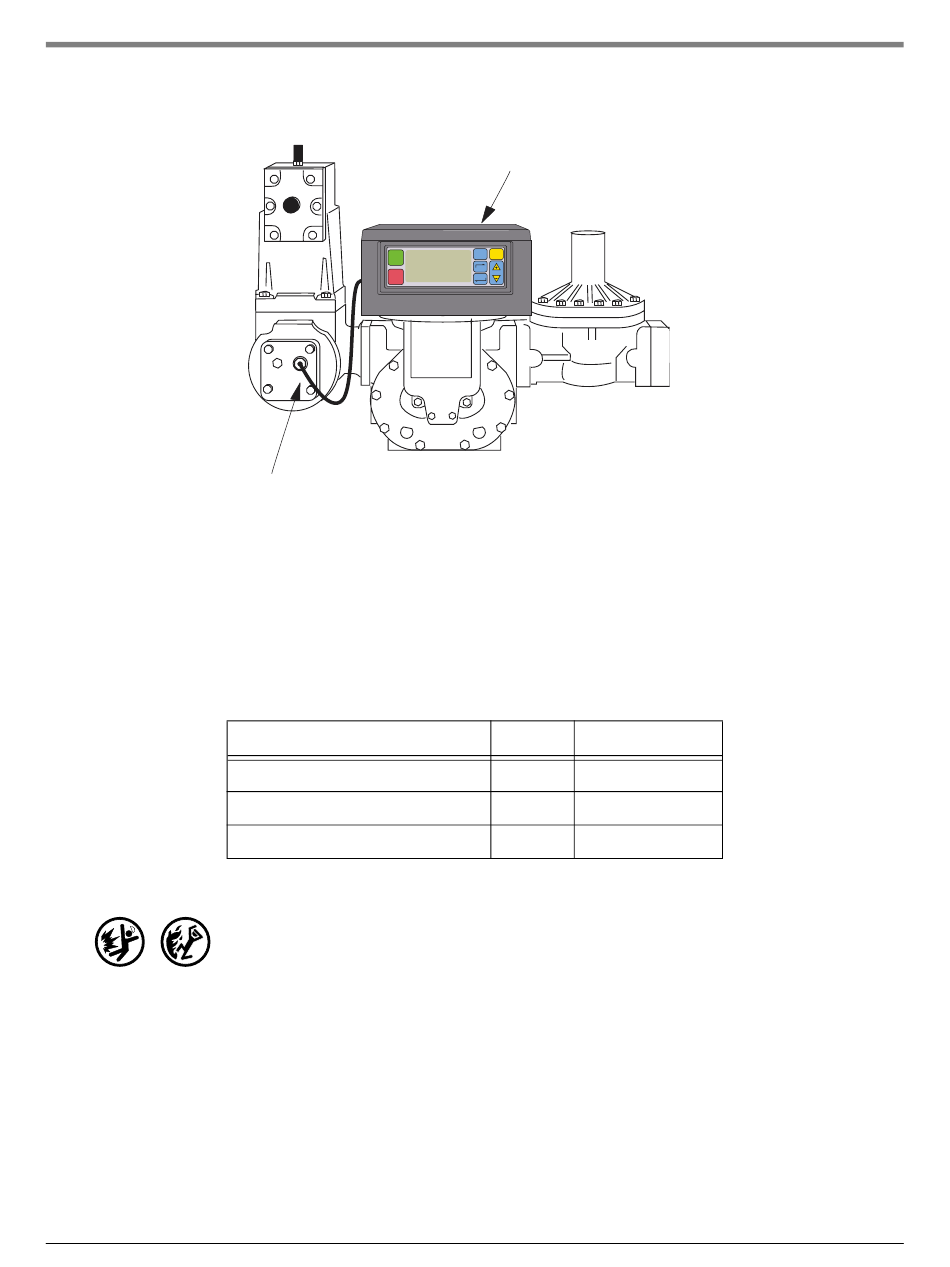

Figure 4. Example of temperature probe installation

Item
Wire - Sealing 24" (610 mm) LG
Coupling
Pin
Installation Procedures - Fuel Oil Truck Application
Display Head
MODE PRESET
NEXT
ENTER
CURRENCY RATE SETUP
emr\therm3.eps
Qty
1
1
1
8
V-R P/N
011853-285
065004-005
510105-177
