Summary of Contents for Veeder-Root EMR4

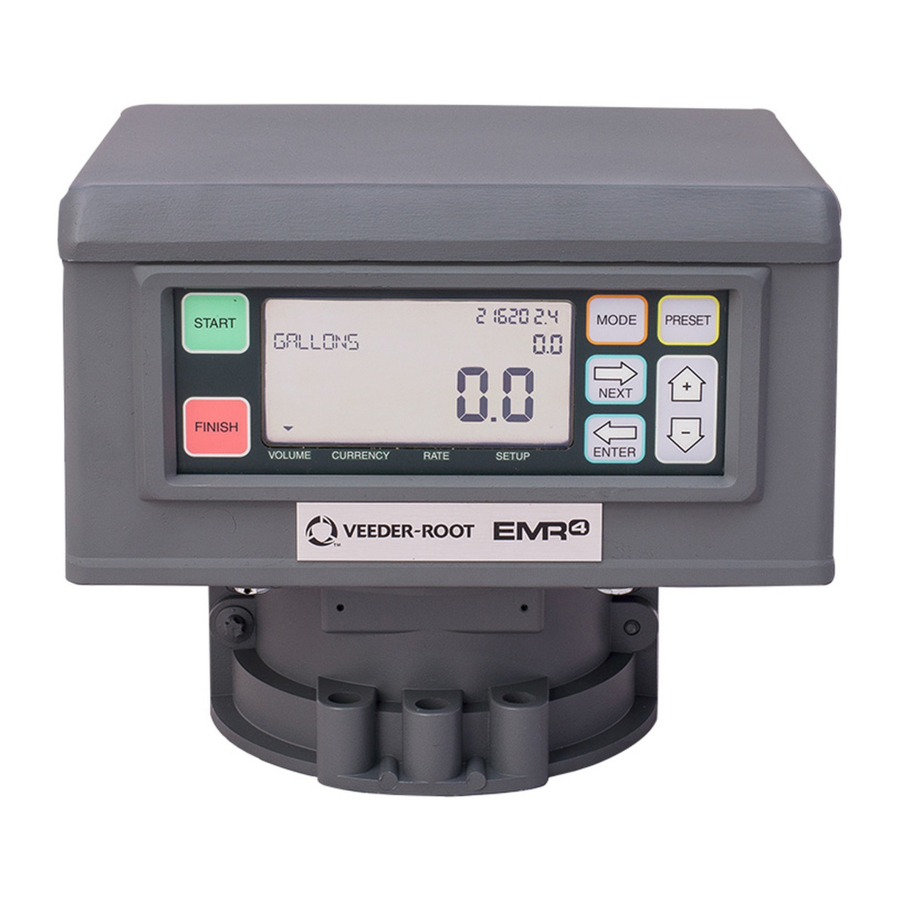

  • Page 1 Revision: B Manual No: 577014-322 ● EMR4 Technical Installation Guide...
  • Page 2 If “lost” equipment is delivered at a later date and is not needed, Veeder-Root will allow a Return to Stock without a restocking fee. Veeder-Root will NOT be responsible for any compensation when a customer chooses their own carrier.

  • Page 3: Table Of Contents

    System Power .........................30 Component Location .......................30 Appendix A: EMR4 Safety Instructions & System Specifications Figures Figure 1. Example EMR4 truck Installation With 2 Display Heads And Optional Remote Pulser ................3 Figure 2. IB Physical Dimensions (Shown With Cover Removed) ......6 Figure 3.
  • Page 4 Example Terminal Fueling Depot Installation With 2 Display Heads And Optional Remote Pulser ..............20 Figure 14. Display Head Cable Connections ............22 Figure 15. EMR4 IB Box Wiring Connections ............24 Figure 16. Example Terminal Wiring Connections For DC And AC Solenoid Valves ................25 Figure 17.

  • Page 5: Safety Information

    Safety Information The following safety symbols may be used throughout this manual to alert you to important safety hazards and precautions EXPLOSIVE FLAMMABLE Fuels and their vapors are extremely explo- Fuels and their vapors are extremely sive if ignited. flammable. TURN POWER OFF WARNING Live power to a device creates a potential...

  • Page 6: Safety Warnings

    • Always disconnect the IB box from truck power before welding on the truck. If the storage tank to be fitted with an EMR4 system either contains or at any time has contained petroleum products then the tank inspection chamber must be considered a hazardous environment as defined in IEC EN 60079-10 Classification of Hazardous Areas.

  • Page 7: Emr4 Truck Installation

    EMR4 Truck Installation Installation of the EMR4 System involves installing the Display Head(s), the Interconnect Box, and any optional devices (e.g., Remote Pulser, printer, etc.). This equipment must be installed according to the applicable installation document. For UL/cUL installations use Control Drawing number 331940-021 and for ATEX installations use Descriptive System Document number 331940-022.

  • Page 8: Installing The Interconnection Box (Ib)

    12.0 volts, between the INPUT-PWR terminal and the GND terminal, is available from the power source. If an improper ground point is used for input power to the EMR4 there may be insufficient power for the Display Head to operate properly resulting in various E## error codes or possibly a blank display.
  • Page 9 Installations With High Amperage Devices NOTICE The input power for an EMR4 must be isolated from devices that use large amounts of electric current such as reel motors. Connect the EMR4 using dedicated wiring between the voltage source and the Interconnect Box. On vehicles with multiple voltage sources it may be necessary to use a separate battery or voltage source to power the EMR4.

  • Page 10: Figure 2. Ib Physical Dimensions (Shown With Cover Removed)

    EMR4 Truck Installation Input Power – Critical Ground Connection - Truck Installations 2X 1.5” (38mm) 1.39” 5.0” (35.3mm) (127mm) USB Port (under cover) 7.8” (198mm) [8.5” (215.9mm) - w/cover in place] SMA Connector 4.04” 2.13” (under cover) (103mm) (54.1mm) 4X 1.5”...

  • Page 11: Figure 3. Emr4 Ib Box Wiring Connections

    WARNING This system operates on low DC voltage/current inputs.To avoid equipment damage, disconnect 5VDC 24VDC the EMR4 input power plug (J8) prior to performing ANY of the following truck mainte- nance issues: 0VDC • Using vehicle battery charging equipment (FACTORY SETTING) •...

  • Page 12: 2-Stage Solenoid Valve Connections

    VALVE OPERATION WITH THE EMR4 Full Flow The valve is normally closed. When the START button is pushed on the EMR4 display, both relays for that head are energized, opening the solenoid-operated valves. The Fast Flow solenoid valve allows the main valve diaphragm to open via the pump pressure pushing on the diaphragm.

  • Page 13: 3-Way Safety Valve For Truck Lp Gas Systems

    3. LPG tanks must be depressurized (drained) and free of liquid and combustible vapors before work begins. 4. Flow control valves connected to the EMR4 must be UL Listed. Also, flow control valves must be suitable for the intended application, i.e., gasoline, fuel oil, LPG and must be rated for use in a Class 1, Division 1, Group C or Group D Hazardous Location.

  • Page 14: Figure 5. Connecting 3-Way Valve To Neptune Meter - Truck Lp Gas Installations

    EMR4 Truck Installation 3-Way Safety Valve for Truck LP Gas Systems - Truck Installations 3. Using the wire nuts, connect the stripped wires from the IB box to the 3-way valve wires (see Figure 5). There is no polarity to the 3-way valve’s wiring. Seal the wire nuts with epoxy sealant using one bag for both wire nut connections and place bag in junction box (see Figure 5).

  • Page 15: Figure 6. Connecting 3-Way Valve To L.c./Tcs Meter - Truck Lp Gas Installations

    EMR4 Truck Installation 3-Way Safety Valve for Truck LP Gas Systems - Truck Installations Connect wires Connect to 758-24.eps Instructions: in IB unit Strainer Cover NOTE: When temperature is below 50°F (10°C), keep resin in a warm place prior to mixing (e.g., in an inside Shielded 2-Wire Cable pocket next to body).

  • Page 16: Solenoid Valves

    EMR4 Truck Installation 3-Way Safety Valve for Truck LP Gas Systems - Truck Installations Suppression Diodes can only be NOTICE Suppressor diode used with DC powered solenoids. V/R Kit P/N 846000-022 Suppressor Diode Ratings: Output Current of 1.0 Amp, Maximum reverse voltage 420 Volts...

  • Page 17: Figure 8. Example Wiring Connections For Dc And Ac Solenoid Valves

    EMR4 Truck Installation 3-Way Safety Valve for Truck LP Gas Systems - Truck Installations DC Solenoid Wiring Suppressor diode NOTICE V/R Kit P/N 846000-022 Suppression Diodes can only be Interconnect Box Suppressor Diode Ratings: used with DC powered solenoids. Power-Side Terminals Output Current of 1.0 Amp,...

  • Page 18: Wiring The Display Head

    EMR4 Truck Installation Wiring The Display Head - Truck Installations Wiring The Display Head 1. With the Display Head cover still off, remove the nut and bushing from the top side panel cord grip connector. Note: the maximum cable length between the Interconnect Box and the Display Head is 1000 feet (304.8 meters).

  • Page 19: Figure 9. Display Head Cable Connections

    EMR4 Truck Installation Wiring The Display Head - Truck Installations C&C Switch - Removal of corner bolt releases actuator lever of C&C Attach optional remote switch allowing entry into C&C Mode pulser, temperature probe, Pulse encoder interlock switch, IB cable and ESS switch cable shields to grounding lug on base.

  • Page 20: C&C Mode Switch

    EMR4 Truck Installation C&C Mode Switch - Truck Installations C&C Mode Switch The C&C corner switch assembly (P/N 845900-018) that fits into one corner of the Display Head’s housing (see Figure9). To enter C&C mode, remove the corner bolt from the Display Head’s cover. To exit C&C mode, replace the bolt.

  • Page 21: Figure 10. Remote Display Assembly

    EMR4 Truck Installation IInstalling The Remote Display (Optional) - Truck Installations #30 Torx screws (4) fasten into back of Adjust mounting strips to desired Remote Display housing indents each side, then tighten nuts Mounting Strips shown in low position (2)
  • Page 22 EMR4 Truck Installation IInstalling The Remote Display (Optional) - Truck Installations Remote Display terminal block Remote Display (rear cover removed) Front panel C&C switch Rear cover of Remote Display Remove a plastic cap from one of the rear access ports to install input cable(s) 9/64”...

  • Page 23: Installing The Remote Pulser (Optional)

    Installing The Remote Pulser (Optional) The EMR4 remote pulser consists of a 5 Vdc optical encoder assembled into a stand-alone cast housing. The Remote Pulser can be mounted to either the top or the front of the meter using one of two available kits. The remote pulser operates under the same specifications as the existing internal pulse encoder.

  • Page 24: Emr4 Terminal & Fueling Depot Installation

    EMR4 Terminal & Fueling Depot Installation Installation of the EMR4 System involves installing the Display Head(s), installing the interconnect box, and installing any optional devices (e.g., remote pulser, printer, etc.). This equipment must be installed according to the applicable installation document. For UL/cUL installations use Control Drawing number 331940-021 and for ATEX installations use Descriptive System Document number 331940-022.

  • Page 25: Wiring The Display Head

    EMR4 Terminal & Fueling Depot Installation Wiring The Display Head - Truck Installations Wiring The Display Head 1. With the Display Head cover still off, remove the nut and bushing from the right side panel cord grip connector. Note: the maximum cable length between the Interconnect Box and the Display Head is 1000 feet (304.8 meters).

  • Page 26: Installing The Interconnect Box (Ib)

    EMR4 Terminal & Fueling Depot Installation Installing The Interconnect Box (IB) - Truck Installations C&C Switch - Removal of corner bolt releases actuator lever of C&C Attach optional remote switch allowing entry into C&C Mode pulser, temperature probe, Pulse encoder...

  • Page 27: Wire Type For Metallic Or Pvc Conduit

    WIRE TYPE FOR METALLIC OR PVC CONDUIT Veeder-Root requires the use of shielded cable when using metallic or PVC conduit in any portion of the wiring between the Display Head and the IB. In these installations, shielded cable must be rated less than 100 picofarad per foot and 0.2 microhenry per foot (per 304.8 mm) and be manufactured with a material suitable for the...
  • Page 28 WARNING This system operates on low DC voltage/current inputs.To avoid equipment damage, disconnect 5VDC 24VDC the EMR4 input power plug (J8) prior to performing ANY of the following truck mainte- nance issues: 0VDC • Using vehicle battery charging equipment (FACTORY SETTING) •...
  • Page 29 EMR4 Terminal & Fueling Depot Installation Installing The Interconnect Box (IB) - Truck Installations DC Solenoid Wiring Suppressor diode NOTICE V/R Kit P/N 846000-022 Suppression Diodes can only be Interconnect Box used with DC powered solenoids. Suppressor Diode Ratings: Power-Side Terminals Output Current of 1.0 Amp,...

  • Page 30: Power Conditioning Requirements

    TDK-Lambda 24 volt power supply - Model No. HWS150A-24/A. To order, visit their website at www.us.tdk- lambda.com/lp/products/hws-series.htm. The power supply must be rated for at least 120 watts or improper operation of the EMR4 NOTICE system will occur. Power supplies are open-type devices and must be mounted in an enclosure suitable for the NOTICE application.
  • Page 31 Ground Pulse out waveform from EMR4 IB <500 feet Setup both the EMR4 and the TLS for the same ratio of pulses to volume. Reference the appropriate setup and operating manuals. Figure 18. Wiring Pulse Output To A TLS-350 Console...
  • Page 32 30 VDC MAX 0 1 AMP MAX “EXTERNAL” position. Setup both the EMR4 and the TLS for the same ratio of pulses to volume. Reference the appropriate setup and operating manuals. Figure 19. Wiring Pulse Output To A TLS-450/TLS4 Console...

  • Page 33: Pulse Output Limits

    1,000 pulses/gallon 45 gpm Limits are dependent on the time it takes the EMR4 to send pulses. In this example, a gallon is used to represent a unit of volume and gpm is gallons-per-minute. The EMR4 has a maximum pulse rate of 750 pulses per second or 45,000 pulses per minute. At high fueling rates, the EMR4 will need extra time to send out all of the required pulses.

  • Page 34: Emr4 System Specifications

    10 - 28 Vdc, fused @ 5 A. Component Location The EMR4 system should be located on a fuel delivery vehicle as shown in Figure 1 or in a fueling depot as shown in Figure 13 on page 20. The equipment is designed to operate safely under the following range of conditions: •...

  • Page 35: Table 4. Remote Pulser Dimensions

    EMR4 System Specifications Component Location To allow for maintenance ensure that the is in an accessible area, even when the unit’s doors are open. EMR4 IB Ensure that all relevant subcontractors and other personnel are aware of the selected location.

  • Page 36: Appendix A: Emr4 Safety Instructions & System Specifications

    3. The EMR4 system does require periodic calibration. Follow the calibration procedures outlined in the Veeder- Root EMR4 Setup and Operation manual (P/N 577014-350). 4. The EMR4 system is not serviceable. If a failure occurs, the unit should be replaced in accordance with the requirements of this manual.
  • Page 37 EMR4 System Specifications COMPONENT LOCATION The EMR4 system should be located on a fuel delivery vehicle as shown in Figure 1 on page 3 or in a fueling depot as shown in Figure 13 on page 20. The equipment is designed to operate safely under the following range of conditions: •...

  • Page 38: Table A-1. System Component Information

    Appendix A: EMR4 Safety Instructions & System Specifications EMR4 System Specifications Consider the ease of routing wiring, ducting and cables to the EMR4 IB Check that the mounting surface material is strong enough to support the EMR4 IB NOTICE If the unit requires cleaning, do not use any liquid materials (e.g. cleaning solvents). It is recommended that the unit be wiped with a clean dry cloth when necessary.
