Veeder-Root Series C628 Technical Manual

Rate meter/elapsed timer
Hide thumbs Also See for Series C628:
Table of Contents

Advertisement

Quick Links

Download this manual
Introduction

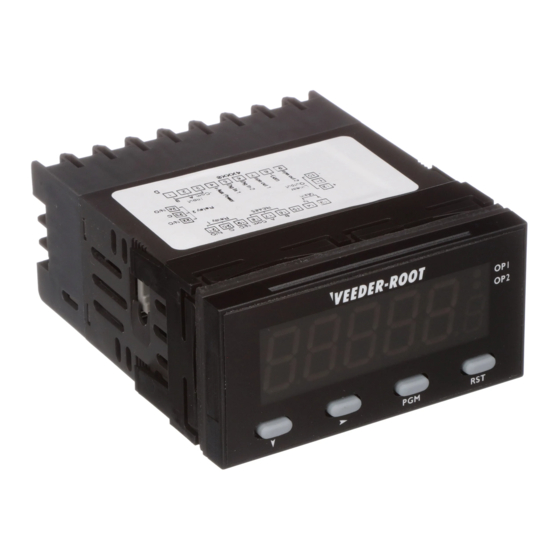

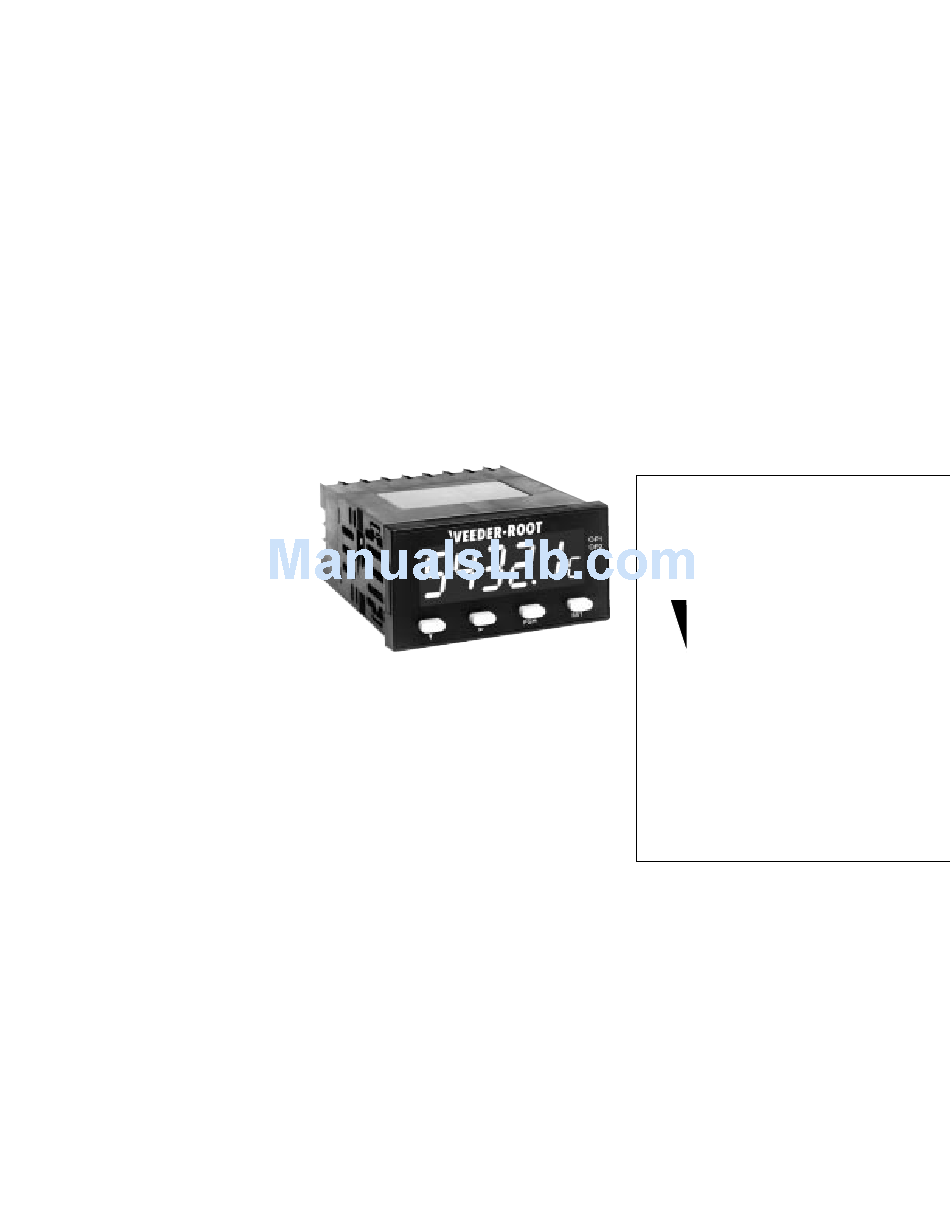

Your Veeder-Root brand C628 Elapsed Timer is one model in a family of 1/8 DIN units
which offers breakthrough display technology as well as easy-to-program single-line
parameters. Designed to provide instant visual feedback regarding an application's key
input value, the C628 not only has a 0.71" high LED display (27% larger than other 1/8
DIN units), but also the ability to change display color based on process status
(programmable parameter in Operation Mode). Easy programming is made possible via a
help function and a secondary legend display.
This manual will guide you through the installation and wiring of your C628 unit with
information on proper panel mounting and rear terminal layout and wiring instructions.
In addition, the instrument's operation and programming modes are thoroughly
explained. The Operation Mode provides day to day operation and allows editing of
preset values. The Program Mode enables the configuration of various parameters prior
to initial operation. These parameters include those for basic configuration as well as
other settable features which will enhance the functionality and usability of the device.
This manual also provides
information on the C628
Elapsed Timer's transistor and
relay outputs, product
specifications, and ordering
and warranty procedures.
Features
• AWESOME 0.71" high digit LED display
• Programmable color change display based on
an event
• Programmable help function and secondary
legend display
• Programmable for single input or cumulative
operation
• Choice of NPN or PNP primary input
• Filter speed settable for 20, 200, or 10,000 Hz
• Standard outputs: one NPN transistor & one
relay
• Front panel reset enable and preset/alarm
lockout
• Optional RS-485 plug in card
• CE approved
www.TheTimerAndCounterCompany.com
Index
Technical Manual
702138-0005
Veeder-Root
Series C628
Elapsed Timer
(C628-6XXX)
page 2
page 3
page 4
page 5
page 6-9
page 10
page 11
page 12
page 12
brand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Series C628 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Veeder-Root Series C628

Summary of Contents for Veeder-Root Series C628

  • Page 1: Table Of Contents

    Introduction Your Veeder-Root brand C628 Elapsed Timer is one model in a family of 1/8 DIN units which offers breakthrough display technology as well as easy-to-program single-line parameters. Designed to provide instant visual feedback regarding an application’s key input value, the C628 not only has a 0.71” high LED display (27% larger than other 1/8 DIN units), but also the ability to change display color based on process status (programmable parameter in Operation Mode).

  • Page 2: Installation

    I N S T A L L A T I O N PANEL MOUNTING 100mm VEEDER-ROOT 82344 48mm 96mm 10mm 92mm +0.5 -0.0 PANEL 45mm CUTOUT +0.5 -0.0 SIZE The instrument can be mounted in a panel with a thickness of up to 6mm. The...

  • Page 3: Wiring

    www.TheTimerAndCounterCompany.com I N S T A L L A T I O N WIRING REAR TERMINAL CONNECTIONS Power Supply RS-485 Comm. Relay 1 + VDC - (opt.) 14 15 Timing Inputs Transistor Outputs Terminal #2 is the connection for Input A, which is the start signal for Your unit comes standard with an NPN output which is activated by the time accumulation.

  • Page 4: Operation

    O P E R A T I O N FRONT PANEL Primary Display VEEDER-ROOT Output Indicator 82345 Secondary Display Down Key Scroll Key Program Key Reset Key Key Functions Display Functions Function Display Function Down In Operation Mode: Used in edit operation to decrement Primary In Operation Mode: Default display is the time value.

  • Page 5: Operation Mode

    O P E R A T I O N OPERATION MODE CHANGING A PARAMETER VALUE Default display is the present time Use the Scroll Key to move from left to VEEDER-ROOT VEEDER-ROOT 34567 23456 value. right and highlight the digit that needs to be changed.

  • Page 6: Programming

    P R O G R A M M I N G PROGRAM MODE ENTERING PROGRAM MODE AND BASIC OPERATION The Program Mode can be accessed from the VEEDER-ROOT 23456 Operation Mode by holding the Program Key for 3 seconds. for 3 seconds...
  • Page 7 www.TheTimerAndCounterCompany.com P R O G R A M M I N G PROGRAM MODE Continued Time Format F o r < > Function: Sets the unit of measure for the time values that will be shown on the display in Operation Mode Adjustment Range: h o u r S E c...
  • Page 8 www.TheTimerAndCounterCompany.com P R O G R A M M I N G PROGRAM MODE Continued Front Panel Reset Enable Function: Determines whether the Front Panel Reset key can be used to reset the time value Adjustment Range: d i S Enable: The time value Disabled: The Front can be reset while being...
  • Page 9 www.TheTimerAndCounterCompany.com P R O G R A M M I N G PROGRAM MODE Continued Display Color Change C o l o r Function: Defines the color of the display for prior to and after the preset value is reached Adjustment Range: G n _ r d r d _ G n...

  • Page 10: Appendix A Specifications

    www.TheTimerAndCounterCompany.com A P P E N D I X SPECIFICATIONS Time Inputs Electrical Type: Sinking/Sourcing or Contact Closure Supply Voltage: 90-264 VAC, 50/60 Hz, or 20-50 VAC/VDC Frequency: 10 kHz max. Power Consumption: 4 Watts Logic: Low < 2.0 VDC, High > 3.0, 30V max. Access.

  • Page 11: General

    www.TheTimerAndCounterCompany.com G E N E R A L NOTES...

  • Page 12: Ordering Information

    www.TheTimerAndCounterCompany.com G E N E R A L ORDERING INFORMATION C628 - 600 Power Supply 0 90-264 VAC 2 20-50 VAC/VDC Serial Communication Option 0 None 5 RS-485 Additional options can be field installed through plug-in boards which can be ordered separately. Description Part # RS-485 Comm.
