Installing The Temperature Probe (Optional); Figure 25. Tm-295 Printer - Veeder-Root EMR3 Installation Manual

EMR3 Truck Installation
.
3-Way Valve Solenoid
Nipple
emr\3waywir.eps

Installing the Temperature Probe (Optional)

1. Locate the thermowell in the metering system (see Figure 26).
Vehicle power
J-Box
Wire nut
White sleeve
(on lead)
Wire nut
Suppressor diode
V/R Kit P/N 846000-022
CAUTION! use of the suppressor diode
is only approved for vehicle applications.

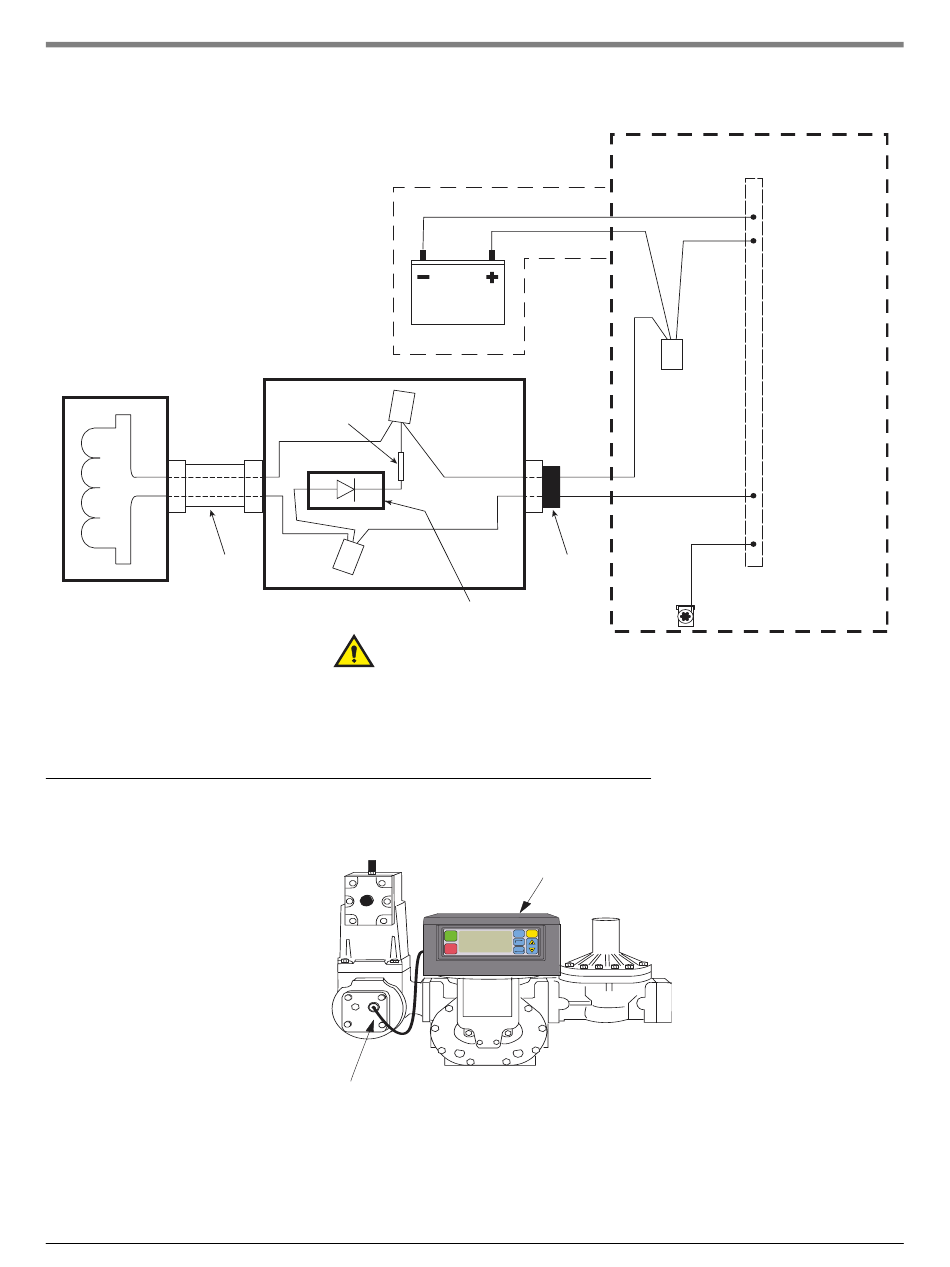

Figure 25. Connecting 3-way valve to the IB box
Use this port for Optional
V-R Thermowell
Figure 26. Example thermowell installation
Cord Grip
Display Head
MODE PRESET
START
NEXT
FINISH
ENTER
VOLUME CURRENCY RATE SETUP
emr\therm3.eps
34
Installing the Temperature Probe (Optional)
Power side
terminals
Ground
V+
Wire Nut
COM
DH1
RELAY 1
NO
Ground
Clamp
IB Box
