Figure 12. Example Of Temperature Probe Installation In Main Case Cover - Veeder-Root EMR3 Installation Manual

EMR3 Truck Installation
emr\smith3.eps
Calibrator cover
Smith drive gear
Lower Group Shaft down through
2
bushings in cover and and in calibrator
case and into bore in Smith drive gear.
Shaft Group 331433-00X
("Top" end with factory
installed groove pin)

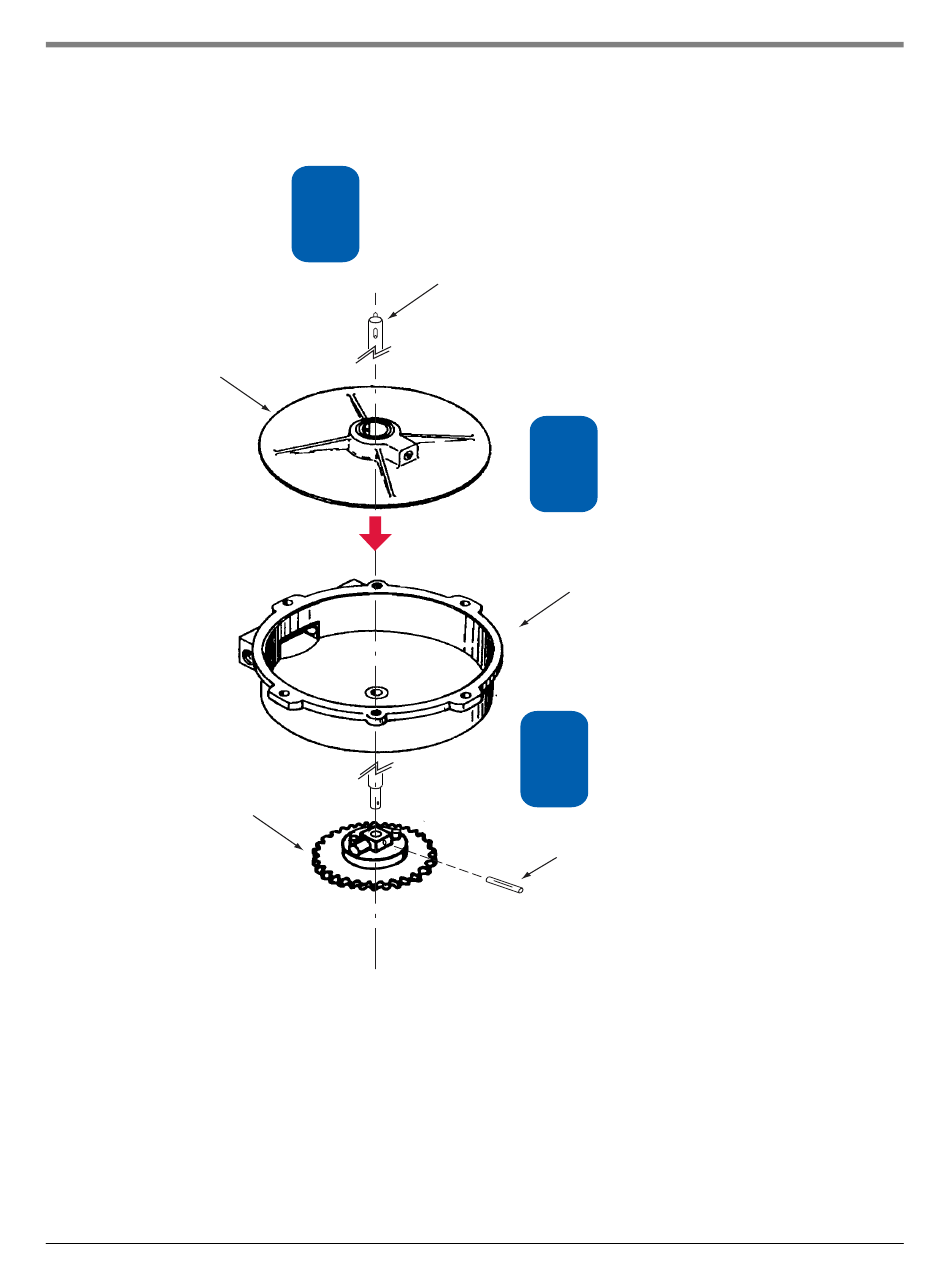

Figure 13. Reassembling the Smith meter calibrator
17
Installation Procedures - Fuel Oil Truck Application
After removing parts
1
inside calibrator, replace
cover.
Calibrator case
Support shaft with block
3
of wood and drive groove
pin through holes in gear
bore and hole in shaft.
510114-001 Groove Pin
