5.5 Profibus

FC 360 frequency converters support profibus. The
profibus module is integrated in the control cassette with
profibus. If profibus is needed,
•
Order a new frequency converter on which the
control cassette with profibus is pre-installed;
•
Order a control cassette with profibus to replace
the standard control cassette on an existing
frequency converter. In this case, upgrade the
firmware with MCT-10 Set-up software.
5 5
In both cases, ensure that 15-43 Software Version is higher
than 1.20.

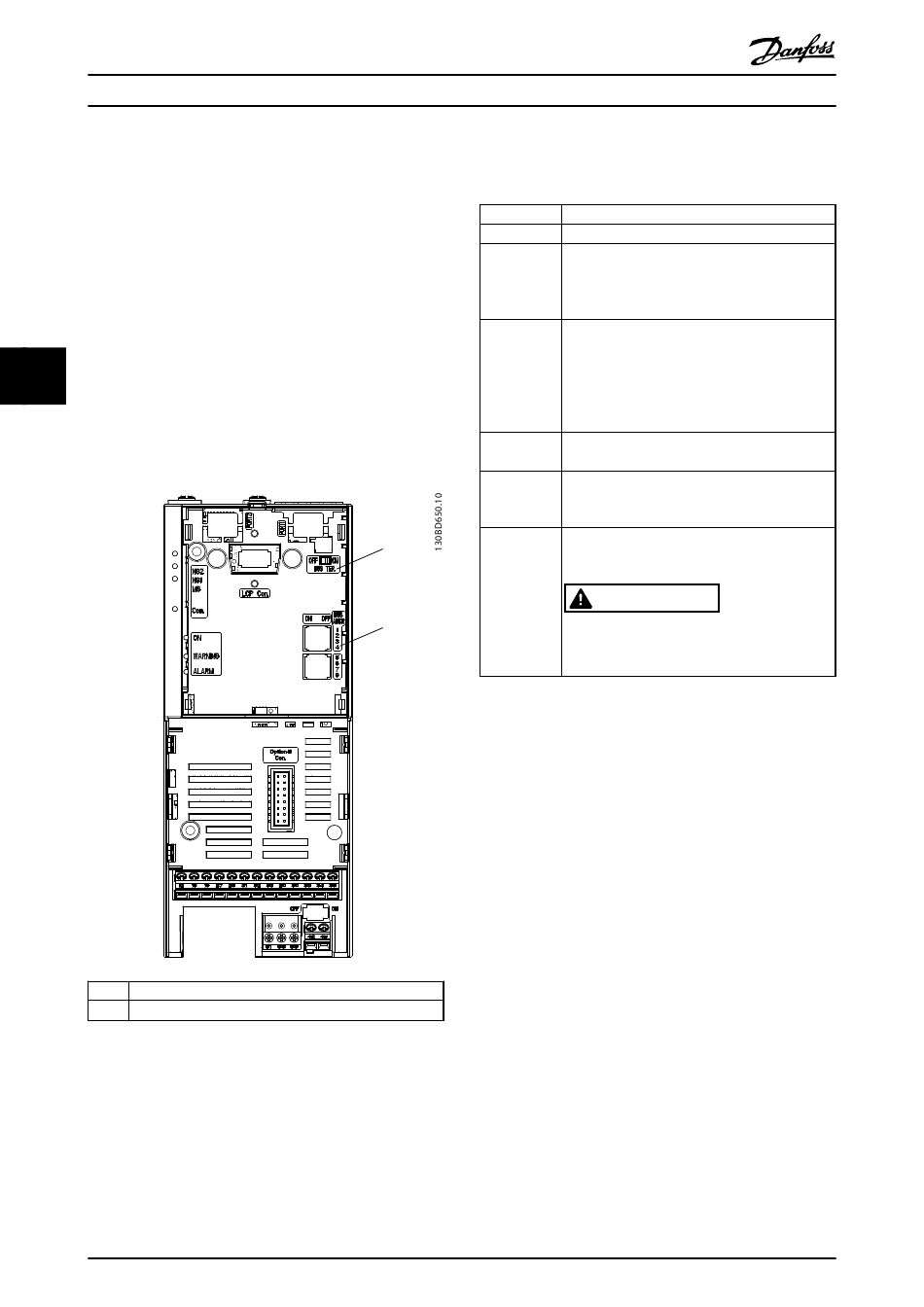

Illustration 5.10 shows the front panel of a control cassette
with profibus.
1 Termination resistor switch
2 Profibus address selector
Illustration 5.10 Front Panel of a Control Cassette with
Profibus
30
Quick Guide
The functions of the LEDs and switches on the front panel
are introduced in Table 5.8.
LED/Switch
NS2
NS1
MS
COM
Termination
resistor
switch
Profibus
1
address
selector
2
Table 5.8 Functions of LEDs and Switches
The profibus decoupling kit contains parts that are
required for profibus to work. Mount the kit before using
profibus. Illustration 5.11 and Illustration 5.12 show how to
mount the decoupling kit.
Danfoss A/S © Rev. 06/2014 All rights reserved.
Description
Not used for profibus
Indicates the network status when communi-
cating with the profibus master. When this light
shows constant green, data exchange between
the master and the frequency converter is active.
Indicates the module status, which is acyclic DP
V1 communication from either a profibus master
class 1 (PLC) or a master class 2 (MCT 10, FDT
tool). When this light shows constant green, then
DP V1 communication from master classes 1 and
2 is active.
Communication status for RS-485. Not used for
profibus.
When the switch is turned on, the termination
resistor is in effect.
Use the switches in the selector to set the
profibus address. The address change comes into
effect at the next power-up.
WARNING
Switch off the power supply before
changing the switches.
MG06A502
