Danfoss VLT AutomationDrive FC 360 Quick Manual page 28

Local Control Panel and Pro...
1 [OK]: The first parameter in the group is shown.
▼
2
Press [ ] repeatedly to move down to the desired
parameter.
3 Press [OK] to start editing.
4 [►]: First digit flashing (can be edited).
5
[►]: Second digit flashing (can be edited).
6
[►]: Third digit flashing (can be edited).
▼
7
[ ]: Decreases the parameter value, the decimal point
changes automatically
▲
8
[ ]: Increases the parameter value.
9 [Back]: Cancel changes, return to 2)
5 5
[OK]: Accept changes, return to 2)
▲ ▼
10
[ ][ ]: Select parameter within the group.
11 [Back]: Removes the value and shows the parameter group.
▲ ▼
12
[ ][ ]: Select group.
Table 5.4 Changing Values in Continuous Parameters
For enumerated parameters, the interaction is similar but
the parameter value is shown in brackets, because of the
LCP 21 digits limitation (4 large digits) and the enum can
be greater than 99. When the enum value is greater than
99, the LCP 21 can only display the first part of the
bracket.
1
OK
2
OK

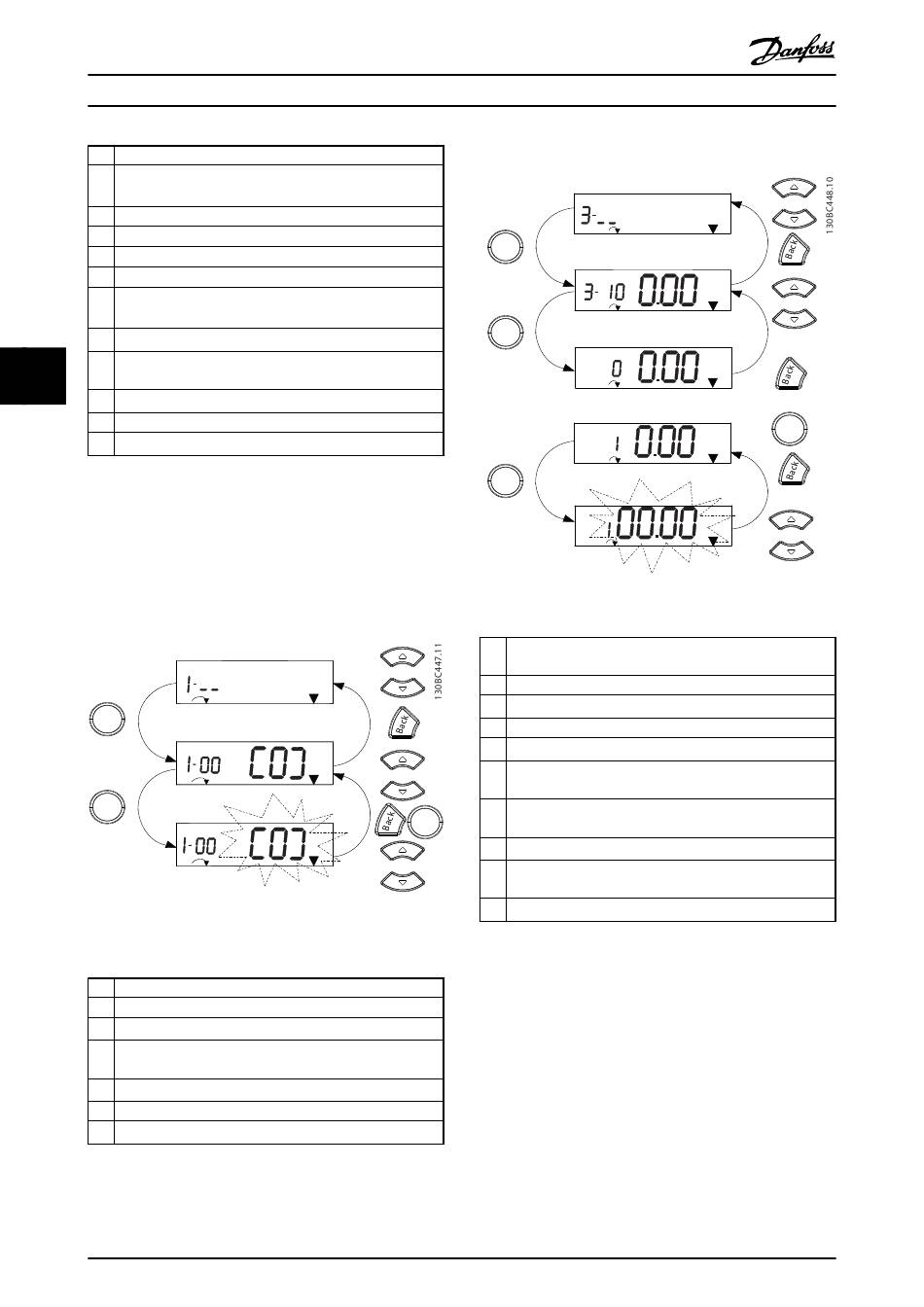

Illustration 5.7 Main Menu Interactions - Enumerated
Parameters
1 [OK]: The first parameter in the group is shown.
2 Press [OK] to start editing.
▲ ▼
3
[ ][ ]: Change parameter value (flashing).
4 Press [Back] to cancel changes or [OK] to accept changes
(return to screen 2).
▲ ▼
5
[ ][ ]: Select a parameter within the group.
6 [Back]: Removes the value and shows the parameter group.
▲ ▼
7
[ ][ ]: Select a group.
Table 5.5 Changing Values in Enumerated Parameters
26
Quick Guide
Setup 1
Setup 1
Setup 1
Danfoss A/S © Rev. 06/2014 All rights reserved.
Array parameters function as follows:
5 x
1
OK
2
OK
OK 4
Illustration 5.8 Main Menu Interactions - Array Parameters
1 [OK]: Shows parameter numbers and the value in the first
index.
7
2 [OK]: Index can be selected.
▲ ▼
3
[ ][
6 4 [OK]: Value can be edited.
▲ ▼
5
[ ][
5 6 [Back]: Cancels changes
[OK]: Accepts changes
7 [Back]: Cancels editing index, a new parameter can be
4
OK
selected.
▲ ▼
8
[ ][
3
9 [Back]: Removes parameter index value and shows the
parameter group.
▲ ▼
10
[ ][
Table 5.6 Changing Values in Array Parameters
Setup 1
Setup 1
INDEX
Setup 1
INDEX
Setup 1
INDEX
Setup 1
INDEX
]: Select index.
]: Change parameter value (flashing).
]: Select parameter within the group.
]: Select group.
10
9
8
%
% 7
OK
%
6
%
5
MG06A502
