Installation
input, motor, and grounding for enclosure type J7. Actual
configurations vary with unit types and optional
equipment.

4.2.4 Control Wiring

Access
•
Remove the cover plate with a screwdriver. See
4 4
Illustration 4.6.

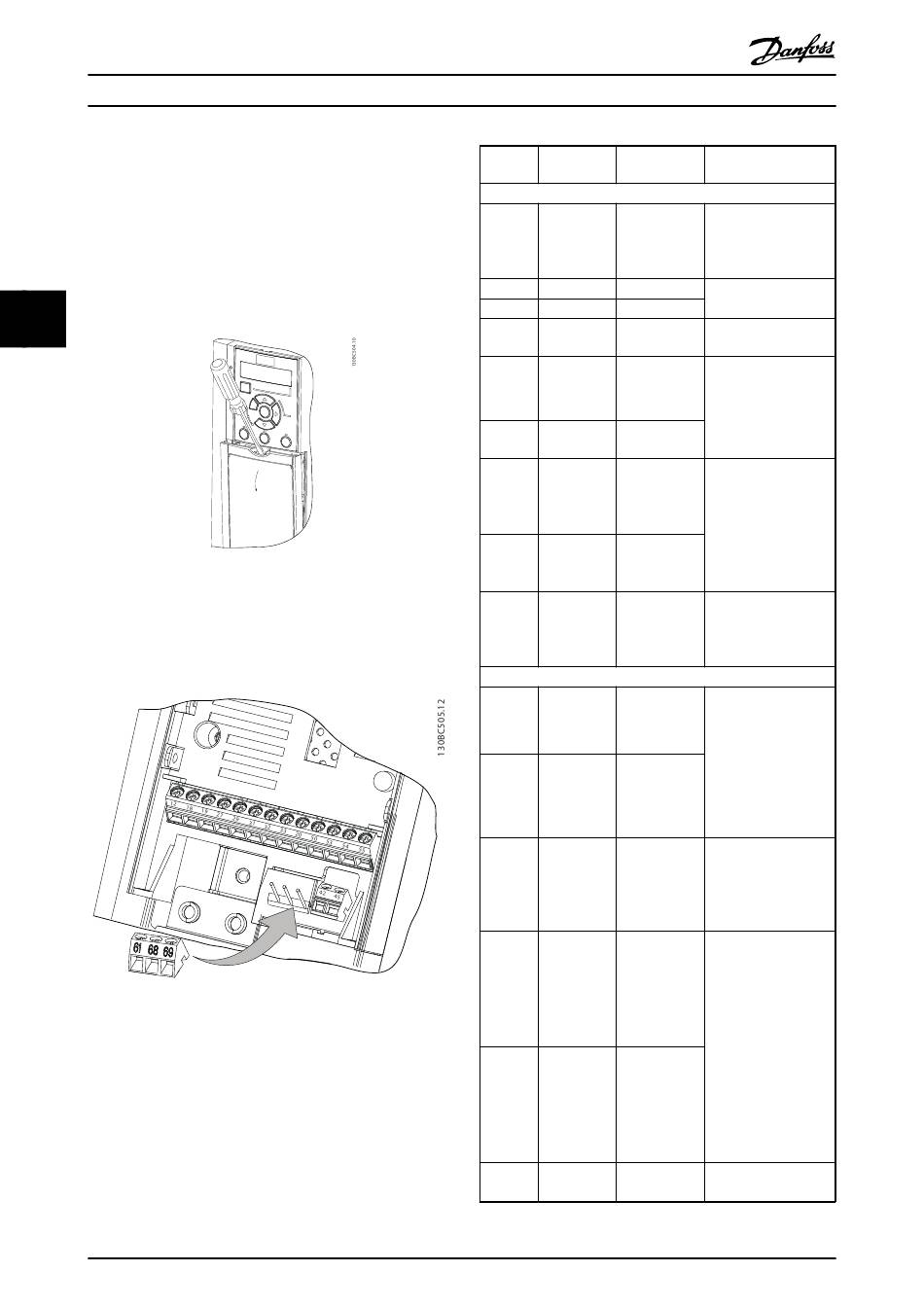

Illustration 4.6 Control Wiring Access for J1–J7 Enclosures
Control Terminal Types
Illustration 4.7 shows the frequency converter control
terminals. Terminal functions and default settings are
summarised in Table 4.2.
Illustration 4.7 Control Terminal Locations
See chapter 8.2 General Technical Data for terminal ratings
details.
20
Quick Guide
Terminal
Danfoss A/S © Rev. 06/2014 All rights reserved.
Para- Default
meter setting
Digital I/O, Pulse I/O, Encoder
12 – +24 V DC
18 5-10 [8] Start
19 5-11 [10] Reversing
[0] No
31 5-16
operation
[0] No
32 5-14
operation
[0] No
33 5-15
operation
DI [2] Coast
5-12 inverse
27
5-30 DO [0] No
operation
DI [14] Jog
5-13
29 DO [0] No
5-31
operation
20 –
Analog inputs/outputs
[0] No
42 6-91
operation
[0] No
45 6-71
operation
50 – +10 V DC
53 6-1* Reference
54 6-2* Feedback
55 –
Description
24 V DC supply
voltage. Maximum
output current is 100
mA for all 24 V loads.
Digital inputs.
Digital input
Digital input, 24 V
encoder. Terminal 33
can be used for pulse
input.
Selectable for either
digital input, digital
output or pulse
output. Default setting
is digital input.
Terminal 29 can be
used for pulse input.
Common for digital
inputs and 0 V
potential for 24 V
supply.
Programmable analog
output. The analog
signal is 0-20 mA or
4-20 mA at a
maximum of 500 Ω.
Can also be
configured as digital
outputs
10 V DC analog supply
voltage. 15 mA
maximum commonly
used for potenti-
ometer or thermistor.
Analog input.
Selectable for voltage
or current.
Common for analog
input
