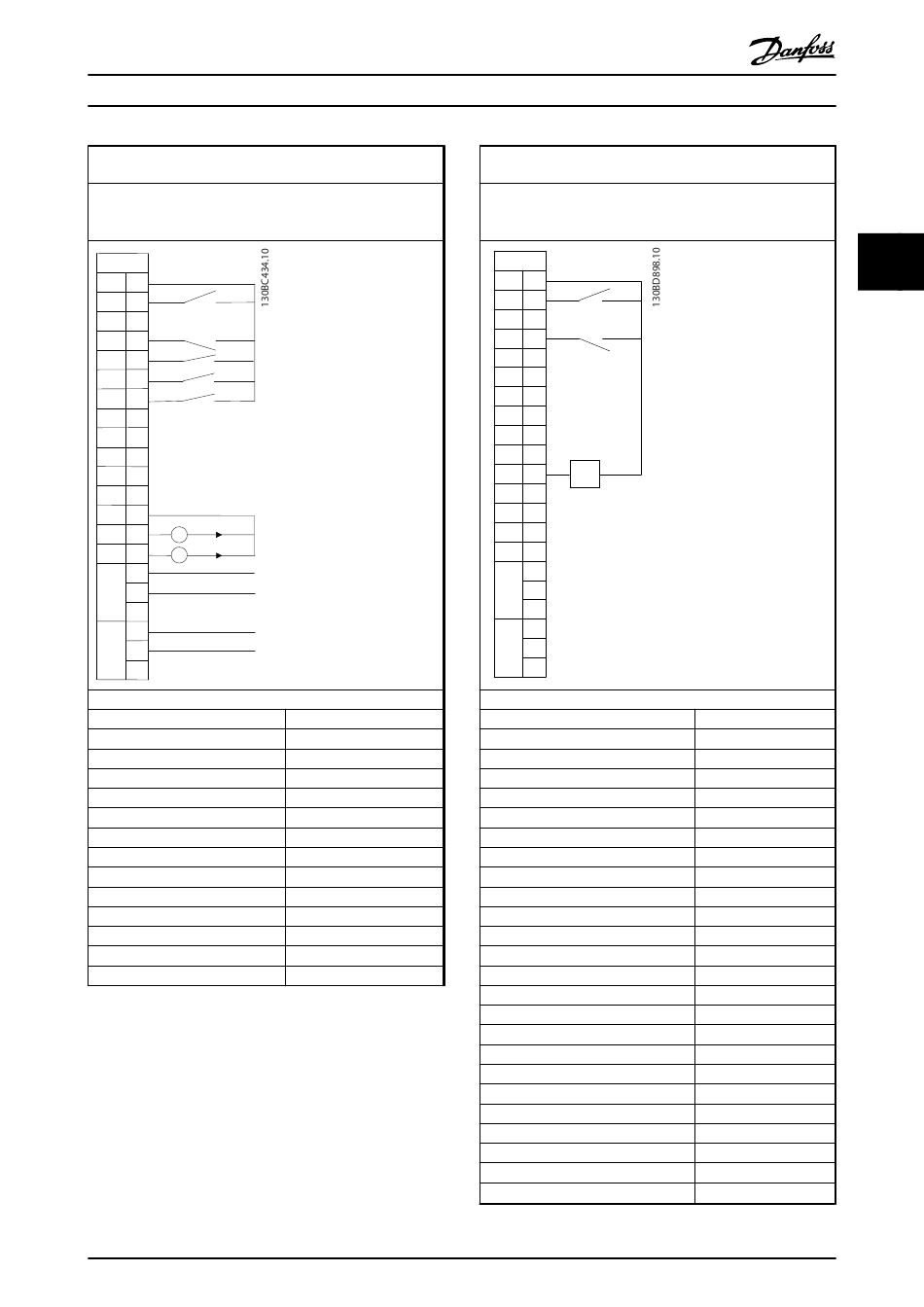

Danfoss VLT AutomationDrive FC 360 Quick Manual page 15

Quick Start
Application
Industrial washing machines, conveyors
Description
For applications with 8 different speeds by digital input. By
using another digital input, 16 speeds are possible.
FC 360
+24V 12
DI1 18
Start
DI2 19
Coast inverse
DI3 27
DI4 29
Pre set ref bit 0
DI5 32
Pre set ref bit 1
DI6 33
Pre set ref bit 2
DI7 31
COM 20
+10V 50
AI1 53
AI2 54
COM 55
45
AO1
AO2 42
1
R1 2
3
4
R2 5
6
Parameter settings
Parameter
1-00 Configuration Mode
3-00 Reference Range
3-15 Reference 1 Source
4-14 Motor Speed High Limit [Hz]
5-10 Terminal 18 Digital Input
5-12 Terminal 27 Digital Input
5-13 Terminal 29 Digital Input
5-14 Terminal 32 Digital Input
5-15 Terminal 33 Digital Input
6-70 Terminal 45 Mode
6-71 Terminal 45 Analog Output
6-90 Terminal 42 Mode
6-91 Terminal 42 Analog Output
Table 3.6 Multi-speed
MG06A502
Quick Guide
Option/value
[0] Speed Open Loop
[0] Min–Max
[0] No Function
50.0 Hz
[8] Start
[2] Coast Inverse
[16] Preset ref bit 0
[17] Preset ref bit 1
[18] Preset ref bit 2
[0] 0–20 mA
[100] Output frequency
[0] 0–20 mA
[103] Motor Current
Danfoss A/S © Rev. 06/2014 All rights reserved.
Application
One Gear Drive (OGD)
Description
For applications that use OGD. For example, conveyors in food
and beverage industries.
FC 360
+24V 12
DI1 18
Start
DI2 19
DI3 27
Coast inverse
DI4 29
DI5 32
DI6 33
DI7 31
COM 20
+10V 50
4-20
AI1 53
mA
- +
54
AI2
COM 55
45
AO1
AO2 42
1
R1 2
3
4
R2 5
6
Parameter settings
Parameter
1-00 Configuration Mode
1-01 Motor Control Principle
1-08 Motor Control Bandwidth
1-10 Motor Construction
1-14 Damping Gain
1-15 Low Speed Filter Time Const.
1-16 High Speed Filter Time Const.
1-17 Voltage filter time const.
1-24 Motor Current
1-25 Motor Nominal Speed
1-26 Motor Cont. Rated Torque
1-29 Automatic Motor Adaptation (AMA) [0] Off
1-30 Stator Resistance (Rs)
1-37 d-axis Inductance (Ld)
1-39 Motor Poles
1-40 Back EMF at 1000 RPM
1-42 Motor Cable Length
1-66 Min. Current at Low Speed
1-73 Flying Start
2-06 Parking Current
2-07 Parking Time
2-10 Brake Function
3-03 Maximum Reference
4-14 Motor Speed High Limit [Hz]
3
Option/value
[0] Open Loop
[1] VVC+
high
[1] PM, non-salient SPM
120
0.175
0.175
0.035
7.2
3000
12.6
0.5
5
10
120
50 m
50
[2] Enable always
80
0.5
[0] Off
250 Hz
250 Hz
13
3
